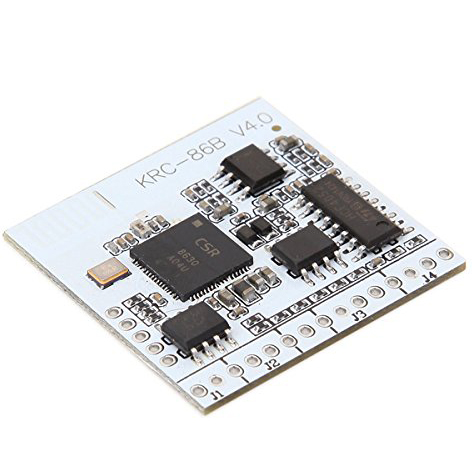

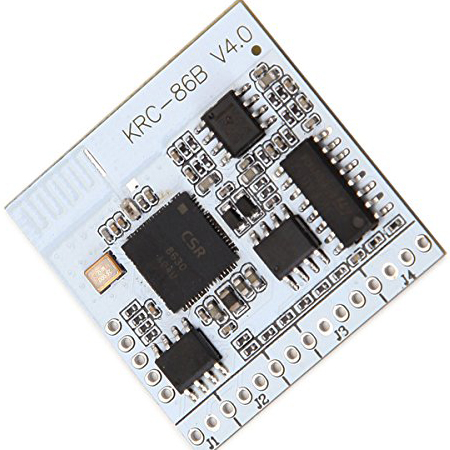

KRC-86B Bluetooth 4.0 Stereo Audio Receiver Module

Product description
KRC-86B Bluetooth 4.0 Stereo Audio Receiver Module

Description:

Using CSR8630 Bluetooth chip that supports A2DP, AVRCP,Bluetooth version:V4.0+EDR
Automatic control technology, simple operation, easy to useIf the connection button, you can control your phone or computer to play / pause, volume change
It supports two devices simultaneously connected
Support power offautomatic connection function

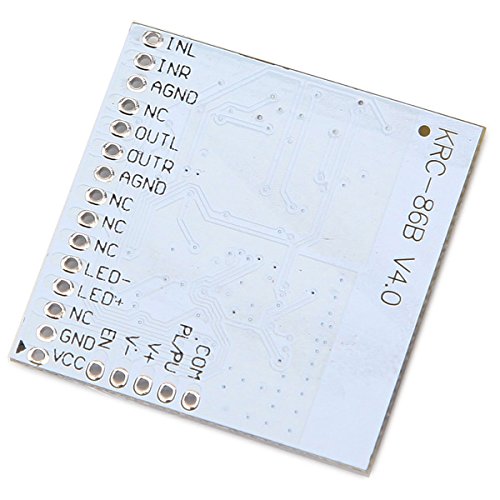

Function:

VCC:Positive power supply 3V-5V
GND:Negative oneLED+:Connected diode anode
LED-:Connected diode cathode
AGND: connected to an audio signal Cathode
OUTR:Right Output
OUTL:Left Output
INR:AUX right input
INL:AUX left input
com: button common terminal
Play / Stop: Play / Pause
VOL + / NEXT: short press next song, long press volume up
VOL - / REV: short press last song, long press volume down
EN: Bluetooth connection is high level (3.3V), disconnect the Bluetooth low level
NC: Function Reserved

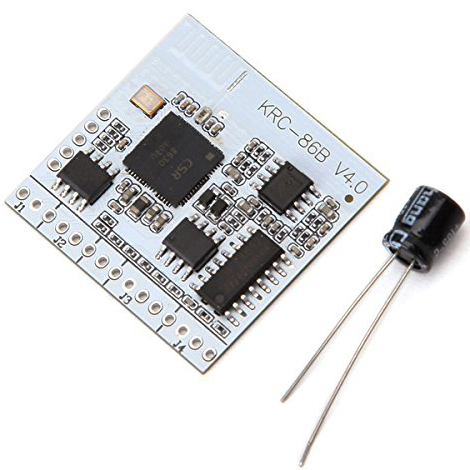

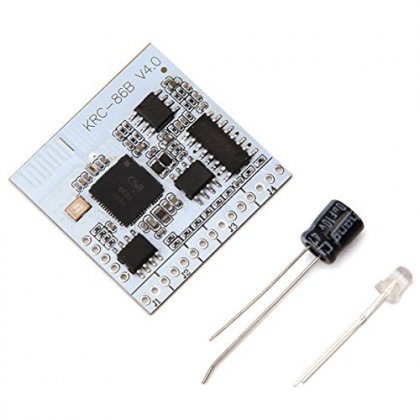

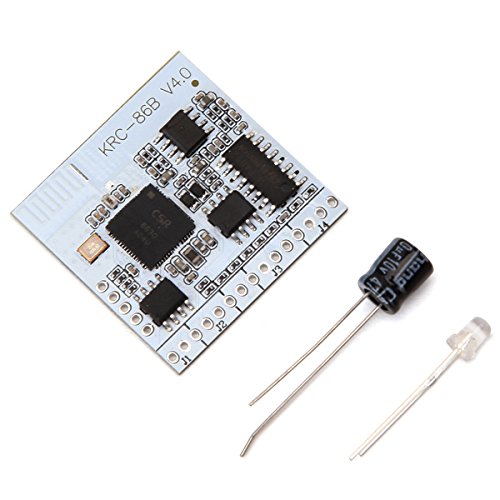

Package included:

1 xKRC-86B Bluetooth 4.0 Stereo Audio Receiver Module
