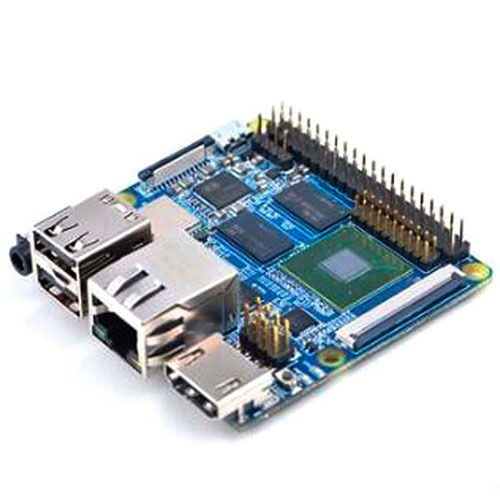

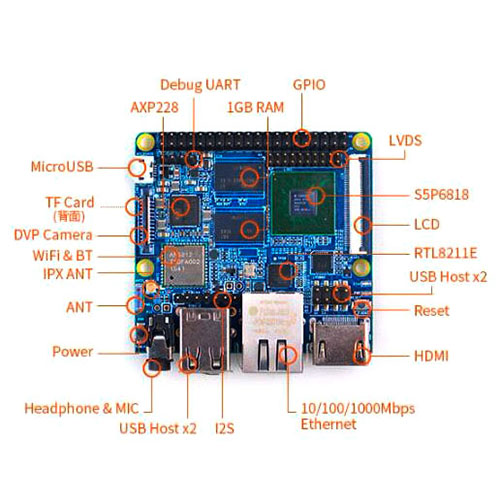

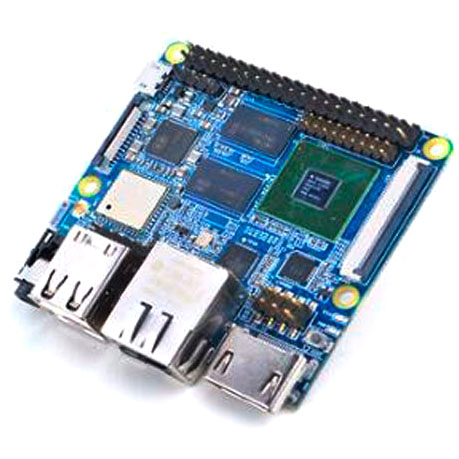

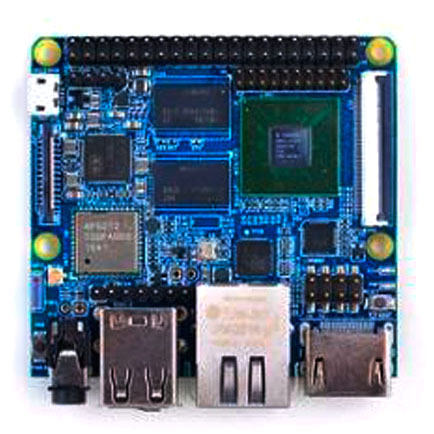

NanoPi M3

CPU: S5P6818, dynamic operating frequency 400Mhz - 1.4GHz
PMU power management: AXP228, support software shutdown and wake-up sleep
DDR3 RAM: 1GB
SD: one microSD card slot
Ethernet port: Gigabit Ethernet interface (RTL8211E)
Wireless: 802.11 b / g / n
Bluetooth: 4.0 dual mode
Antennas: Wi-Fi and Bluetooth sharing, car ceramic antennas
Audio: 3.5mm headphone / via HDMI
I2S: Onboard I2S interface, 7Pin, 2.54mm needle
Microphone: 3.5mm headphone jack, through the input
USB host: 4 USB 2.0 host, two of which are standard A type interface, the other two are 2.54mm pin
Micro USB: 1 USB 2.0 client
LCD interface: 45pin, 0.5mm pitch FPC chip holder, supports full color TFT LCD (RGB: 8-8-8)
HDMI: HDMI 1.4a, A type interface, 1080P HD display
LVDS Interface: 20Pin, 2.0mm pinout
DVP camera interface:
24-pin, 0.5mm pitch, FPC chip vertical base GPIO expansion interface: 40-pin, 2.54mm pin, compatible with NanoPi M1, M2, Raspberry pie and other creative board
Debug serial port: 4Pin, 2.5mm single row pin
Key: K1 (power button), reset
LED: power indicator, system status indicator
RTC: Supports RTC with button battery guide
PCB size: 64x60mm, 6 layers, immersion gold process
Power: DC 5V / 2A
