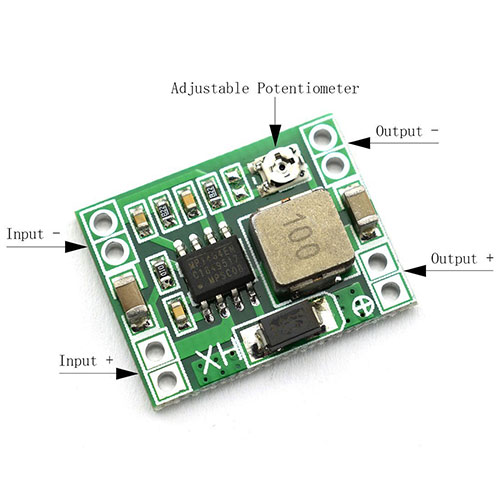

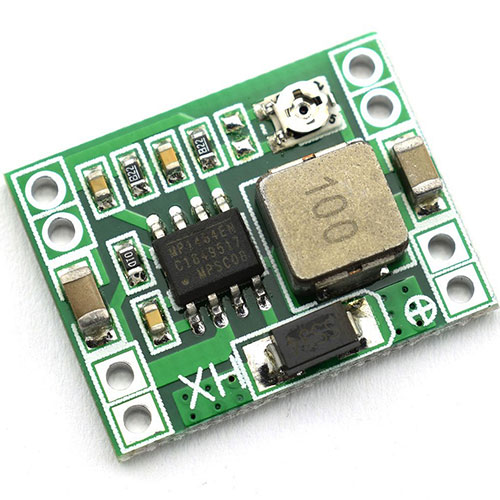

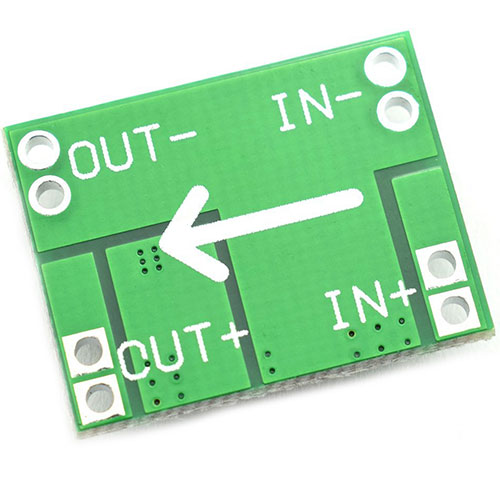

product description Module Name: Mini MP1484EN DC Step-Down Converter Module Size: 22.3x17.5x4mm Module Type: Non-isolated buck module Rectifier: synchronous rectification Input voltage: DC 4.75V-23V Output voltage: DC 1.0V-17V Output current: 3A (maximum), 1.8A long time work Transmission efficiency: 96% (MAX) Output ripple: less than 30mV Switching frequency: 340KHZ Load Regulation: +/- 0.5% Voltage Regulation: +/- 2.5% Operating temperature: -45 degrees to +85 degrees You can put a multimeter synchronization control voltage at the output, adjust the potentiometer with a screwdriver, you can get accurate voltage through fine tuning. application: DC-DC step-down module (supports 2S-5S polymer lithium battery), aviation model power supply, DIY portable power supply, display power supply, car power supply, camera power supply, vehicle power supply, communication equipment power supply and other various requirements of high volume and weight Package size 3.5 × 2.4 × 0.2 inches Product weight 0.16 oz
