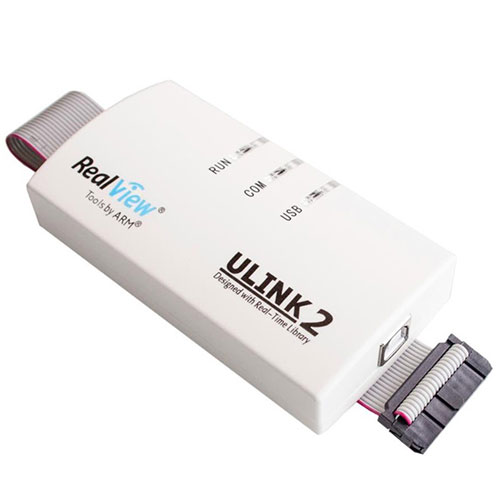

LINK2 USB JTAG Emulator ARM7&ARM9 Cortex Ulink II Debug Adapter

product description
Ulink 2 USB JTAG emulator ARM9 Cortex Keil Ulink II GH2. ARM USB compatible JTAG adapter debugger Keil Ulink-II. Ulink 2 deos does not require any specific driver. It is automatically configured as HID in Windows using Plug and Play. ULink simulator the latest upgrade.
ULINK2 emulator not only has all the features of ULINK, but also features such as Serial Wire Debug (SWD) support, clock return support, and real-time proxy. Easily perform targeted hardware on-chip debugging (using on-chip JTAG, SWD and OCDS), Flash programming.
The standard Windows USB driver supports plug and play ULINK2, supporting serial debugging of ARM Cortex-M3 based routines, and support for programs running during read and write memory, terminal emulation, and serial debug output, supporting 10-pin cables (up to 20 cables simultaneously).
Breakpoint RAM: unlimited. ROM Breakpoint (ARM7 / 9): Up to 2 ROM Breakpoints (Cortex-M3): Up to 6 Set While Executing: Yes. Access Breakpoint (ARM7 / 9): 2 max (R / W only, have value). Access breakpoint (Cortex-M3): up to 4 (with value

Track History: No.
Real-time proxy: yes.
JTAG RTCK support (return clock): Yes.
Memory R / W (bytes / sec): 28K.
Flash memory R / W (bytes / second): 25K.
Single step (fast) (instructions / second): 50

Package Contents:

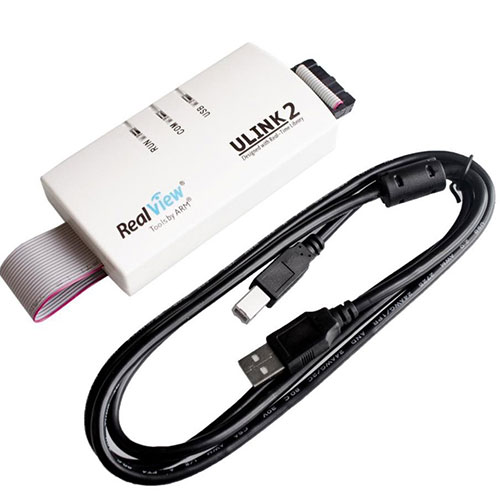

1 × ULINK2 USB JTAG Adapter
1 × cable USB 2.0
1 × CD
