Laser sensor PM2.5 PM1.0 10

Laser sensor PM2.5 PM1.0 10

  • SKU: 18i124
  • Shipping Weight: 55g
877:viewed
US$14.80
  (9989 Pieces available)
Hot Products
  • Description
  • Customer Reviews
  • Payment & Shipping
[Features]: Laser PM2.5 dust sensor is versatile, compact, accurate data, real-time response characteristics
[Applications]: Laser PM2.5 dust sensor can be used in portable instrumentation, air quality monitoring equipment, air purifiers, fresh air ventilation system, air conditioning, smart home devices and other places.

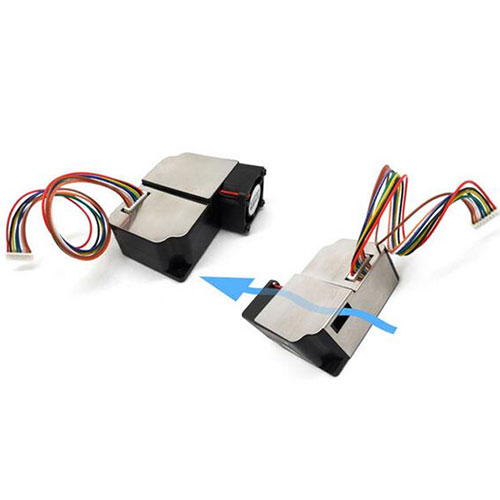

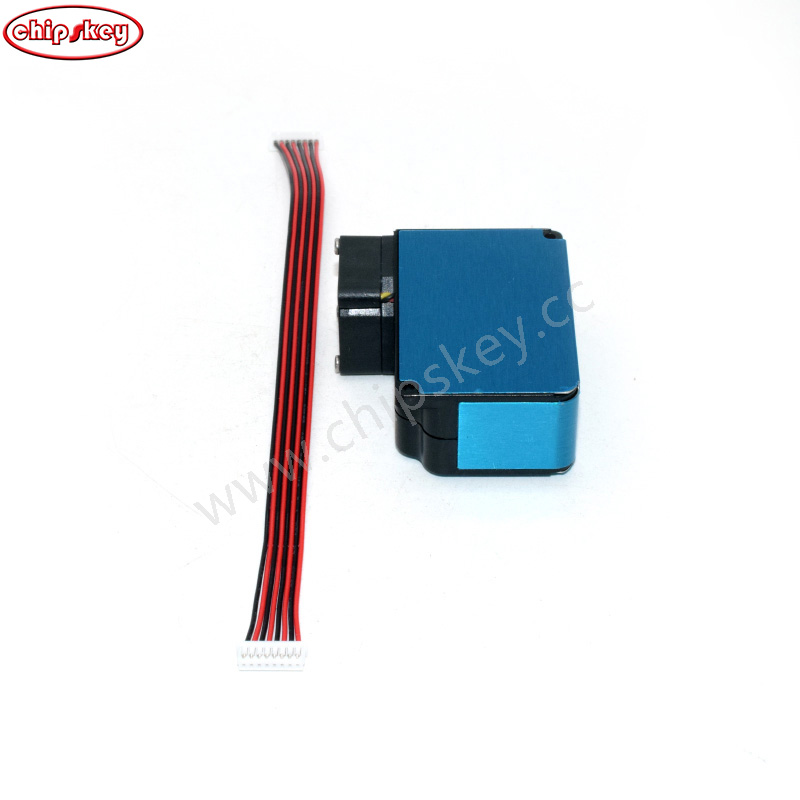

Product Description: ZH03 laser PM2.5 dust sensor is a versatile, compact module. The principle of laser scattering of dust particles present in the air was subjected to probing, it has good selectivity and stability. ZH03 laser dust sensor modules with digital and analog outputs for easy use.

Sensor Features:
Zero error alarm rate
Real-time response
Accurate data
Minimum resolution particle diameter of 0.3 microns
Main applications: ZH03 laser PM2.5 dust sensor module can be widely used in portable instruments, air quality monitoring equipment, air purifiers, fresh air ventilation system, air conditioning, smart home devices and other places. Specifications:
Model ZH03 laser PM2.5 dust sensor
Detection of gas PM1.0, PM2.5, PM10

UART output data output (3V level)
DAC (0.4 ~ 2V voltage standard signal)
PWM output
Operating voltage 4.5V ~ 5.5V
Response time ≤10 seconds
Operating humidity 15% RH-90% RH (non-condensing)
Storage humidity -20 ~ 60 ℃
Life 3 years (in air)
Dimension 50 × 32.4 × 21mm (L × W × H)

Laser PM2.5 dust sensor Note:

1. Never change the shift state of the electronic component mounting

2. The module can not be subjected to excessive shock or vibration

3. Sensor suggested vertical installation, increase fan life

4. Ensure dust collection ventilation holes normal installation

5. Avoid sticky particles into the sensor, moisture, prevent the impact of performance
