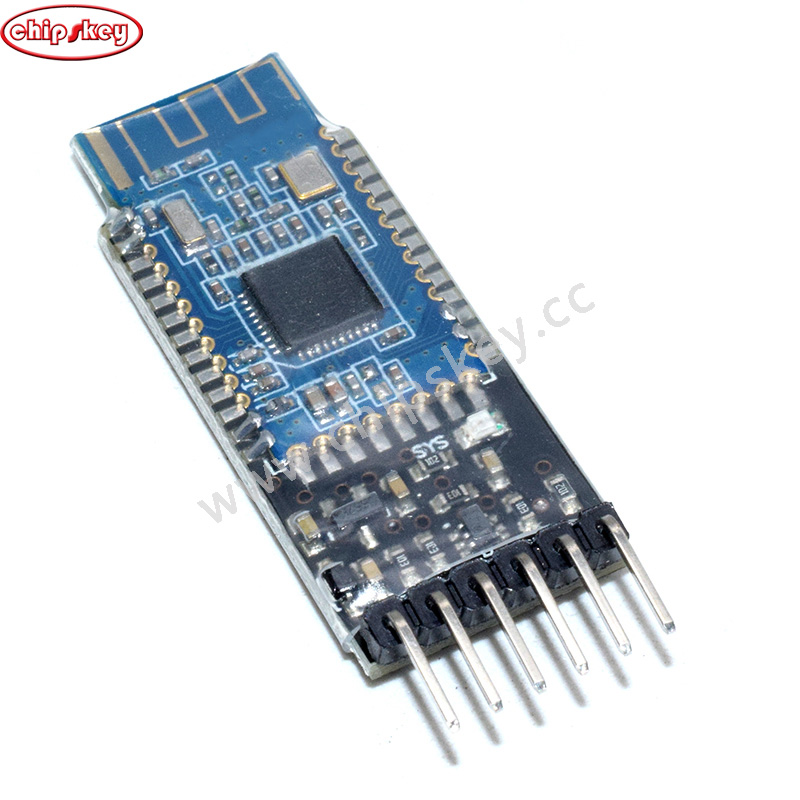

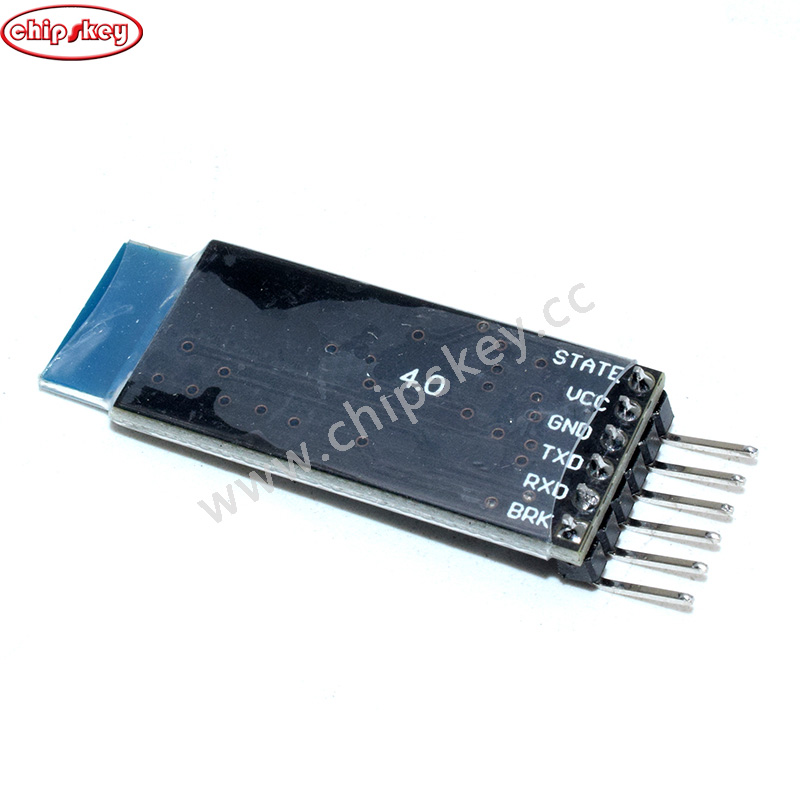

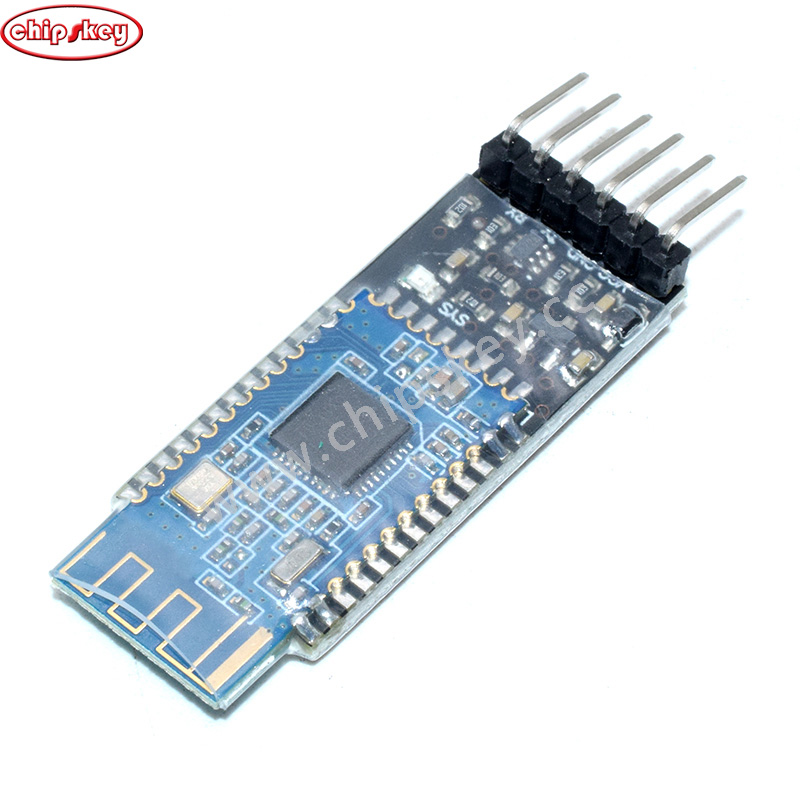

Real HM-10 Bluetooth 4.0 Master Slave Module for Xbee Arduino UNO R3 Mega 2560 Nano

product description Note: We have comprehensive technical support to help you with the sample project. For more sample code and DIY project tutorials, ? product description HM-10 series Bluetooth module using TI CC2540 chip, 256KB configuration space, Support AT command. Users can change roles (master and slave mode) and serial port baud rate, device name, password matching and other parameters as needed. Very flexible to use. ? Product parameters Bluetooth protocol: Bluetooth specification V4.0 BLE USB protocol: USB V2.0 Working frequency: 2.4GHz ISM band Modulation Mode: GFSK (Gaussian Frequency Shift Keying) Transmit power: not more than 4dBm Sensitivity: ≤-84dBm at BER 0.1% Transmission rate: Asynchronous: 6 kbps Synchronization: 6 kbps Security Features: Authentication and Encryption Support Services: Central and Peripheral UUID FFE0, FFE1 Power: + 5VDC 50mA Operating temperature: -5 ~ + 65 degrees Celsius Physical Dimensions: 27 mm x 13 mm x 2.2 mm. ? Application Industrial remote control, remote sensing POS system, Bluetooth keyboard, mouse and joystick Automotive testing equipment Portable, battery-powered medical equipment Automated data acquisition Bluetooth remote control toys Wireless LED display system Bluetooth printer Smart home and industrial control ? Package Included: 1 HM-10 Bluetooth module
