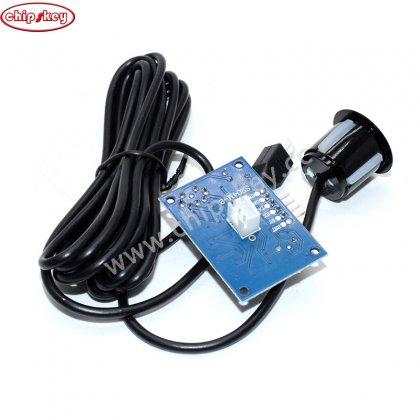

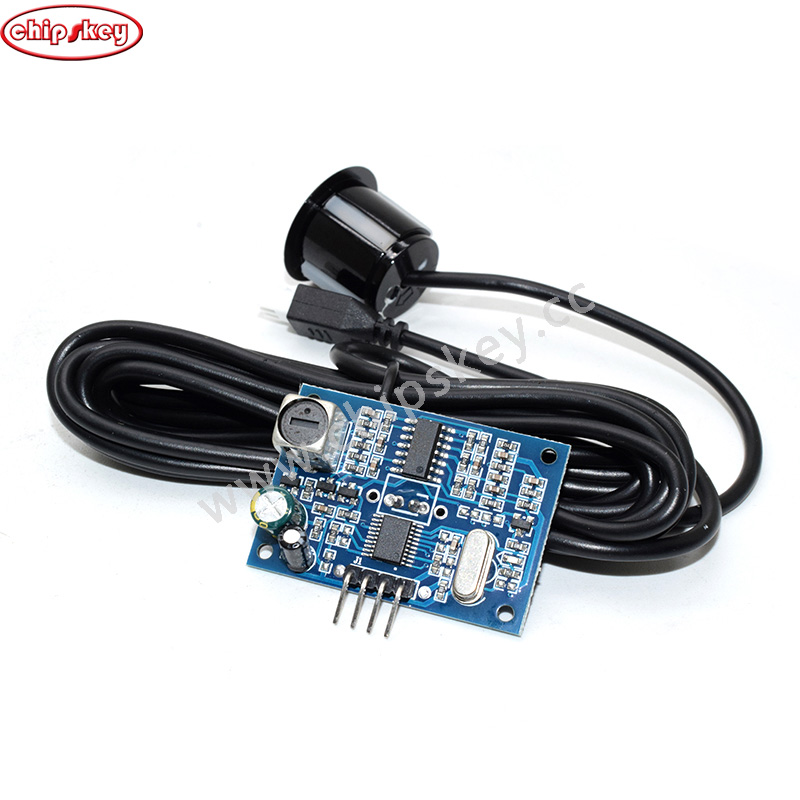

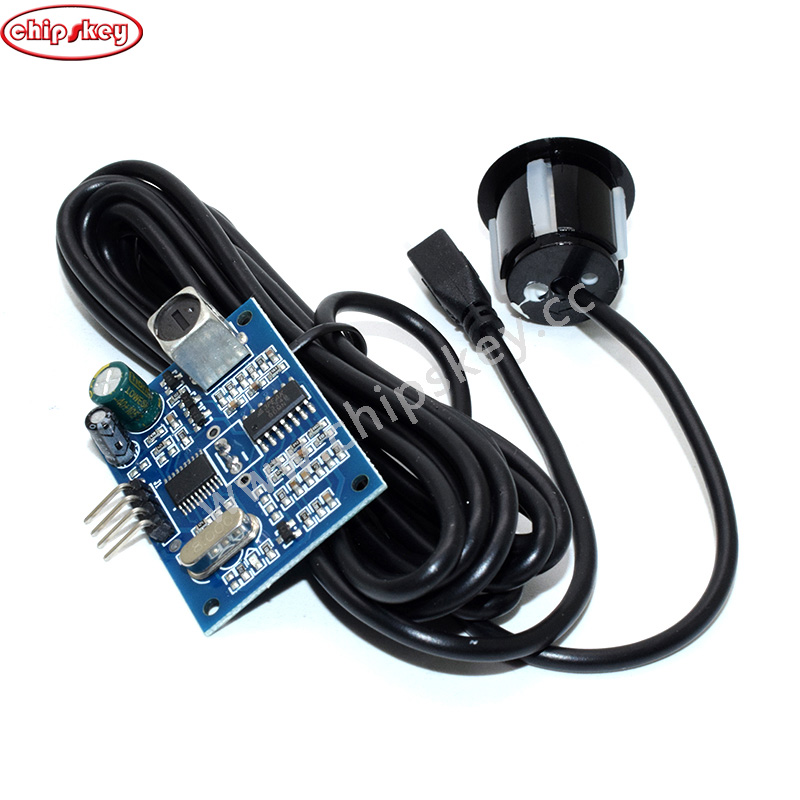

JSN-SR04T Integrated Ultrasonic Ranging Module Reversing Radar

JSN-SR04T Integrated Ultrasonic Ranging Module Reversing Radar

Feature: 1, small size, easy to use 2, low voltage, low power consumption 3, high accuracy 4, strong anti-interference 5, closed-end integration with waterproof wire probe for wet, harsh measurement occasions Specification: Working voltage: DC 5V Static working current: 5mA Working current: 30mA Acoustic emission frequency:40KHz Wiring:+5V(positive); Trig(control); Echo(receive); GND(cathode) Measuring Distance :5M Dimension: 41MMX28.5MM
