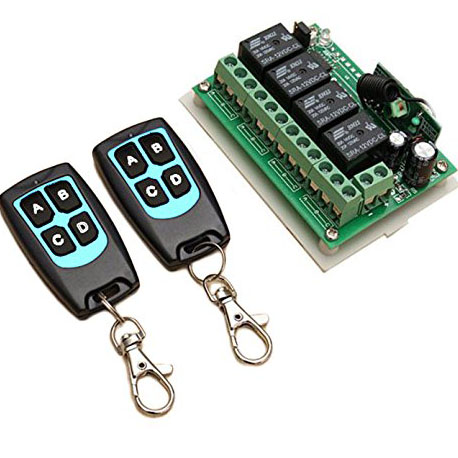

RF Wireless Remote Control universal remote control code grabber Radio Switch Transmitter Receiver DC12V 4 CH

Product description Color:Blue Instructions: 1. Press the learning code, the indicator flash, loosen your finger, press any button of the remote control, the indicator flash 2 times and off, it means you learn it successfully . 2. It can learn more than 12 PCS 2262 or 1527 chip with the different code wireless remote control. 3. remove/clean: press the learning button about 8 seconds , the indicator turn on to off, it means the information that you keep have been removed successfully. Output working way: 1. Self-lock: connect the JP1 with the cutting out cap 2. Jog: the cutting-out cap is non-occupation, JP1 and JP2 do not connect either. 3. Inter-lock: Connect the Jp2 with the Cutting out cap, Receiver: 1. Working voltage: DC12V 2. Quiescent condition: Less than 6mA 3. Working temperature: -40°c+80°c 4. Receiver sensitivity: more than -105dBm 5. Working frequency: 433mhz 6. Output voltage: DC and AC is optional 7. Output current: Less than 3A 8. Max load current: 10A 9. Dimensions: 72 x 52 x 26mm Remote control transmitter: 1. Remote Distance: 200M 2. Operating Voltage: DC 12V 3. Frequency: 433mhz 4. Operating Current: 13 mAh 5. Code Type: Fixed code / Learning code 6. Dimensions: 58 x 39 x 14mm Note:This product does not supply any instructions, please reference the description.
