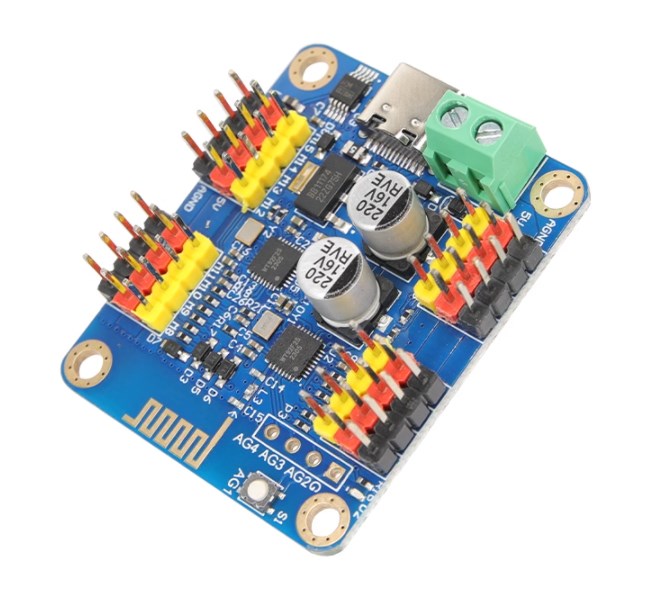

Intelligent 16 channel servo control board drive controller TTL serial port Bluetooth wireless upper computer APP
1. Product highlights
1.16 servo control
2. Type-C/Bluetooth mini program connection
3. Set the action status and simplify the writing of the action process
4. Online sports program editing, custom action sequences
5. Perfect computer control software, online control, and offline operation!
6. Type-C interface power supply, convenient and fast.
2. Performance parameters

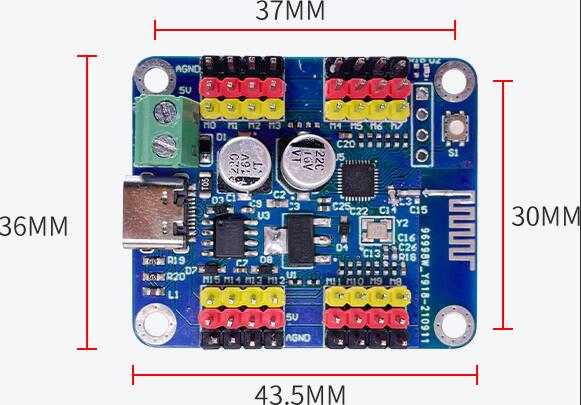

1. Size: 43.5mm X 36mm X 12mm
2. Installation hole position: 37mmX30mm, aperture 3mm
3. Operating temperature: -40 ° C~80 ° C
4. USB power supply: 5V
5. Maximum working current: 2A
6. Working voltage of steering gear: 5-7.2V
7. The power supply for the steering gear needs to be separately supplied to the steering gear (5-7.2V)
8. Servo motor channel: 16 channels
9. Servo PWM accuracy: 0.1us
10. Minimum control step size of the servo: 1us
11. Communication method: Type-C/Bluetooth mini program
12. Baud rate: 9600bps
13. Upper computer software: Yes
14. Number of action groups: 16 groups
15. Maximum number of stored actions: 8192
16. Status light: The light does not turn on when the computer is connected, but only when connected and controlled using a WeChat mini program
17. GND, AG2, AG3, and AG4 are control action groups, and corresponding action groups can be controlled by shorting GND.
18. Structural Display
5. Description of the status lights on the servo control board
D2 Control board status
Chang Liang off-line
Slow flashing (1s/time) on line
Fast flashing (0.2S/time) Action group operation
6. Operating Instructions
6.1 Dual power supply
The Type-C interface is used to supply power to the servo control board, with a voltage of 5V, and is also an interface for communication with the upper computer.
2. The power port of the steering gear supplies power to the steering gear, with a voltage of 5-7.2V and a current of no less than 1A.
Note: When programming on the upper computer, Type-C interface can be used directly. If there is a connection to the servo, the power port of the servo must be used to supply power to the servo, otherwise the servo cannot rotate
Move. If there is a dual power supply and the upper computer operates correctly, but the steering gear cannot be controlled, please measure whether the voltage at the power port of the steering gear is positive
Usually, this phenomenon is caused by unstable power supply.
6.2 USB connection
You only need a Type-C data cable for your phone, and the Android phone charging cable cannot connect to the computer and servo control board. You can connect to the upper computer and test the control board basic functions of.
