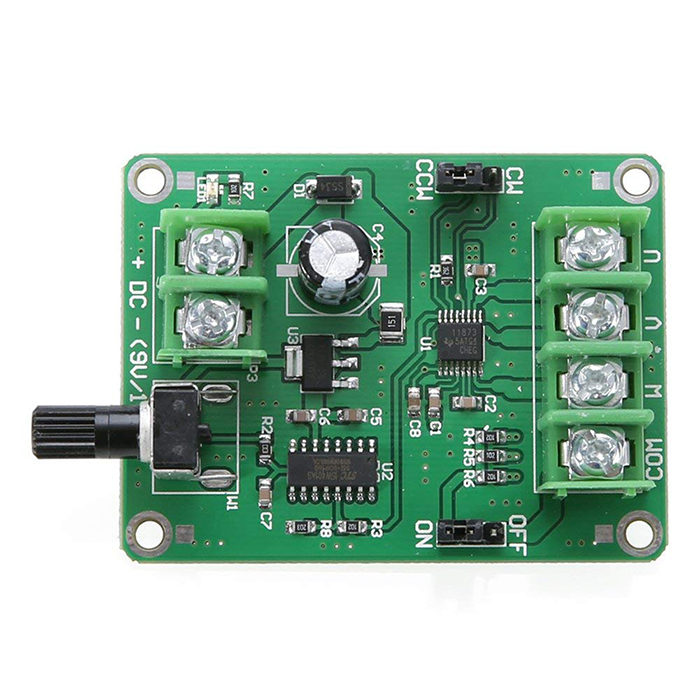

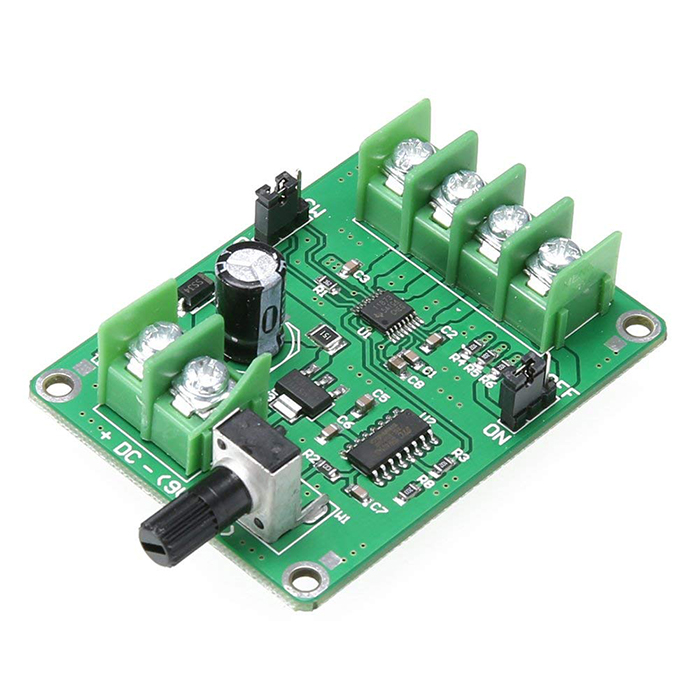

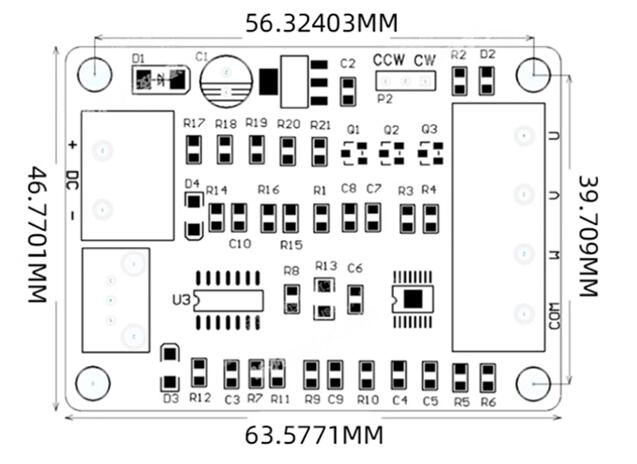

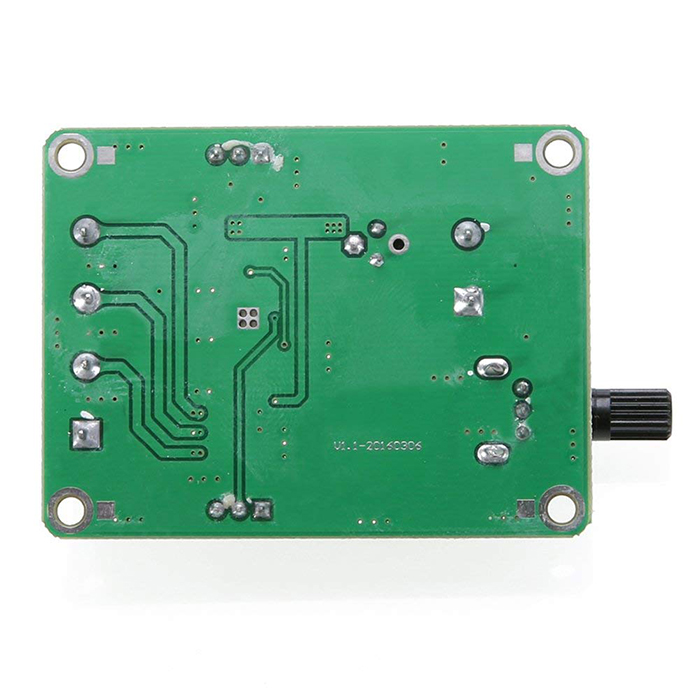

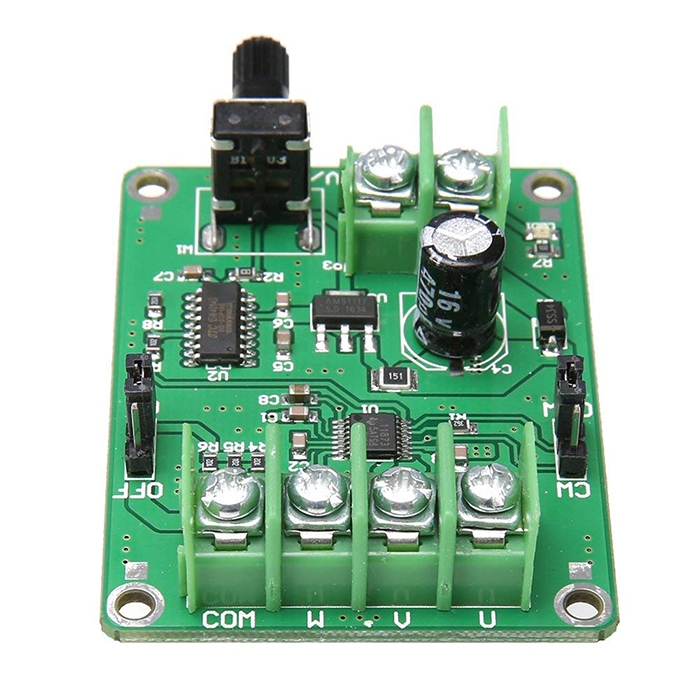

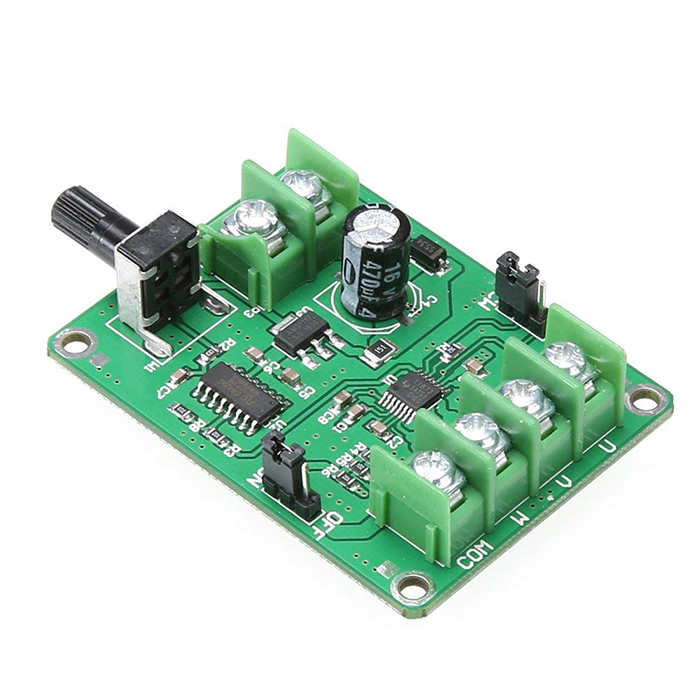

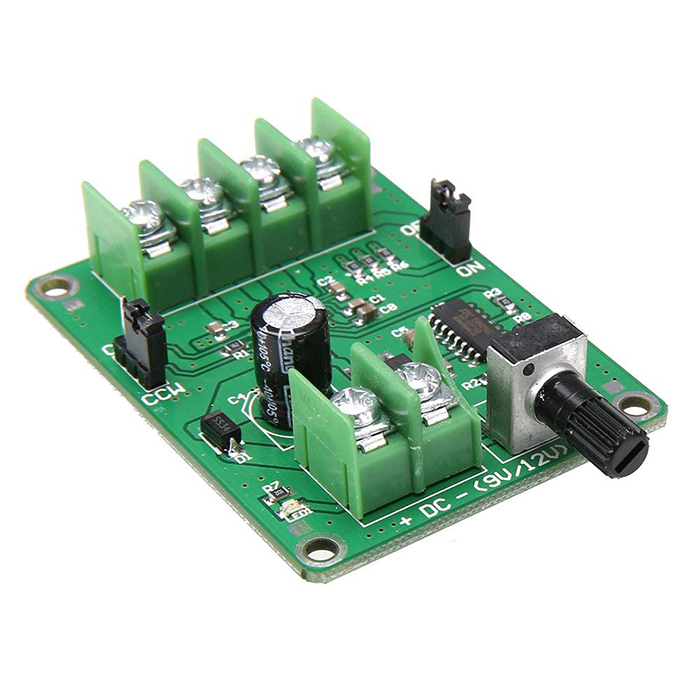

Product description Brand new Drive Voltage: DC 5-12V Work Current: less than equal 1.2A Speed Range: 0% - 100% Size: approx. 46 x 61mm / 1.81 inch x 2.40 inch material:plastic + metal Color: green Reverse voltage protection Over current protection Easily wiring the higher the faster, maximun reach approx. 10000rpm For 3/4 line HDD motor Package included:1 x brushless motor driver board Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.

This driver board can drive micro 3-wire or 4-wire Hall free brushless motors such as hard disk brushless motors and optical drive brushless motors. The driver board has voltage reverse protection, overcurrent protection, short circuit protection, simple wiring, and is easy to use. The hard drive motor can operate with a voltage of 7-12V, and the higher the voltage, the faster the speed. The peak speed can reach around 10000 revolutions per minute.

How to identify the common port of a 4-wire motor: Use a multimeter to measure the resistance of each of these four terminals in 1 gear. If the resistance of one terminal is the smallest and equal to the resistance of the other three terminals, then that terminal is the COM terminal, which is the common terminal. The drive board automatically recognizes 3-wire or 4-wire brushless motors, and 4-wire brushless motors can also be disconnected from the COM line.

This driver board can drive micro 3-wire or 4-wire Hall free brushless motors such as hard disk brushless motors and optical drive brushless motors

The driver board has voltage reverse protection, overcurrent protection, short circuit protection, simple wiring, and is very worry free to use.

The hard drive motor can operate with a voltage of 7-12V, and the higher the voltage, the faster the speed, which can reach around 10000 revolutions per minute.

How to identify the common port of a 4-wire motor: Use a multimeter to measure these four terminals in the resistance * 1 range. If one terminal has the smallest and equal resistance value to the other three terminals, then that terminal is the COM terminal, which is the common terminal. The drive board automatically recognizes 3-wire or 4-wire brushless motors, and 4-wire brushless motors can also be disconnected from the COM line.

Product parameters

Driving voltage: DC7-12V

Working current: ≤ 1.2A

Speed range: 0% -100%

Phase transition control: Yes

Voltage reverse protection: Yes

Overcurrent protection: Yes

Attention: After a short overcurrent protection, the power indicator light of the brushless drive board will turn off. At this time, the power supply to the drive board should be cut off, and the cause of the current should be resolved before supplying power to the drive board. Once the LED power indicator light is on, it can work normally.

Note:

Not all hard drive brands necessarily support reverse polarity protection. If it cannot be used, it proves to be incompatible
