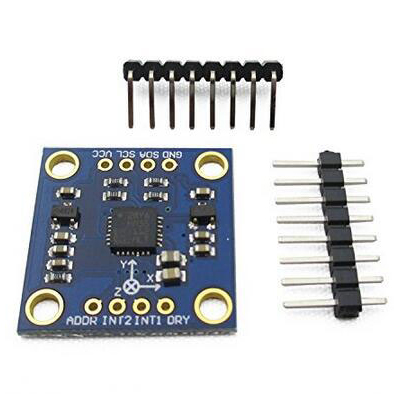

GY-51 LSM303DLH three-axis electronic compass acceleration module; electronic compass sensor

Features: Analog Supply Voltage: 2.5 V to 3.3 V; Digital supply voltage IOs: 1.8 V ± 1.3 to ± 8,1 gauss magnetic field full ± 2g / ± 4 g / ± 8 g dynamically selectable full; 16-bit data output I2C serial interface; 2 independent programmable interrupt; Supply voltage range 2.7 ~ 5 V Supply current 0.83ma Interface IIC Operating Temperature -40 ° ~ 85 ° Dimension (L * W * H) 23mm × 23mm × 11.6mm
