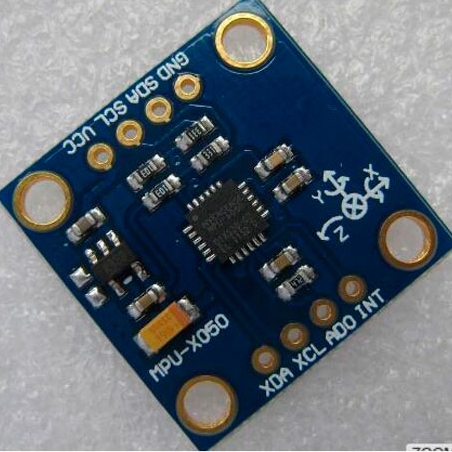

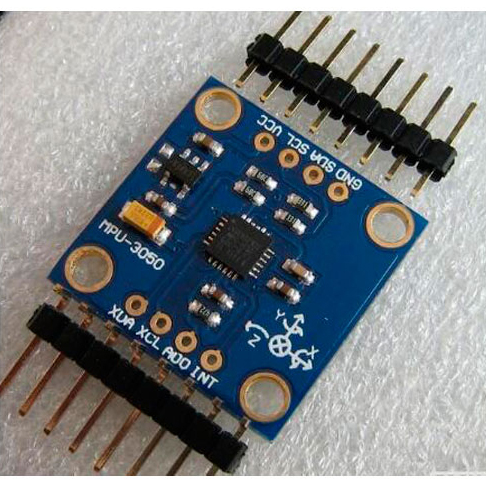

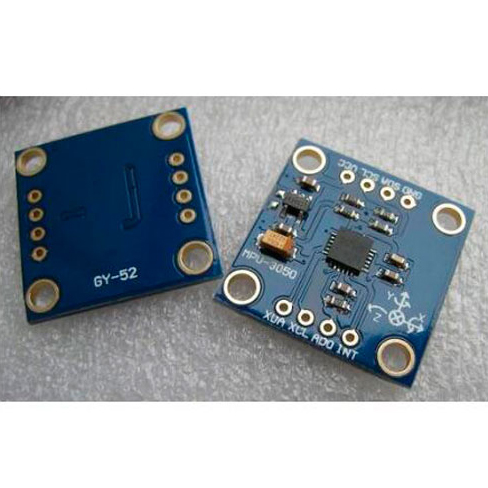

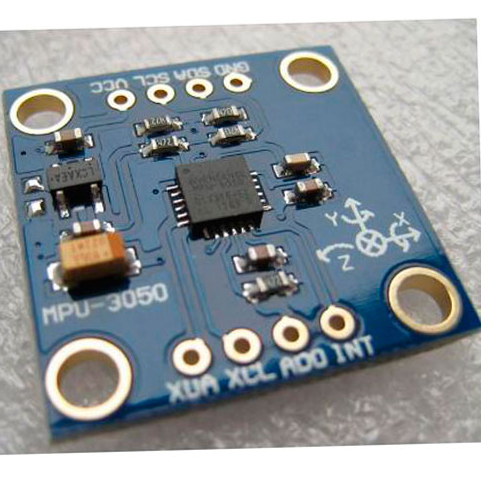

GY-52 MPU-6050/6000 module, 6-axis acceleration sensor 3 axis gyroscope gesture, tilt module

Use chip: MPU-6050 Power: 3-5v (internal low dropout voltage regulator) Communication: IIC communication protocol standards 16 AD conversion chip, 16-bit data output Gyro range: ± 250 500 1000 2000 ° / s Acceleration range: ± 2 ± 4 ± 8 ± 16g Adopt Immersion Gold PCB to ensure welding machine quality Pin spacing of 2.54mm ? ?application Athletic game measurement Augmented Reality Electronic Image (EIS: Electronic Image Stabilization) Optical Image (OIS: Optical Image Stabilization) Pedestrian navigator Zero touch gesture user interface Posture fast Certification market smart phone Tablet device Handheld game product ? 3 d remote control Portable Navigator Features Quaternion (quaternion and Euler Angle forma) data fusion calculus in a digital output axis 6 or 9 axis rotation matrix. With 131 LSB / ° / SEC sensitivity, the sensing range is + 250, + 250, + 1000 and + 1000 ° / SEC triaxial angular velocity sensors (gyroscopes). Programmable control, program control range + / - 2 g, 4 g +, + 8 g, triaxial acceleration + 16 gb. Sensitivity removal of accelerometers and gyroscope axes, given lower settings and sensor drift. Digital Motion Processing (DMP) engines reduce the computational complexity of data fusion, sensor synchronization and load position sensors. Motion Processing Database supports Android, Linux and Windows Operational built-in time offset and magnetic sensor calibration calculations, in addition to customer needs correction. Digital temperature sensor output The synchronous digital input pin (Sync pin) supports video electronic phase stabilization with GPS technology Programmable control interrupt (interrupt) Support gesture recognition, pan, zoom off, scroll, interrupt rapid decline, high - G, zero motion sensor, touch sensor, shake sensor function. VDD is 2.5 V +/- 5%, 3.3 V, 3.0 V +/- 5% +/- 5%, VDDIO is 1.8 V +/- 5% Gyroscope operating current of 5μA, gyroscope standby current of 5μA; the current accelerator operation: 350μA, Current Accelerator Power-Saving Modes: 20μA @ 10hz I2C Fast Mode up to 400KHZ, or SPI Serial Host Interface up to 20MHZ (Serial Host Interface) Built-in frequency generator in all temperature ranges (full temperature range) only plus or minus 1% of the frequency change. Users personally test 10,000 grams collision tolerance Minimize the Thinnest Package (QFN) Customized for Portable Products 4 x4x0.9 mm RoHS and environmental standards
