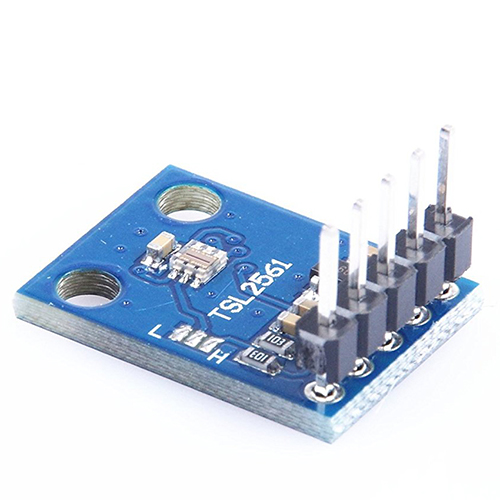

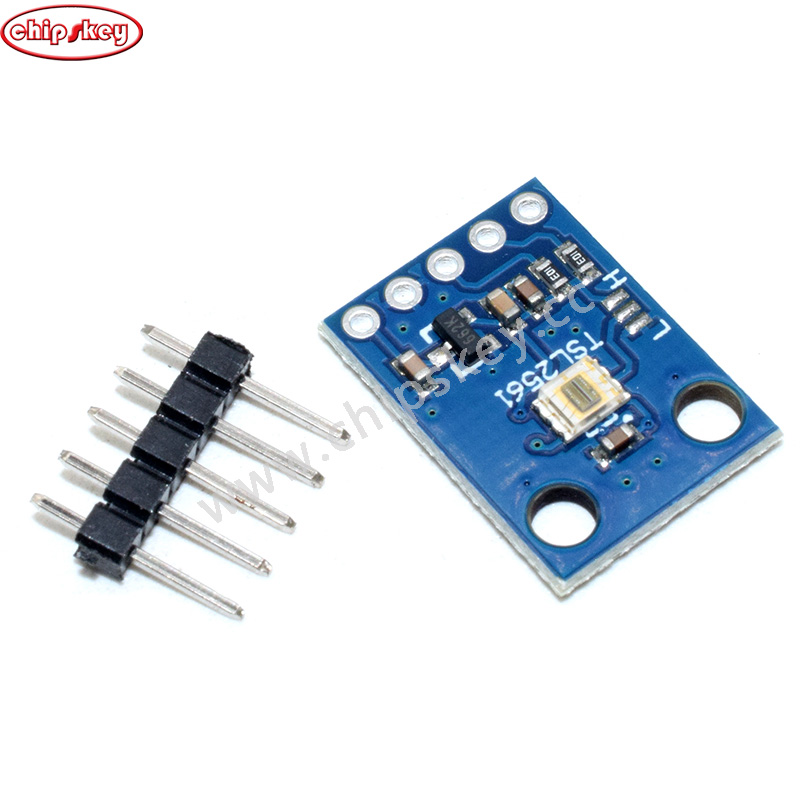

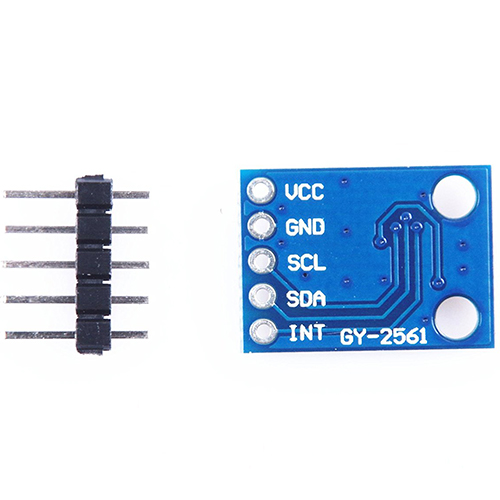

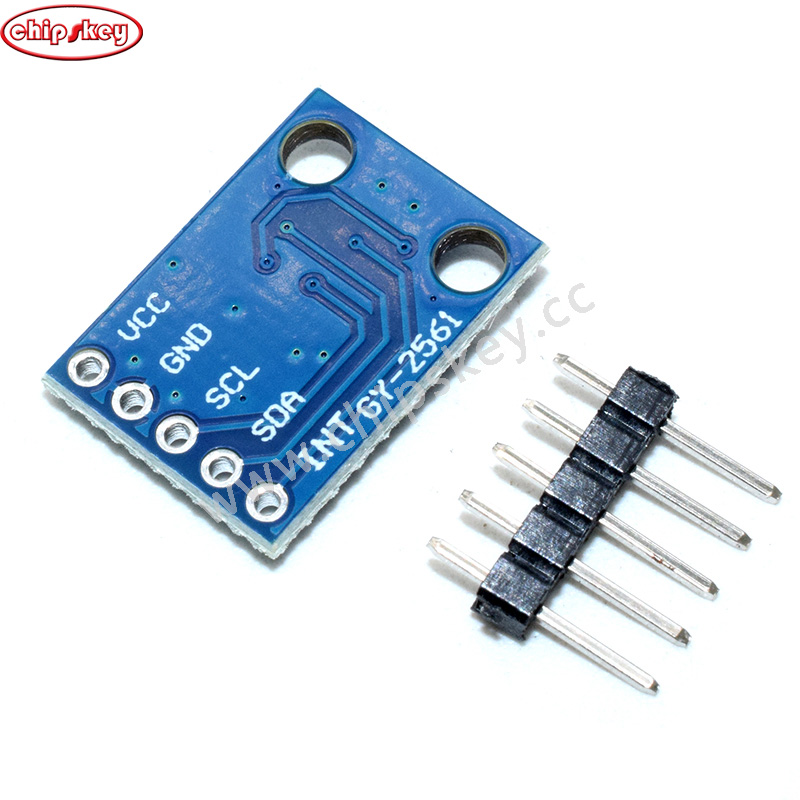

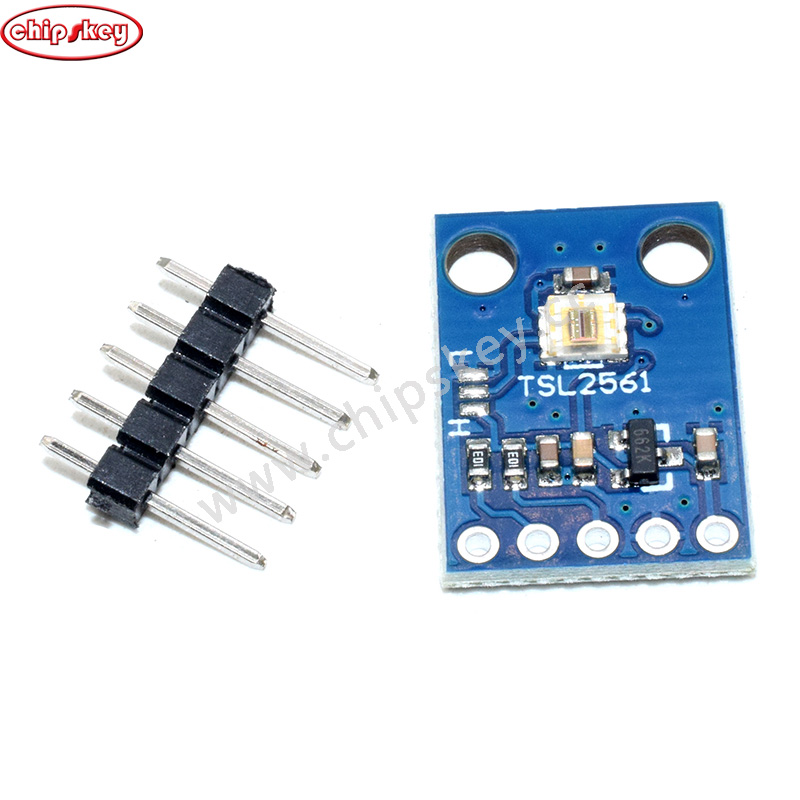

GY-2561 TSL2561 Luminosity Sensor Light intensity module

product description TSL2561 optical - digital converter, the light intensity is converted to digital signal output, direct I2C interface or SMBus interface. Each device connects a bandwidth photodiode and an infrared response integrated in a CMOS photodiode. The IC provides nearly 20 bits of dynamic range - bright visual response. The two integrated ADCs convert the photo current to digital output and the digital output indicates the light emitted by each channel. S digital output can be microprocessor input. The TSL2561 is a high-speed TAOS low-power, wide-area, programmable, optically programmable digitizer chip. The chip can be widely used in a variety of display monitors to adapt to changing light conditions, so that the monitor provides the best display brightness and minimum power consumption; can also be used for street lighting control, safety lighting and many other occasions. Name: TSL2561 Optical - Digitizer Module. Size: 18.2 * 13.2 * 2.5mm (L * W * H). weight:. 2g color: blue Material: FR4 + electronic components. The main features of the chip are as follows: 1. Programmable configuration allows light intensity and low threshold, when the actual lighting interrupt signal exceeds the threshold. 2. Compliant with digital output SMBus (TSL2560) and I2C (TSL2561) bus protocol. 3. Analog and digital output programmable gain control. 4. Low-power mode, consumes only 0.75 mW. 5. Automatic suppression of light fluctuations at 50 Hz / 60 Hz. Package Included: 1 * GY-2561 TSL2561 Photometric Sensor Module Light Sensor product information Package size 6 x 3.5 x 0.2 inches Product weight 0.32 ounces
