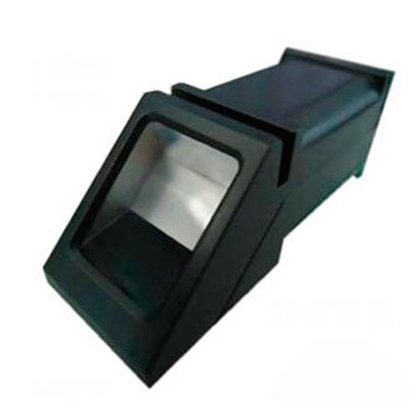

Optical Fingerprint Reader Fingerprint Sensor Module for Arduino

product description
Power: DC 3.6 ~ 6V
Working current: <120 mA
Peak current: <140 mA
Fingerprint image input time: <1.0 seconds
Window area: 14 × 18 mm
Signature file: 256 bytes
Template file: 512 bytes
Storage capacity: 1000
False Acceptance Rate (FAR): <0.001% (when security level is 3)
Refusal Rate (FRR): <1.0% (Security Level 3)
Search time <1.0s (average 1: 500)
PC interface: UART level) Baud rate (UART): (9600 x N) bps, where N =
1 ~ 12 (default N = 6, ie 57600bps) Working environment: -20C ~ 50C; 40%
~ 85% RH (non-condensing) Storage environment: -40C ~ 85C; <85% RH (non-condensing)
Quantity: 1 piece
colour:
Material: FR4
specification:
Uses: fingerprint door locks, safes, gun boxes, financial security areas; access control systems, IPC, POS, driver training, attendance and other aspects of identity; private club management, management software, licenses and so on.
Working voltage: 3.6 ~ 6.0V
Working current: <120mA
Other features: As long as the MCU serial port, embedded modules can operate, MSP430,51, AVR, PIC, STM32, ARM, FPGA, Arduino controller, pcDuino, etc. can operate this module. The module through the serial port control, you can use the PCs serial port to control the module. Composition of optical fingerprint sensor, high-speed DSP processor, high-performance fingerprint matching algorithm, high-capacity FLASH chips and other hardware and software. Fingerprint module performance is stable, both fingerprint sampling / registration / matching / search function.
packing list:
1 fingerprint identification module
1 connection cable
