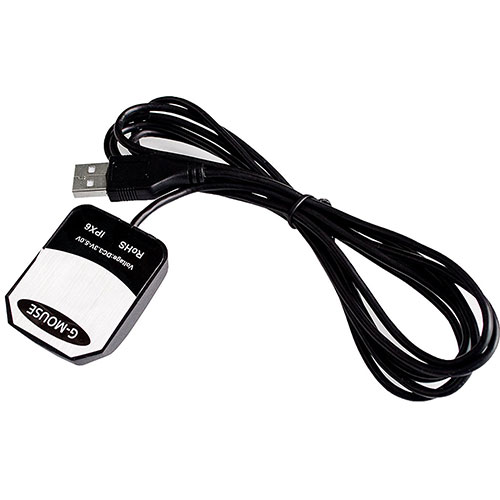

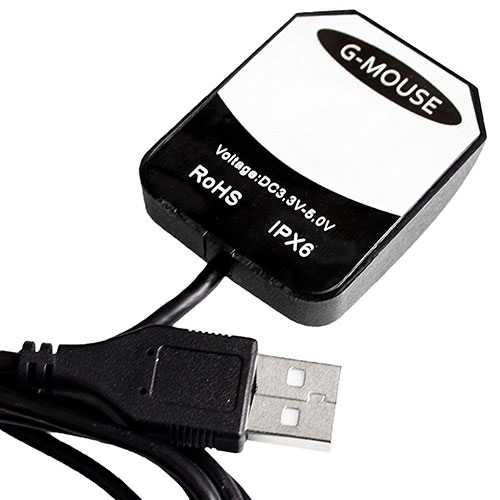

GPS Antenna Vk-162

product description
C / A code, 1.023MHz code stream
Reception frequency: L1 [1575.42MHz]
Track channel: 50
Support DGPS [WAAS, EGNOS and MSAS]
Positioning performance
2D plane: 5m [average]
2D plane: 3.5m [average], where DGPS aids.
Drift: ± 0.1m / s
Timing accuracy: 1us
Reference coordinate system: WGS-84
Maximum altitude: 18,000 meters
Maximum speed: 500m / s
Acceleration: ± 3g / s
Electrical performance:
Tracking sensitivity: -160dBm
Acquisition sensitivity: -146dBm
Cold start time: 32s [average]
Warm start: 32s [average]
Hot start time: 1s [average]
Capture time: 0.1s [average]
Operating temperature:
-30 ℃ to +80?
Package Size:
49 * 38 * 16mm;
Cable length 2m
Output:
Output data baud rate 4800bps or 9600bps
