GSM Antenna

Product description


The Proxicast 3G/4G Universal Adhesive Blade is a unique cellular dipole antenna that provides medium-gain on all 2G/3G (CDMA / GSM), and 4G (LTE / HSPA+) frequency bands (700-2700 MHz) currently in use by cellular network operators such as Verizon Wireless, AT&T Wireless, T?Mobile, Rogers, Bell Mobility and Telus as well as most other cellular operators worldwide.

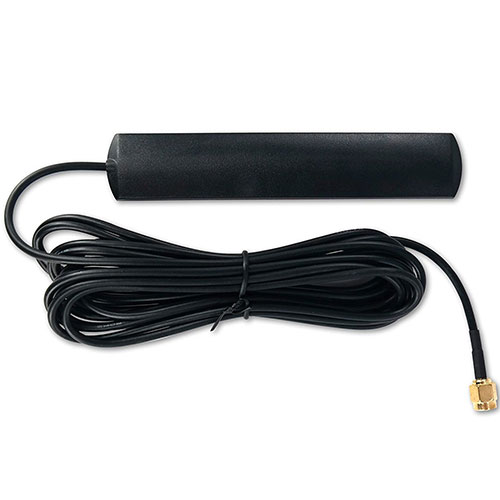

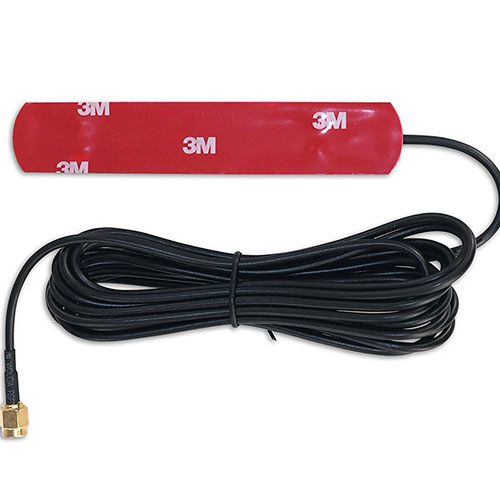

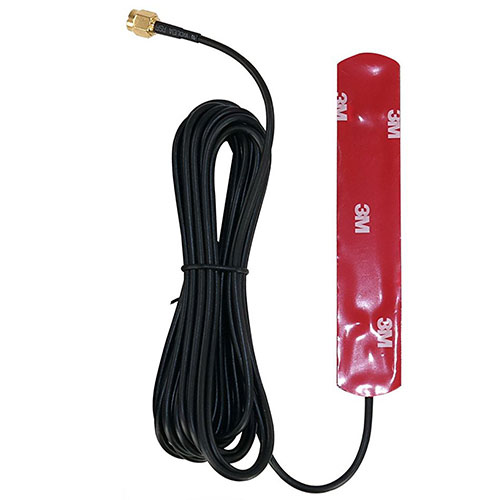

The flat “blade-shaped” 3G/4G antenna is 4.5 inches (115 mm) long and has an omni-directional radiation pattern that delivers up to 3.5 dBi of gain with an integrated ground-plane. The polycarbonate antenna has a strong 3M adhesive backing and an integrated SMA male plug connector which mates with the SMA female jack on many popular cellular modems and routers.

Designed for M2M applications such as vending machines, meter housings, equipement sheds, or other locations requiring an inconspicuous low-profile external antenna. Can also be vehicle mounted for buses, vans, trucks or other mobile installations. This antenna is an excellent general purpose cellular antenna suitable mounting on smooth metal, glass, plastic, stone or even wood surfaces.

Compatible with all SMA-based equipment including modems and routers from Cisco, Cradlepoint, Digi, Pepwave, Proxicast, Sierra Wireless, Sixnet/Red Lion and many others.

Electrical Properties
? Frequency Range: 700-2700 MHz
? Impedance: 50 ohms
? Gain: 3.5 dBi depending on frequency band
? Radiation: Omni
? Polarization: Vertical
? VSWR: ADGP < 1.5:1
? Ground Plane: Integrated

Mechanical Properties

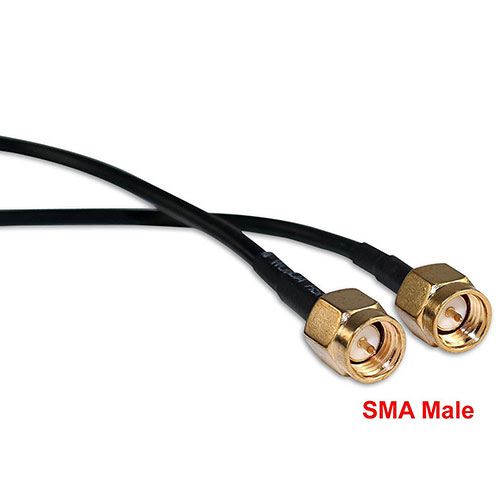

? Connector: SMA Male
? Material : Polycarbonate - RoHS compliant
? Operation Temp.: -50 to +80C

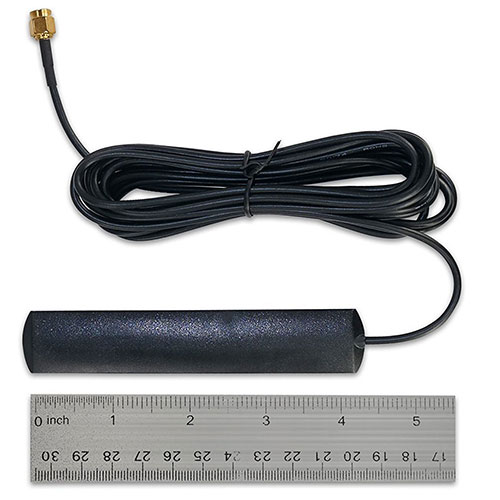

? Length: 4.5 in / 115 mm
? Width: 0.83 in / 21 mm
? Thickness: 0.16 in / 4 mm

NOT for use with Wi-Fi (RP-SMA) devices.

Note: LTE MIMO devices should use 2 identical antennas separated by at least 22 in.

Product information
Product Dimensions 4.5 x 0.8 x 0.2 inches
Item Weight 4.8 ounces
