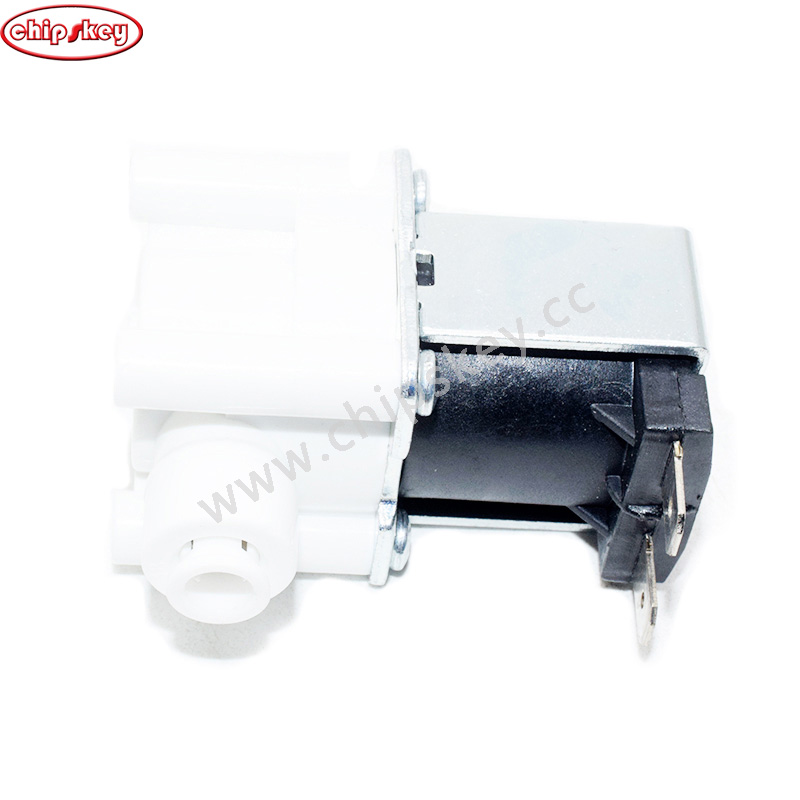

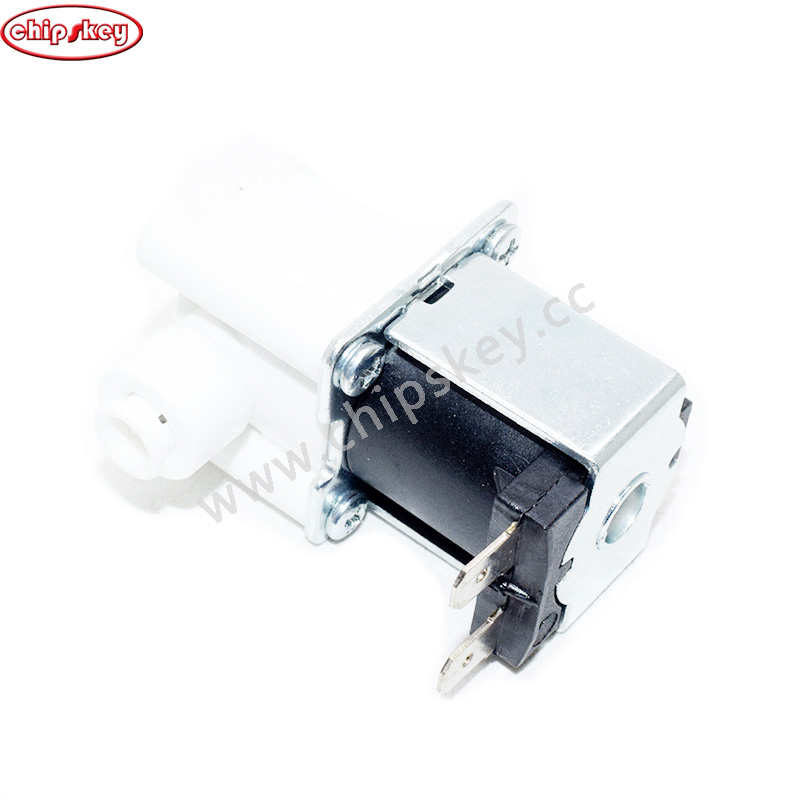

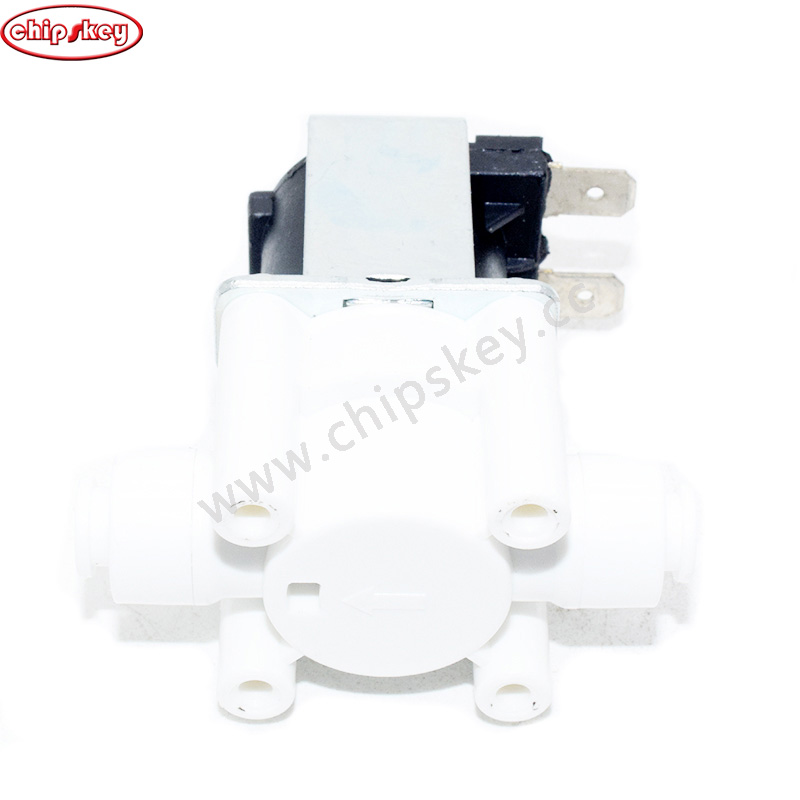

G1/4 DC12V PE Pipe NC Electromagnetic Water Valve

I. Product Features

This product boasts stable performance, durability, safety, high sensitivity, guaranteed quality, and an aesthetically pleasing design.

II. Main Technical Specifications

1. Operating Environment Altitude: Not exceeding 2,500 meters.

2. Medium Temperature Range: 0°C to 60°C; Ambient Temperature Range: 1°C to 45°C.

3. Protection Rating: IP00; Relative Humidity: ≤95%.

4. Compatible Medium: Liquids with a concentration similar to water, free of impurities and corrosive substances.

5. Key Parameters:

   • Operating Principle: Normally closed—opens when powered, closes when de-energized.

   • Connection Interface: G1/4.

   • Body Material: POM plastic.

   • Rated Voltage: DC12V.

   • Rated Current: 0.42A.

   • DC Resistance (20°C): 27.7±0.6Ω.

   • Power Consumption: 4.8W.

   • Response Time: 25ms.

   • Operating Pressure Range: 0.02–0.8MPa.

   • Service Life: Equipped with imported stainless steel springs and premium materials, ensuring a minimum of 200,000 cycles (exceeding 5 years at 100 cycles/day).

III. Precautions

Store in a well-ventilated area away from corrosive substances. Avoid dropping and exposure to rain or snow.
