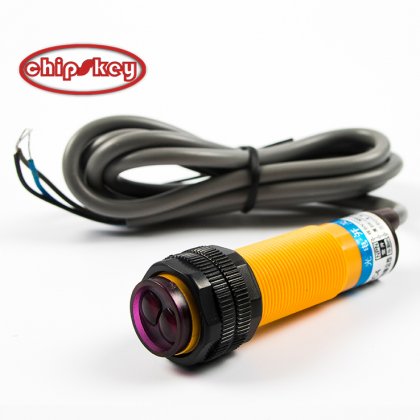

E18-D50NK Adjustable Infrared Sensor Switch/Long type
Induction type: diffuse reflection;
Sensing distance: 0-50cm adjustable;
Working voltage: 6-36V is acceptable;
Brown anode, blue cathode black data
Working environment: temperature -40 to +70 degrees Celsius;
Protection level: IP61-IP67;
Corresponding time: the function reset time is below 2.5MS;
Detection objects: transparent and opaque bodies;
Differential distance: the detection distance is below 20%;
Insulation resistance: greater than or equal to 20M ohms;
Precautions:
1. When the switch is connected to the power supply, first check whether the wiring is correct and check whether the voltage parameter is the rated value;
2. The switch load cannot be short-circuited, and the power supply in the load should not exceed the maximum output current;
