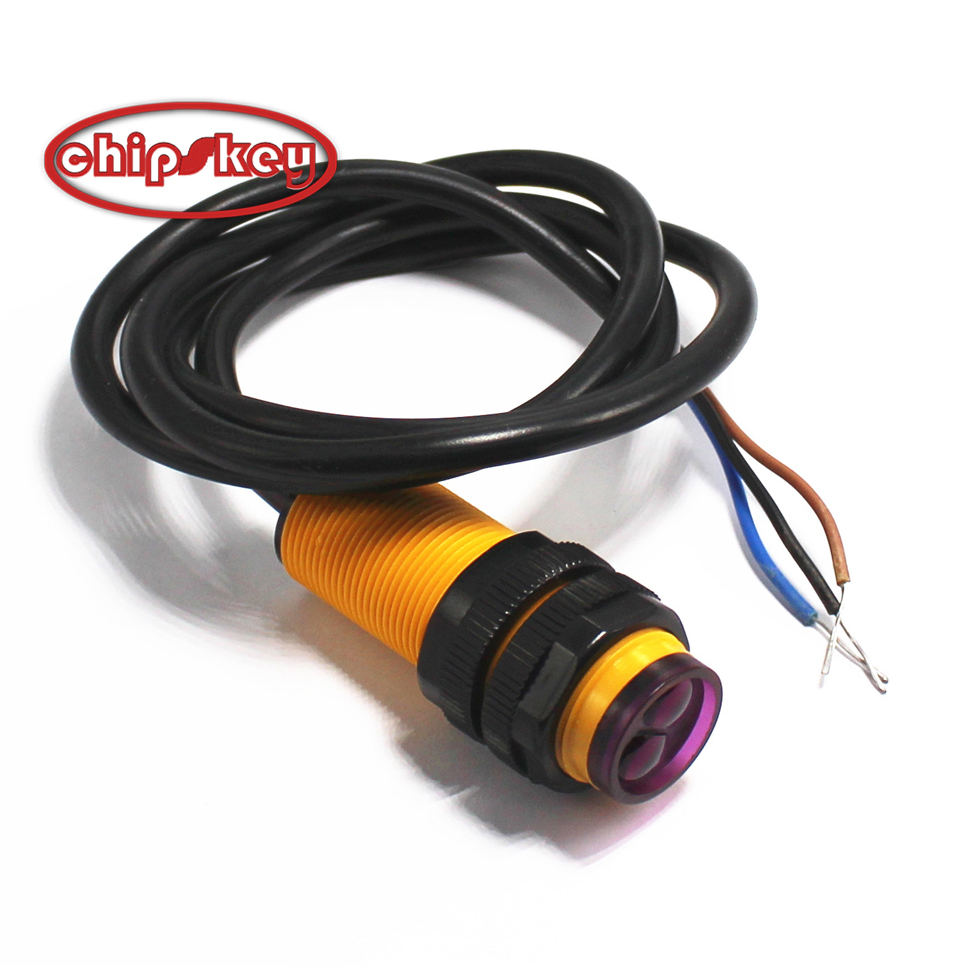

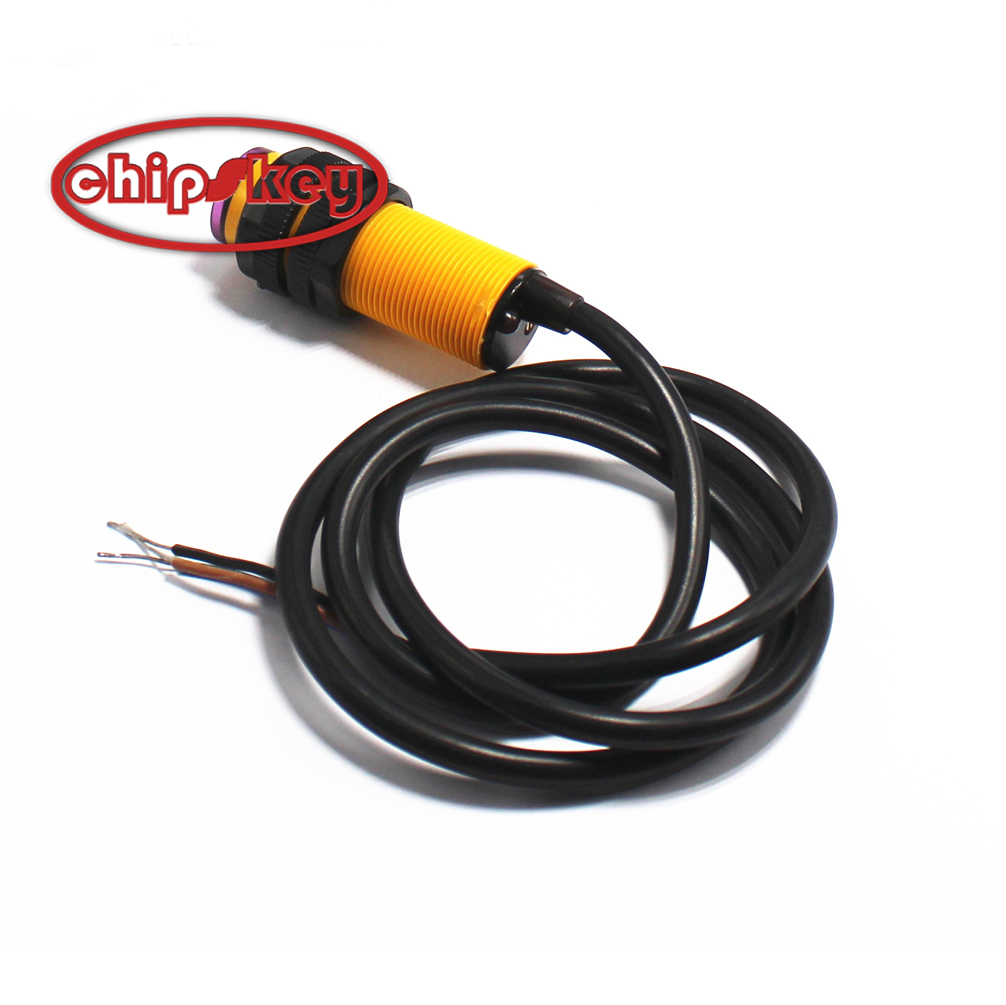

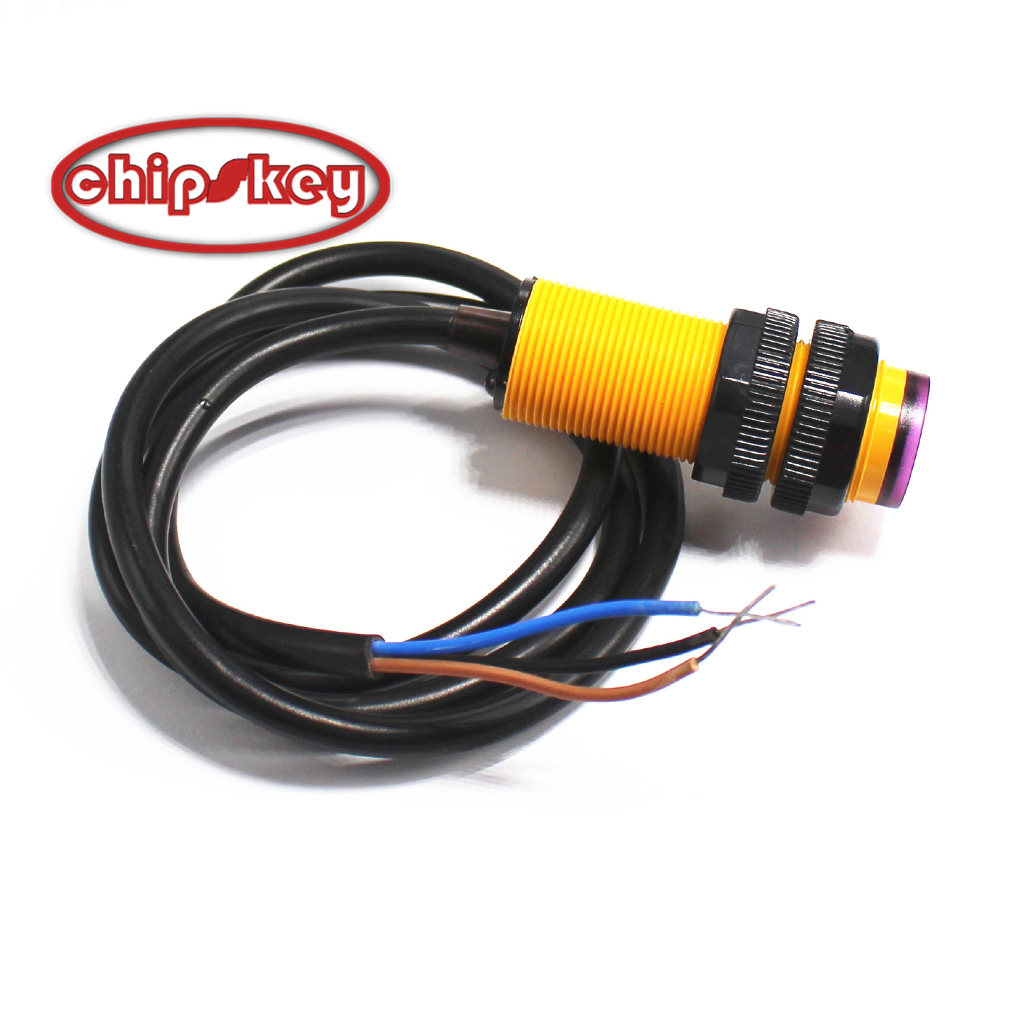

E18-D80NK - Adjustable Infrared Sensor Switch/Long type
Electrical characteristics:
U: 5VDC
I: 100mA
Sn:3-80CM
size:
Diameter: 17MM
Sensor length: 45MM
Lead length: 45CM
Applications:
1. Automatic counting equipment for production line goods
2. Multi-function reminder
3. Walking the maze robot
4. Kitchen automation system
5. Security and anti-theft system, etc.
Technical parameters of photoelectric switch E18:
1. Output current DC/SCR/relay Control output: 100mA/5V power supply
2. Current consumption DC<25mA
3. Response time <2ms
4. Pointing angle: ≤15°, effective distance 3-80CM adjustable
5. Detection object: transparent or opaque body
6. Working environment temperature: -25℃~+55℃
7. Standard detection objects: sunlight below 10000LX incandescent lamp below 3000LX
8. Shell material: plastic
