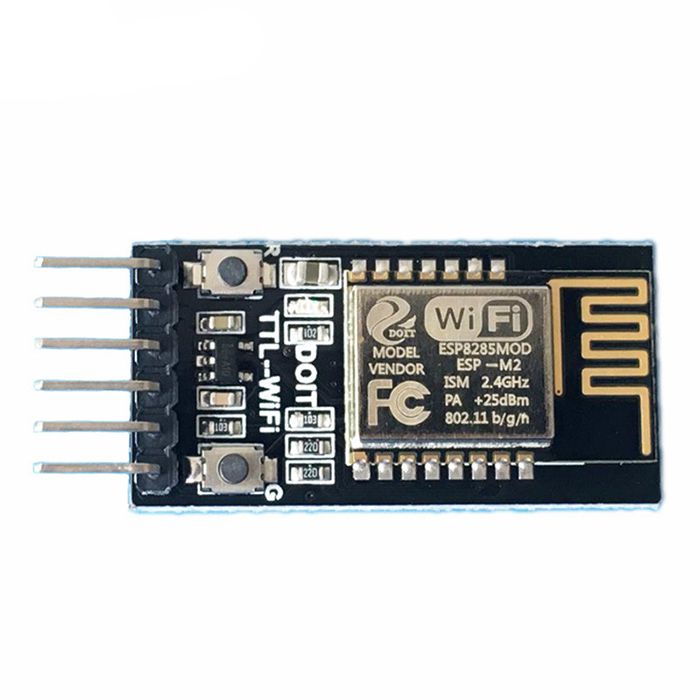

DT-06 Wireless WiFi Serial Port Transparent Transmission Module TTL To WiFi Compatible With Bluetooth HC-06 Interface ESP-M2

The developed transparent transmission firmware optimizes the web page configuration interface, supports AP, STA, AP+STA configuration mode, supports serial port baud rate from 300bps to 3686400bps, supports TCP Server/Client, UDP Server/Client, UDP LAN broadcast, etc. Features. At the same time compatible with AT command configuration, it is the most cost-effective WiFi transparent transmission product on the market.

Configuration interface

This product has built-in HTTP Server, which can be configured through the browser of other intelligent terminals such as PC or mobile phone, without other configuration tools or APP. In the factory setting, the firmware works in AP mode by default. The hotspot name that the WiFi module actively sends out is: “Doit_WiFi_xxxxxx”, where “xxxxxx” is the last six digits of the module's MAC address. You can connect to this hotspot using a PC with a wireless network card or a smartphone/tablet (supporting Android and IOS, Windows Phone, etc.). Hotspots have no password.
