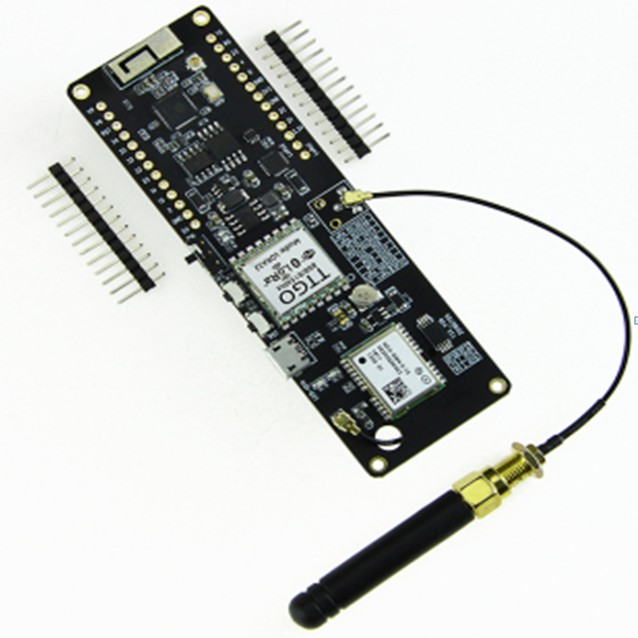

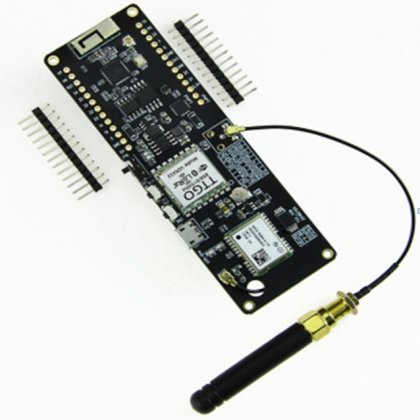

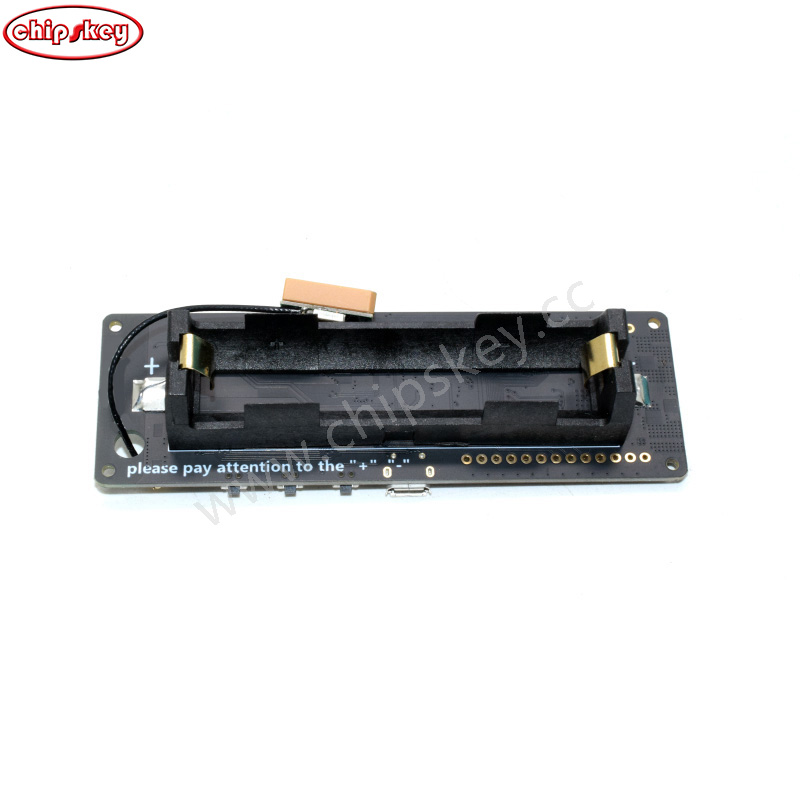

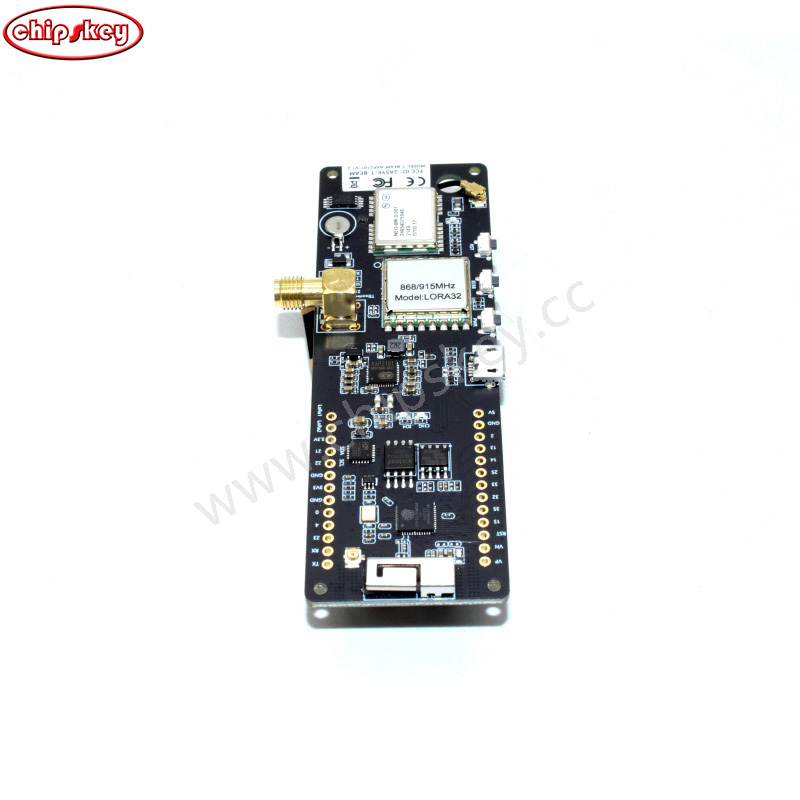

433mHZ TTGO T-Beam ESP32 Wireless Bluetooth WiFi Module ESP 32 GPS NEO-6M SMA LORA 32 18650 Battery Holder with SoftRF
Lastest ESP32 Version: REV1
-WIFI
-bluetooth
-4MB Flash
-4MB PSRAM
-3D Antenna
LORA
Product Description
Working voltage: 1.8~3.7V
Acceptable current: 10~14mA
Transmit current: 120mA@+20dBm
90mA@+17dBm
29mA@+13dBm
Operating frequency: 433/470MHz(433HMz version) /868M/915M(868MHz version) (Optional)
Transmit power: +20dBm
Receive sensitivity :-139dBm@LoRa &62.5Khz&SF=12&146bps
-136dBm@LoRa &125Khz&SF=12&293bps
-118dBm@LoRa &125Khz&SF=6&9380bps
-123dBm@FSK&5Khz&1.2Kbps
Frequency error: +/-15KHz
FIFO space: 64Byte
Data rate: 1.2K~300Kbps@FSK
0.018K~37.5Kbps@LoRa
Modulation Mode: FSK,GFSK,MSK,GMSK,LoRa TM, OOK
Interface form: SPI
Sleep current: 0.2uA@SLEEP
1.5uA@IDLE
Operating temperature: -40℃- +85℃
Digital RSSI function
Automatic frequency correction
Automatic gain control
RF wake-up function
Low voltage detection and temperature sensor
Fast wake-up and frequency hopping
Highly configurable data packet handler
GPS
GPS modules NEO-M8N, 3V-5V power supply Universal
Destined module with ceramic antenna, signal super
Save the configuration parameter data EEPROM Down
With data backup battery
There are LED signal indicator
Default Baud Rate: 9600
Power
IP5306
2A Battery Management
LED indicator: There are 4 LEDs show the battery status in real time.
Power button: Click one time will start. Fast click 2 times will shut down.
USB
CP2104-GMR
