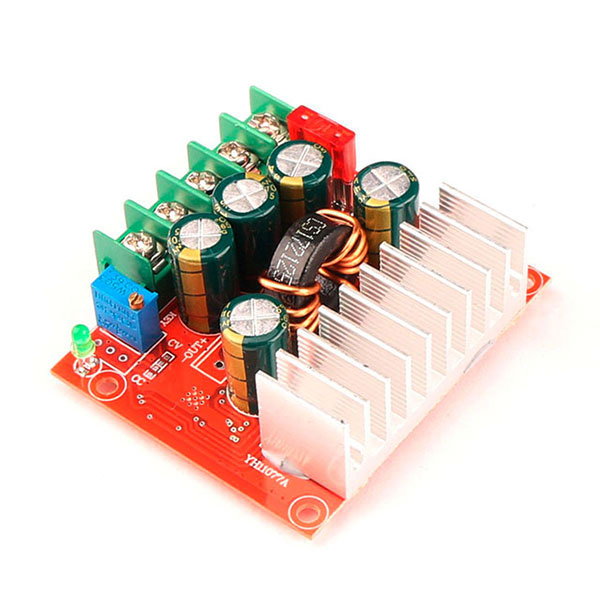

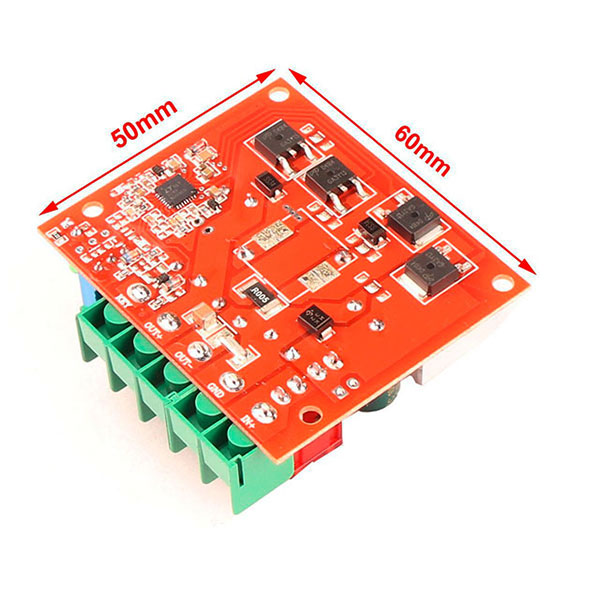

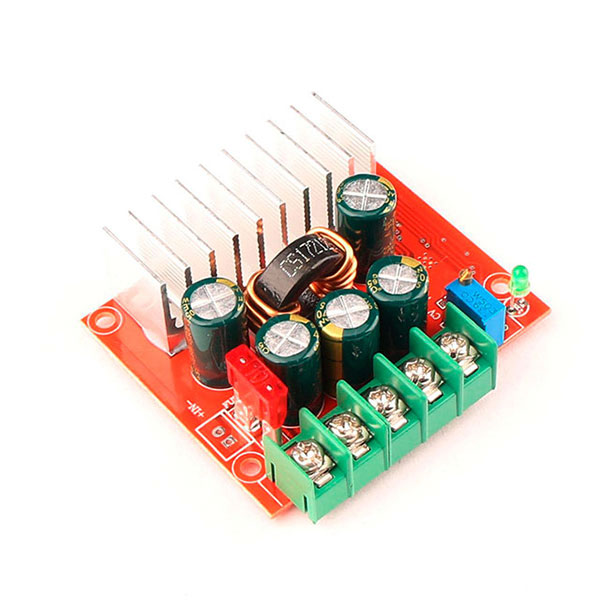

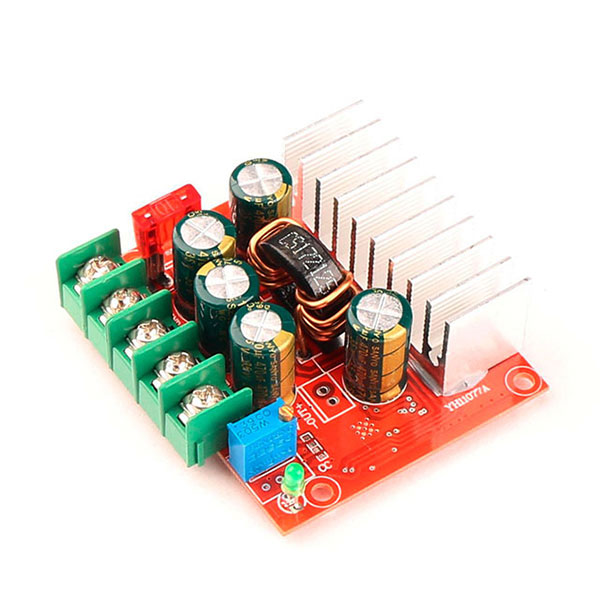

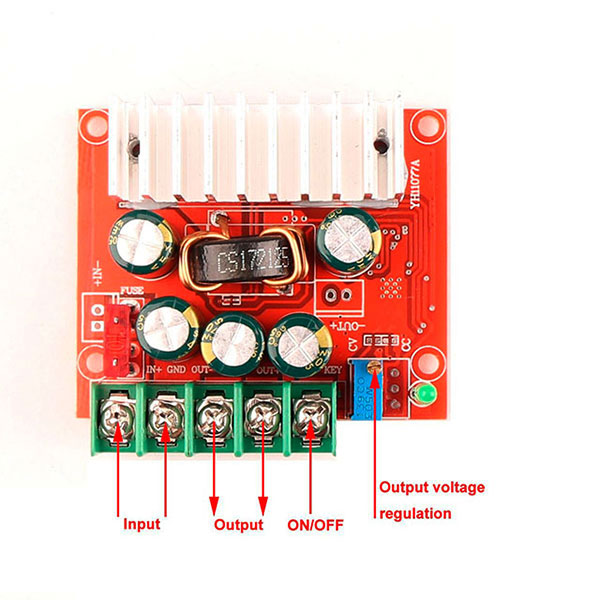

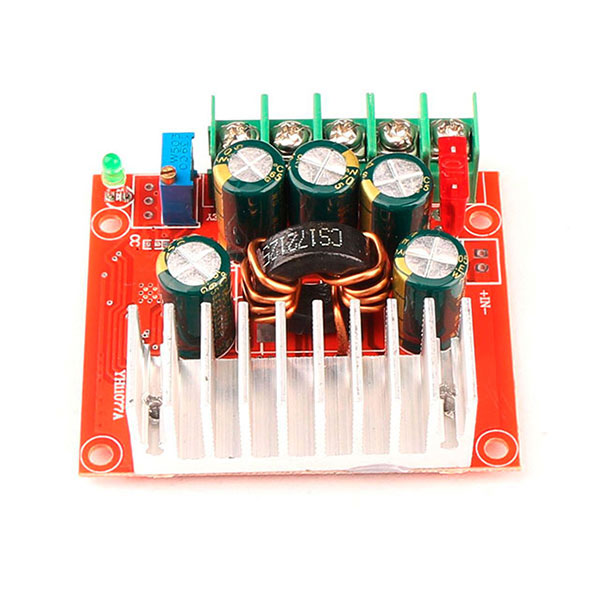

DC-DC step-down module auto / car Regulator / Regulator LTC3780 high efficiency solar wind product description Size: 4-32V to 0.8-32V 100W Module parameters: Module Name: 8A automatic lifting module Module Properties: Non-isolated Synchronous Rectifier Automatic Buck Module Input voltage: 4-32V Input current: 8A (MAX) peak 10A (6A long-term work) Quiescent current: 5mA Output voltage: 0.8-32V continuously adjustable, the default output is 12V Output current: 8A (maximum) peak 10A (6A long-term work) Operating temperature: -40 to +85 degrees Working frequency: 200KHz Conversion efficiency: up to 98% Overcurrent protection: Yes Short circuit protection: (input 10A fuse) double circuit protection Over-temperature protection: Yes, if the temperature is too high, it will automatically reduce the output voltage Input Reverse Polarity Protection: No, (connect the diode in series with the input, if necessary) Wiring: Free solder wire terminal output
