DC-DC Digital Boost 5-45V Output 5A XH-M411

Product Features
Miniature Digital DC-DC Boost Converter Module with 3V-35V Input and 5-45V Adjustable Voltage Output
The on-board 3-digit LED shows the input / output voltage and is controlled by the pushbutton switch
Maximum current output: 5A, board size: 72X48X16mm / 2.83X1.89X0.63inch (L * W * H)

product description

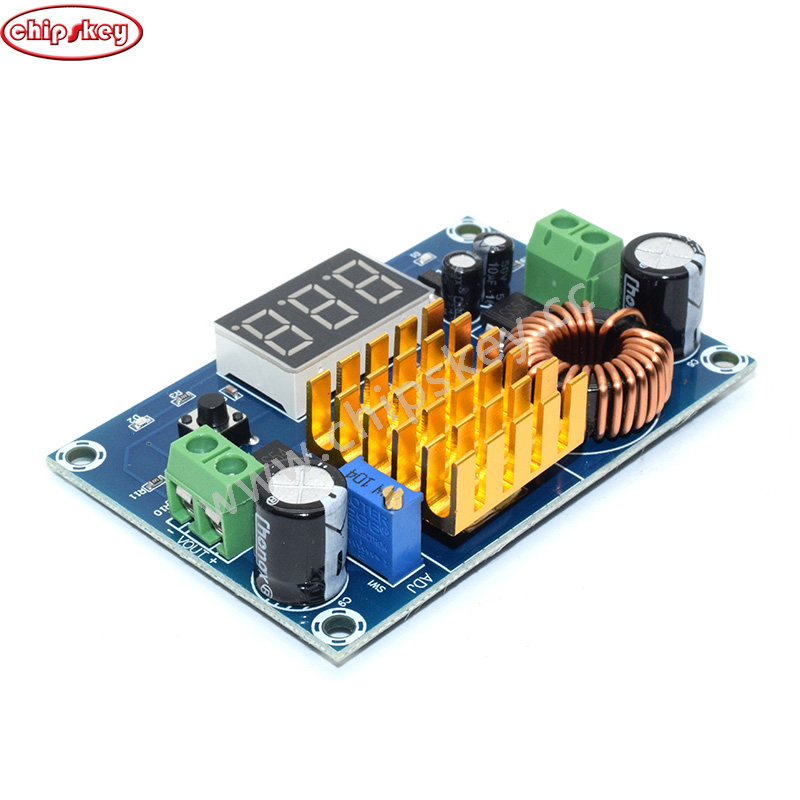

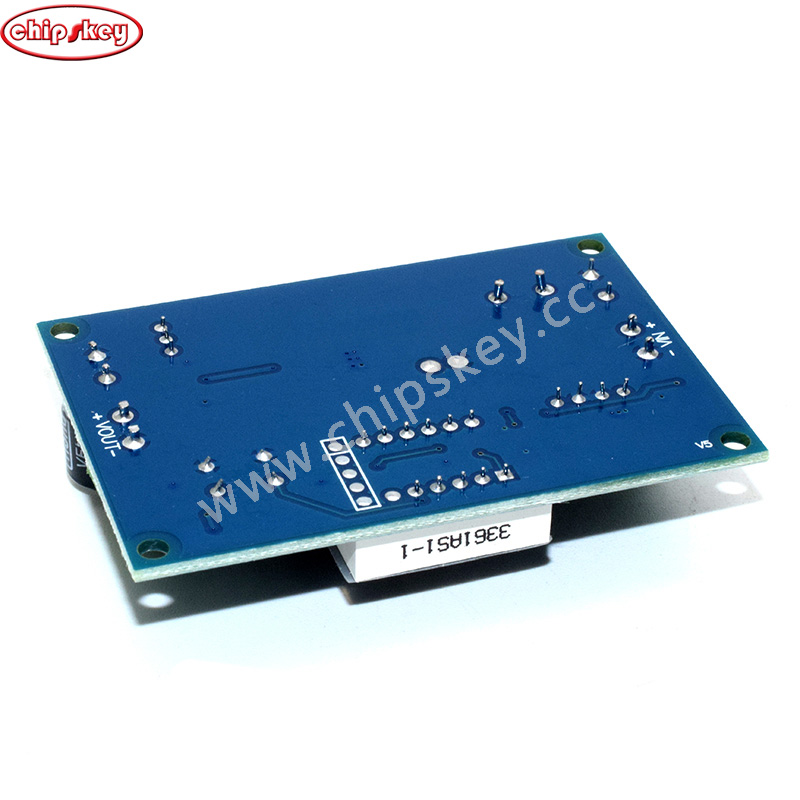

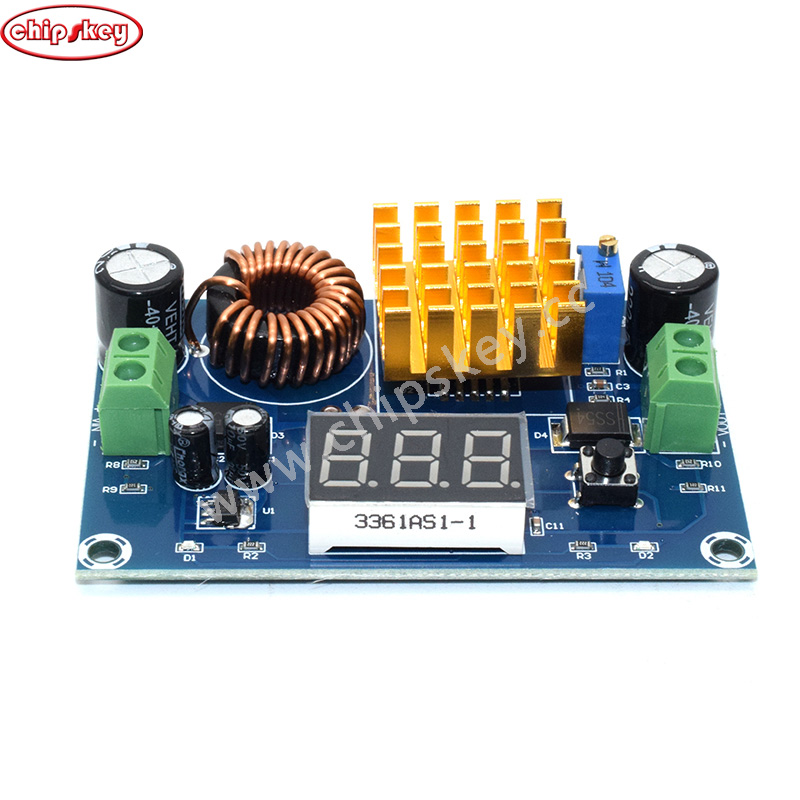

This is a DC-DC boost converter module with an XL6019 boost chip that supports 3V-35V input and 5V-45V adjustable voltage output with high current output up to 5A. The on-board potentiometer and 3-digit red LED for output voltage adjustment display the pushbutton-controlled input / output voltage for easy operation.

Product Specifications:
Input voltage: DC 3-35V
Output voltage: 5V-45V
Maximum current output: 5A
Board size: 72X48X16mm / 2.83X1.89X0.63inch (L * W * H)
package:
1X Digital DC to DC Boost Regulator

Specifications:
1. Voltmeter measurement error of ± 0.1V, the measurement range of 5-30V (less than 5V when the input voltage is not displayed)
2. Rotate the potentiometer clockwise to increase the output voltage (adjust the potentiometer, the output voltage constant, turn the potentiometer counterclockwise several times)

Product Details
Product Size: 2.8 x 1.9 x 0.6 inches
