3S 12V 10A 18650 Lithium Battery Charger Protection Board Module , 11.1V 12.6V With Over-Charge Over-Discharge , Over-Current , Short Circuit Protection Function
Specifications:
Input voltage: 12.6V
Over-charge voltage range: 4.25-4.35v ± 0.05v
Over-dischage voltage range: 2.3-3.0v ± 0.05v
Size: 50 x 16 x 1.0mm
Maximum operating current: 5-8A
Maximum instantaneous current: 9-10A
Operating temperature: -40 -- +50 ℃
Storage conditions: -40 -- +80 ℃
Quiescent current: less than 6uA
Effective life: more than 30,000 hours
Internal resistance: less than 60mΩ
Short circuit protection: protection, delay self-recovery.

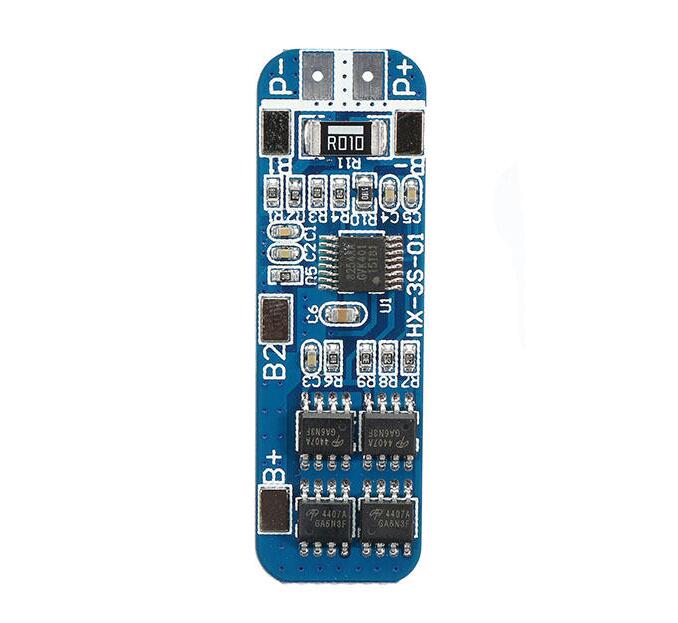

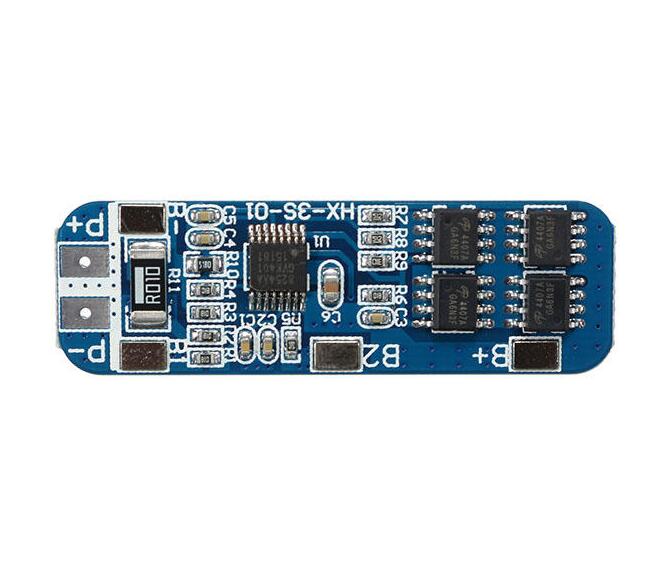

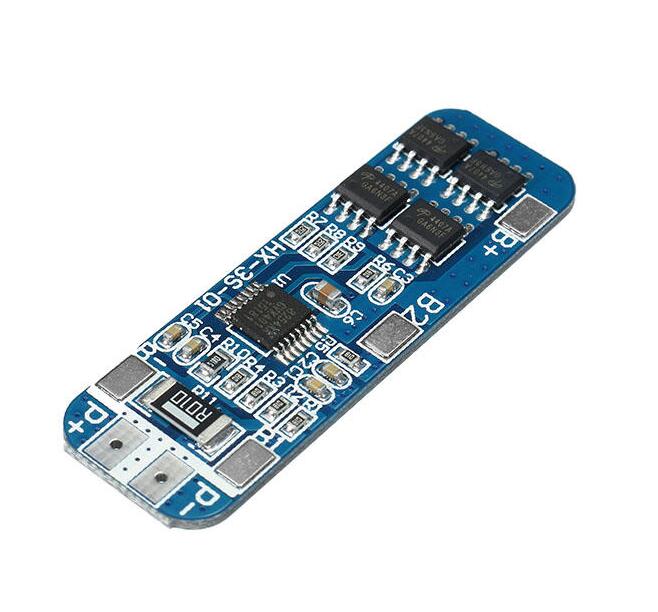

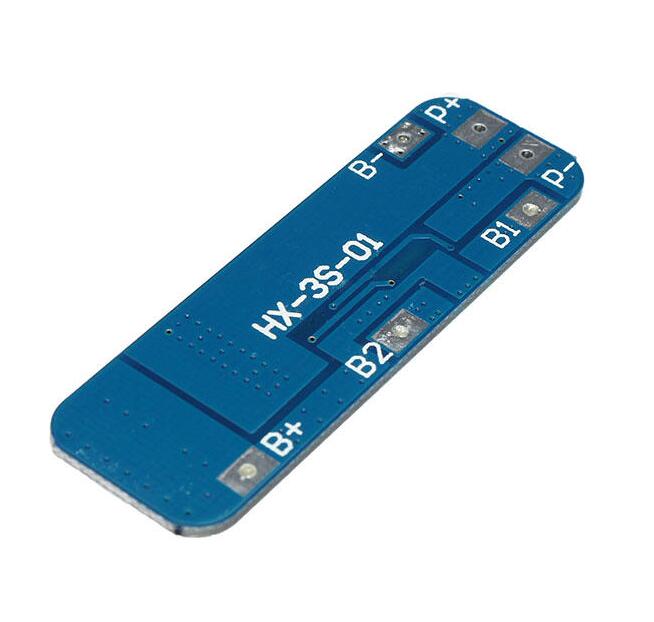

The protection board size and device description
The protection board size is 50 x 16 x 1.0mm, components for the S-8254AA protection chip and genuine FDS 4435A x 4
