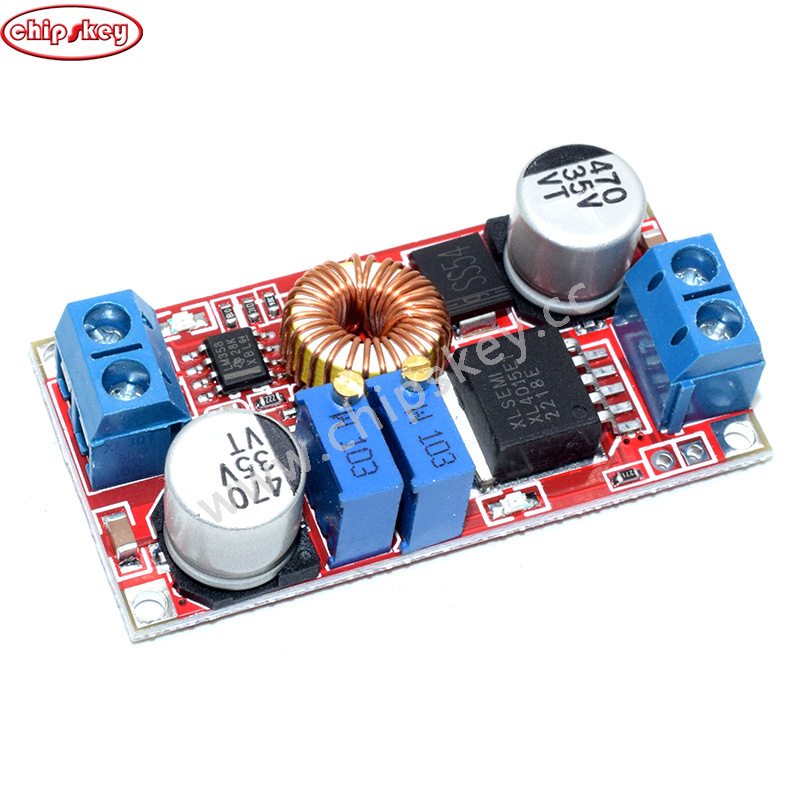

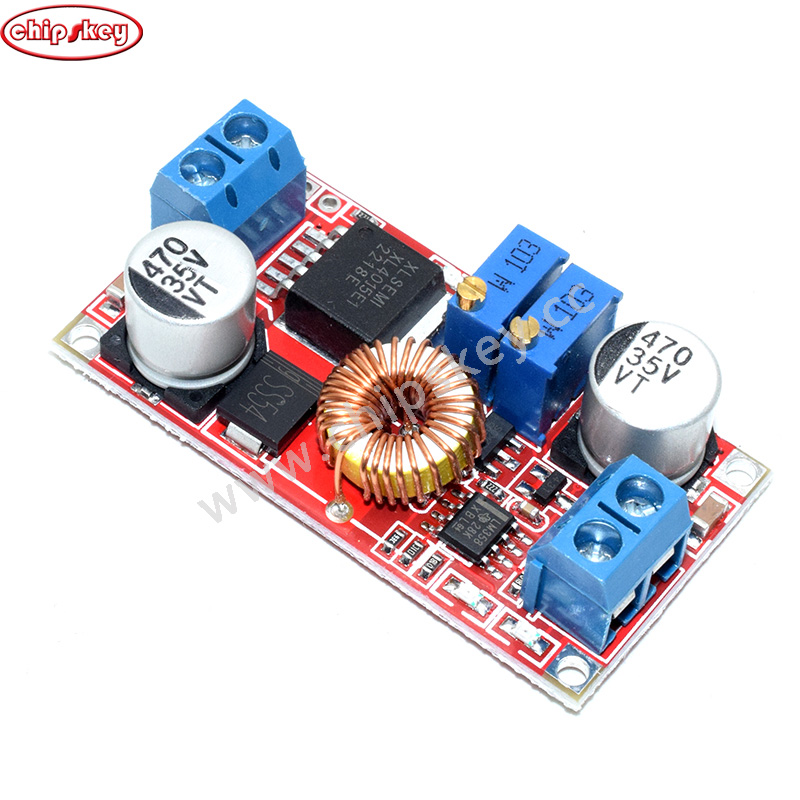

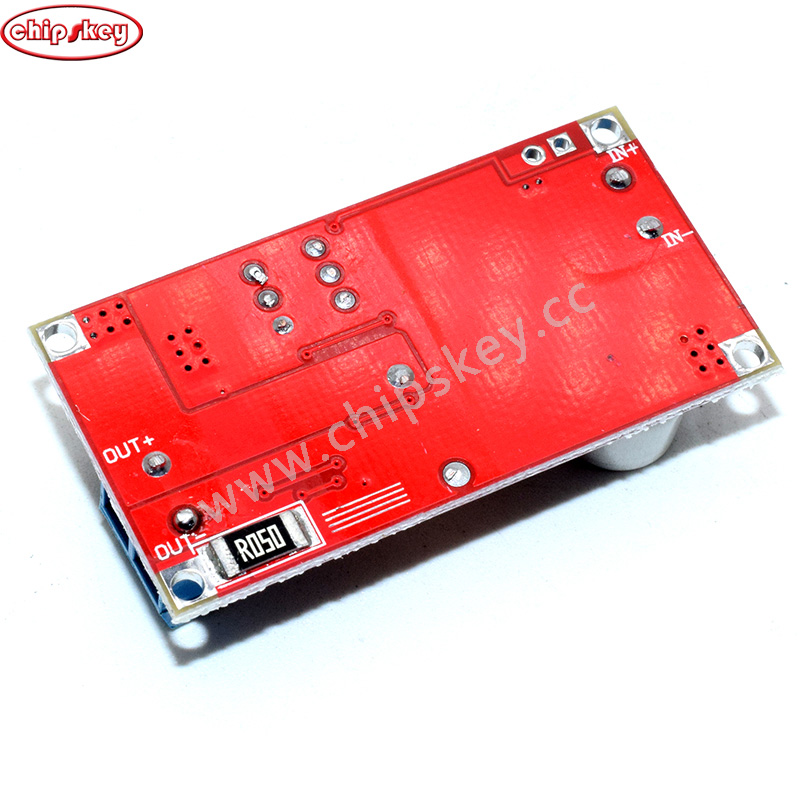

Product Features Power, current output, high efficiency, small output ripple. As a variety of lithium / nickel-cadmium / nickel-metal hydride battery charger. Module Properties: Non-isolated constant current and voltage modules. Shor circuit protection and thermal protection, safer and more durable. The module to the core chip, stable operation. product description Features: High power and current output, high efficiency, low output ripple. As a variety of lithium / nickel-cadmium / nickel-metal hydride battery charger. Module Properties: Non-isolated constant current and voltage modules. Shor circuit protection and thermal protection, safer and more durable. The module to the core chip, stable operation. Specifications: Output current: maximum adjustable 5A Output voltage: 1.25V-30V Input voltage: 5V-32V Output power: 75W maximum Working frequency: 180KHz Output ripple: 50mV (max) 20M bandwidth Operating temperature: -40 ℃ to +85 ℃ Voltage regulation rate: ± 2.5% Load regulation: ± 0.5% Conversion efficiency: up to 96% Shor Circuit Protection: Yes (below 8A) Overheat protection: yes Size: 51 x 26 x 15mm (LxWxH)
