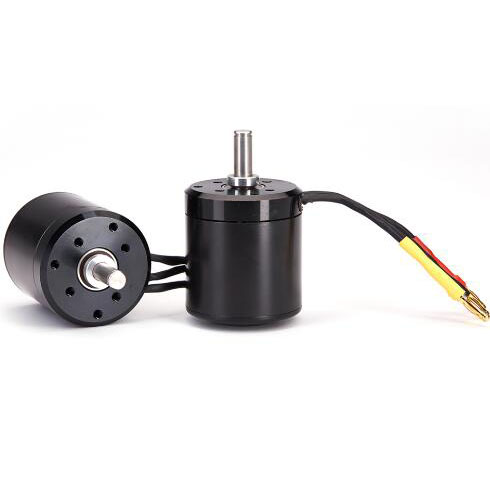

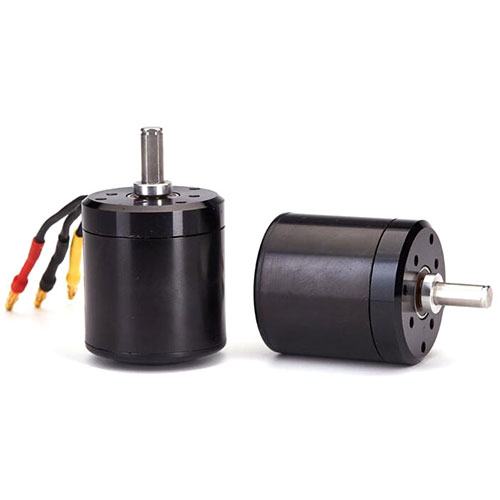

N5065 270KV Heavy Duty Brushless Induction Motor 2.6 KG 3-8 S For skateboarding ? Features: 1. Practical, high-quality long-term use Low energy consumption 3 small, convenient, easy to replace 4. CNC machining of steel aluminum parts 5. Stable performance 6. Designed for electric skateboarding
|
N5065 |
|

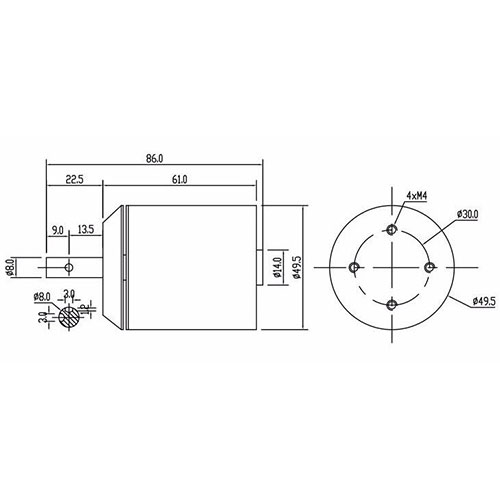

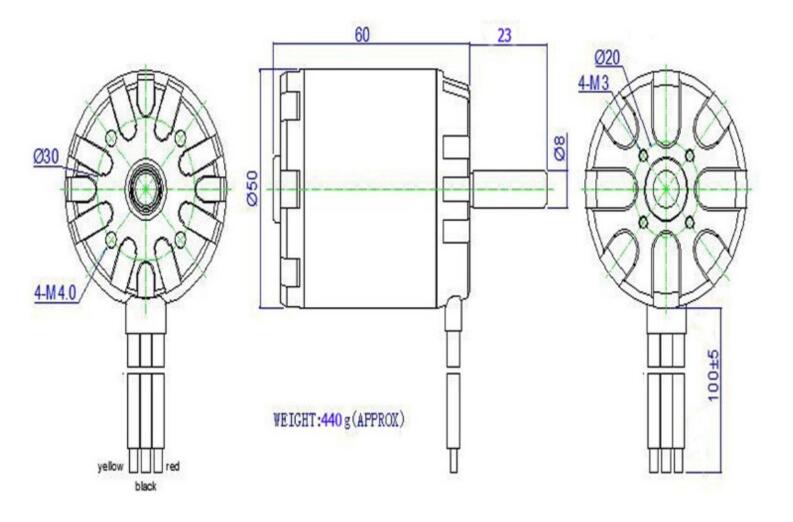

Motor outlinec |
Body diameter |
50mm |
Machine Height |
60mm |
|
Shaft diameter |
8mm |
Flatness thickness |
|
|
Output shaft length |
24mm |
Flatness length |
|
|
Top mounting hole spacing |
30mm |
Bottom mounting hole spacing |
22mm |
|
Mounting hole size |
M4*4 |
|
|
|
Banana head |
4.0/3.5 |
weight |
442g |
|
parts |
Cross * 1, propeller seat * 1, propeller head * 1, matching screw * 4 |
|
Motor performance |
maximum power |
1800W |
Hall angle |
60 |
|
No load current |
0.5-1A |
Maximum current |
80A |
|
Recommended voltage |
24-36V |
Kv value |
270-400kv |
|
No load speed |
6480-9600rpm |
torque |
1.5-2N/m |
|
|
No load speed=voltage * kv value |
|
|
When the kv value increases, the speed increases and the torque decreases; The kv value decreases, the speed decreases, and the torque increases |
