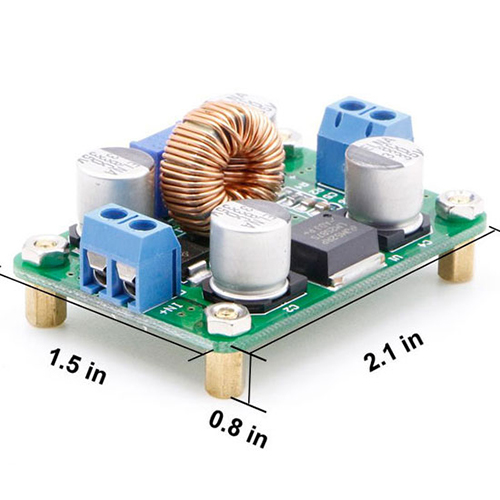

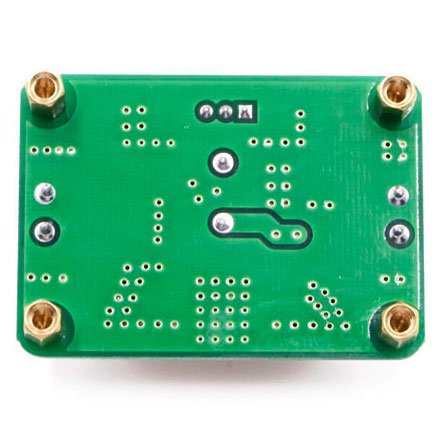

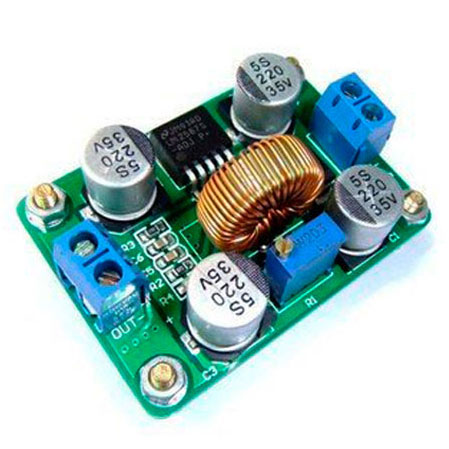

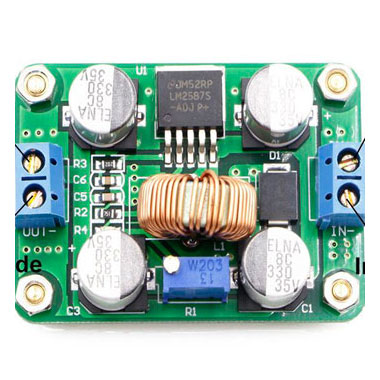

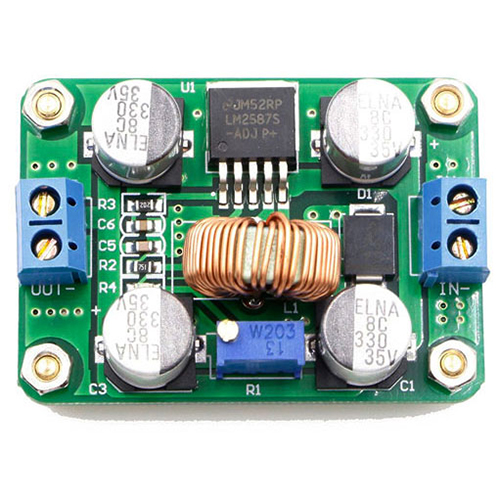

DC/DC 3.5-30V to 4.0-30V Booster Converter Step Up Voltage Regulator LM2587

Product description DC/DC 3.5-30V to 4.0-30V Booster Converter Step Up Voltage Regulator LM2587 Volume: length (3.8) * W (5.2) * (2.0) (CM) Weight 32G Item: LLL-DY-01 Note: If the output voltage is not higher than the input voltage, please adjust potentiometer clockwise, the output voltage will rise, please do not counterclockwise adjustment when you test the module in the case of high input voltage will be damaged or even damaged! Indicators: Input voltage range: 3.5V-30V (output set voltage higher than the input voltage must be guaranteed) Output voltage range: 4.0V-30V Input maximum current: 5A (based on power conservation under nominal conditions the output current Uin * Iin * efficiency = Uout * Iout) Continuous operating current: 3A (good ventilation conditions, the output voltage and input voltage ratio can not be greater than 3)
