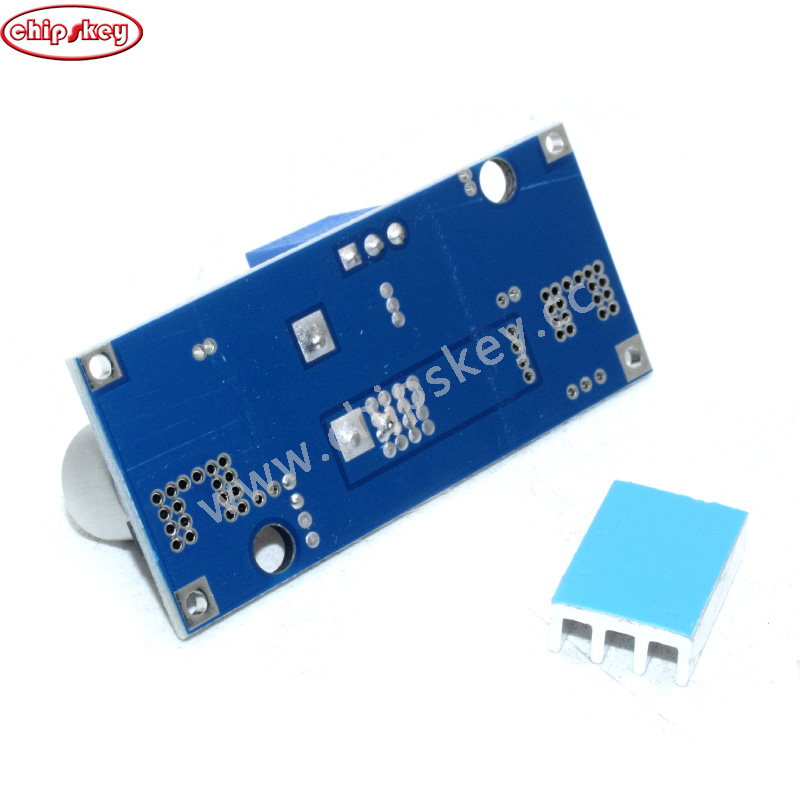

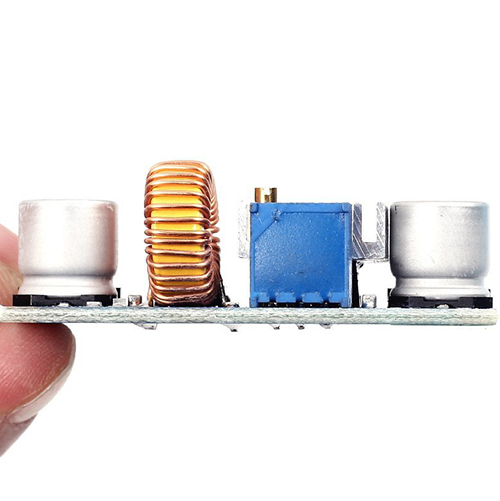

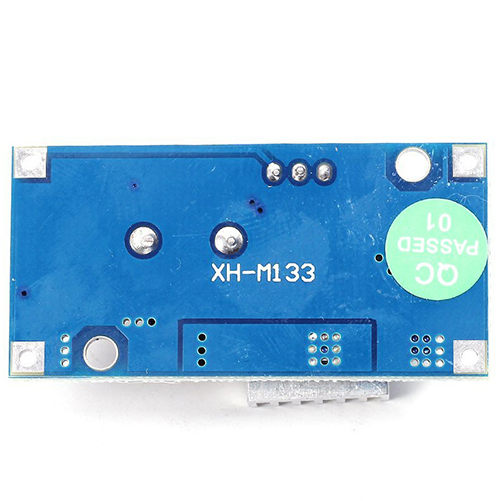

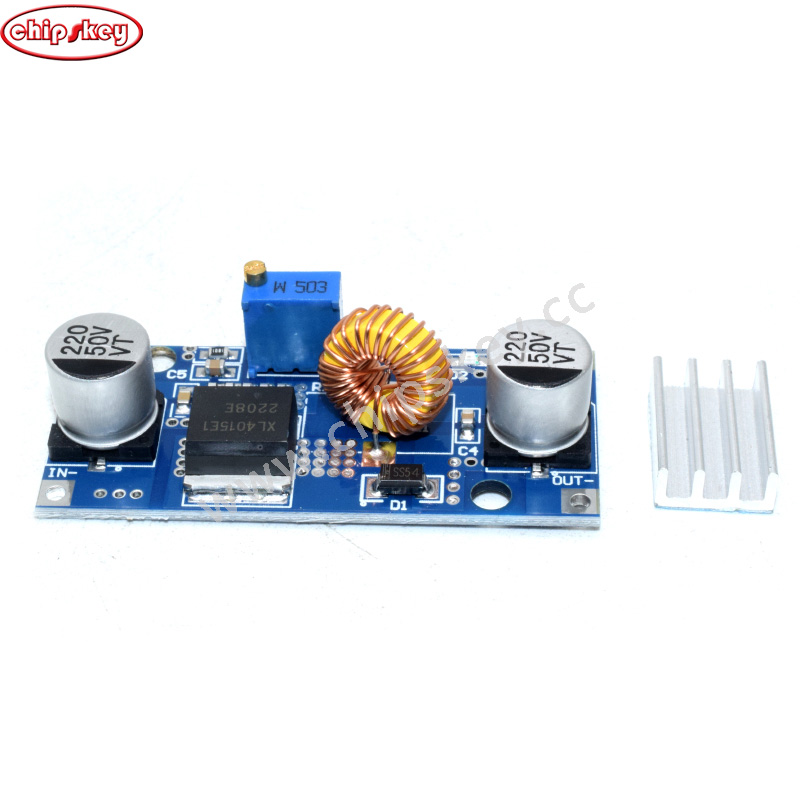

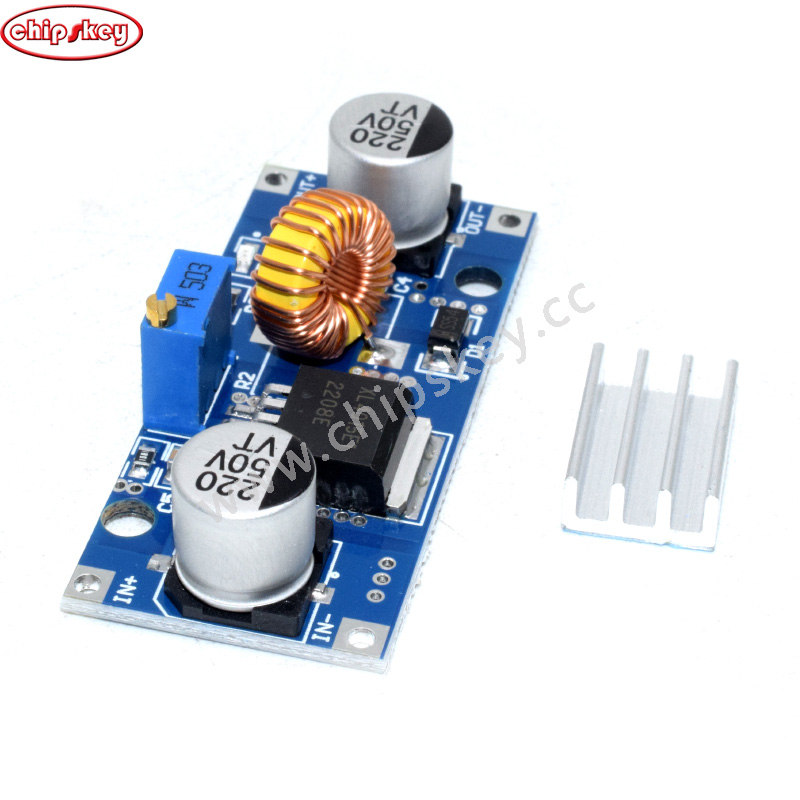

XL4015 DC-DC Converter Buck 4-38V to 1.25-36V Voltage Power Supply Module 5A

Product Features Small DC-DC step-down regulator with XL4016 step-down chip for short circuit protection Up to 96% voltage conversion and up to 5A high current output, adjustable contact voltage output The onboard potentiometer that regulates the output voltage and power light displays the module status Input Voltage: DC 4-38V, Output Voltage: 1.25V-36V, Board Size: 49X26X19mm / 1.93X1.02X0.75inch (L * W * H) product description This is a DC-DC buck regulator module with XL4015EN step-down chip, high efficiency up to 96%, high current output up to 5A. On-board potentiometer, with power indicator and short circuit protection to regulate the output voltage, ideal for DIY power supply. Product Specifications: Input voltage: DC 4-38V Output voltage: 1.25V-36V Maximum conversion efficiency: 96% The maximum output current: 5A Frequency: 180KHz Board Size: 49X26X19mm / 1.93X1.02X0.75inch (L * W * H) Package contains: 2X DC to DC buck regulator board
