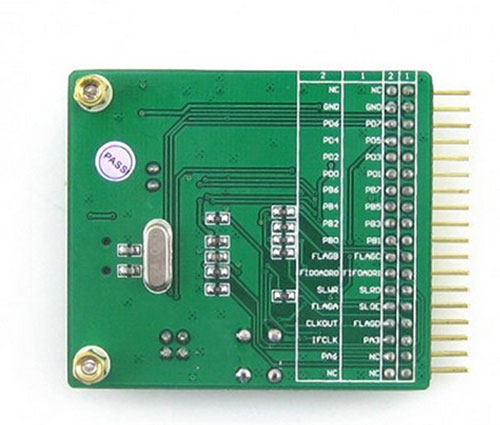

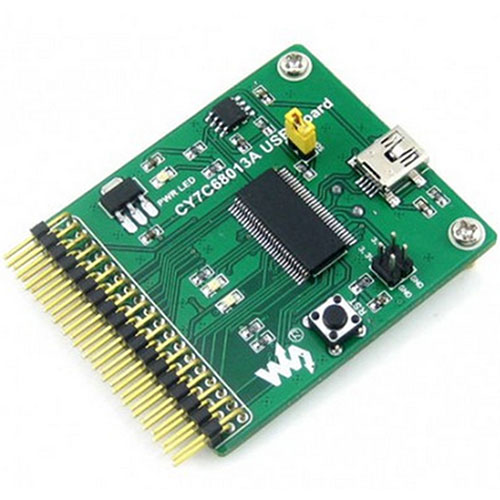

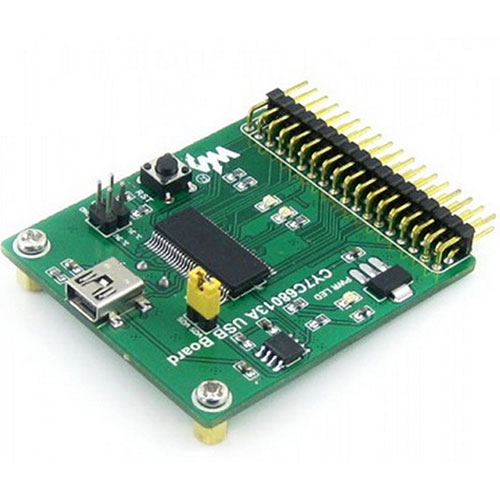

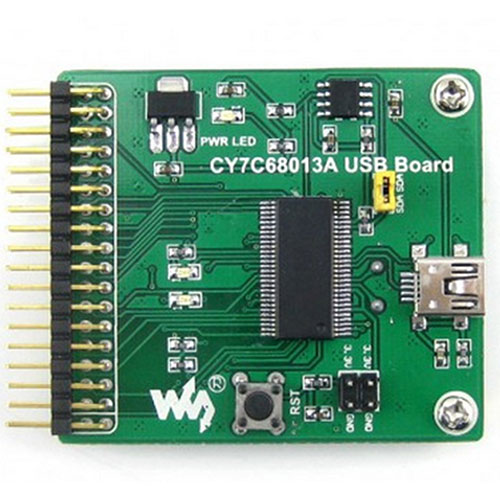

CY7C68013A USB Board (mini) EZ-USB FX2LP USB Converter Evaluation Development Module Kit

product description description: CY7C68013A USB Board (Mini) is an accessory board that provides Hi-Speed ??USB interface for your application board, CY7C68013A, 24LC64 (EEPROM). Features: USB 2.0 - USB-IF high-speed certification Single Chip Integrated USB 2.0 Transceiver, Smart SIE, and Enhanced 8051 Microprocessor For FX2 shape and function compatible Pin compatible Object code ? Function compatible (FX2LP is superset) ? Ultra-low power consumption: ICC does not exceed 85 mA in any mode ? Ideal for bus and battery powered applications Software: 8051 code runs on: ? Internal RAM, downloaded via USB Internal RAM, loaded from EEPROM External storage device (128-pin package) 16 KB on-chip code / data RAM Four programmable BULK / INTERRUPT / ISOCHRONOUS endpoints ? Buffering options: double, triple and quad Additional Programmable (BULK / INTERRUPT) 64 Bytes Endpoint 8 or 16 bit external data interface Intelligent Media Standard ECC Generation GPIF (Universal Programmable Interface) - Allow direct connection to most parallel interfaces Release list: 1 * CY7C68013A USB board (mini) note: Due to different production batches, the color of the product may vary.
