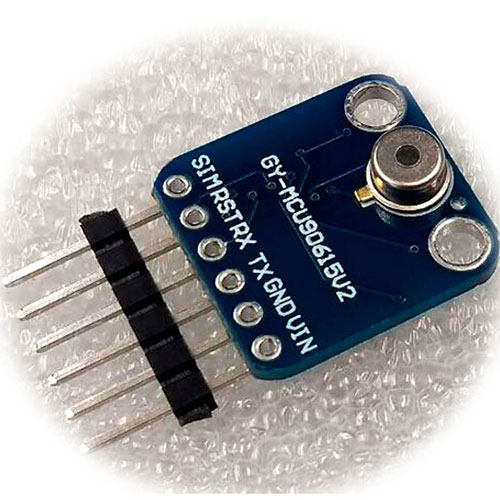

contact infrared thermometer ear thermometer infrared temperature measurement module GY-MCU90615V2

GY-MCU90615V2 new serial non-contact infrared thermometer infrared temperature measurement module ? product description Power: 3-5v Currently: 5ma Baud rate: 9600 or 115200 Size: 18mm * 16.5mm * 5mm (L * W * H) Mounting hole 3mm, mounting hole spacing 11.5mm, pin spacing 2.54mm ? Agreement ?Byte serial send command: (1), serial communication parameters (baud rate default 9600bps, can be set by software) ??????????Baud rate: 9600 bps Parity: N Data bits: 8 Stop bits: 1 Baud rate: 115200bps Parity: N Data bits: 8 stop bits: ? (2) into the command module, sent by the external controller to the GY-MCU90615 module (hex) ???1, title: 0xa5 Command format: + command + header checksum (8bit) (eg automatic temperature read command = 0xA5 + 0x45 + 0xEA) 2, instructions: Continuous output command: ???????0xA5 + 0x45 + 0xEA ---------------- Temperature data (the module returns the data type 0x45) Query output command: 0xA5 + 0x15 + 0xBA --------------- Temperature data (the module returns the data type 0x45) : (Configuration instructions take effect after the power is restarted) Baud rate configuration: 0xA5 + 0xAE + 0x53 --------------- 9600 (default) 0xA5 + 0xAF + 0x54 --------------- 115200 Powered automatically send temperature data configuration: 0xA5 + 0x51 + 0xF6 --------------- automatically output after the power temperature data (default) 0xA5 + 0x52 + 0xF7 --------------- The power supply can not automatically output the temperature data ? Agreement ?Serial port to receive: (1), serial communication parameters (baud rate default 115200bps, can be set by the software) ??????????Baud rate: 9600 bps Parity: N Data bits: 8 Stop bits: 1 Baud rate: 115200bps Parity: N Data bits: 8 stop bits: (2), module output format, each frame contains 9 bytes (hexadecimal): ?Byte 0: 0x5A preamble flag Byte 1: 0x5A preamble flag Byte 2: 0X45 frame data type (0X45: temperature data) ?Byte 3: 0x04 Data Size (4 Data Set 2 below is taken as an example) ?Byte 4: 0x00 ~ 0xFF Data high 8 1 ?Byte 5: 0x00 ~ 0xFF Data 1 low 8 ?Byte 6: 0x00 ~ 0xFF Data high 8 2 Byte 7: 0x00 ~ 0xFF Data low 8 2 Byte 8: 0x00 ~ 0xFF checksum (front and accumulated data, leaving only the lower 8 bits) ? (3) data calculation method Temperature calculation method: High Temperature = 8 << 8 | Low 8 (Actual angle multiplied by 100) ???Example: Send Command: A5 45 EA, Receive Data: <5A-5A- 45-04C-78D-19-A7> ??Indicates TO (signed 16-bit, indicating the target temperature): TO = 0x0C78 / 100 = 31.92C ??Representative TA (Signed 16, on behalf of the ambient temperature): TO = 0x0D19 / 100 = 33.53C ? Description ?The module is the serial data output, the user sends the output command through the serial port connection, for example, 0xA5 + 0x45 + 0xEA to the module, the module will output the temperature data continuously; Query output can send 0xA5 + 0x15 + 0xBA to the module, the module will send back once Temperature data, the query frequency should be lower than 10hz, 10hz for higher use of continuous output mode, then send 0xA5 + 0x45 + 0xEA instruction
