Capacitive Soil Moisture

Product features
Supports Gravity 3-Pin Interface
Analog Output
includes an on-board voltage regulator which gives it an operating voltage range of 3.3 to 5.5V
compatible with low-voltage MCUs (both 3.3V and 5V logic)
Product description

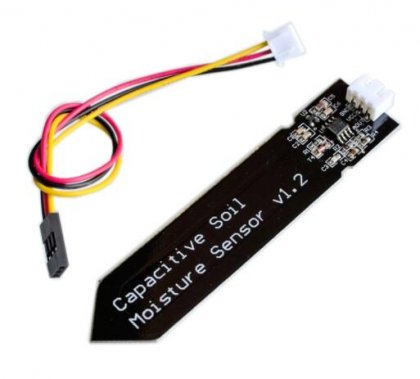

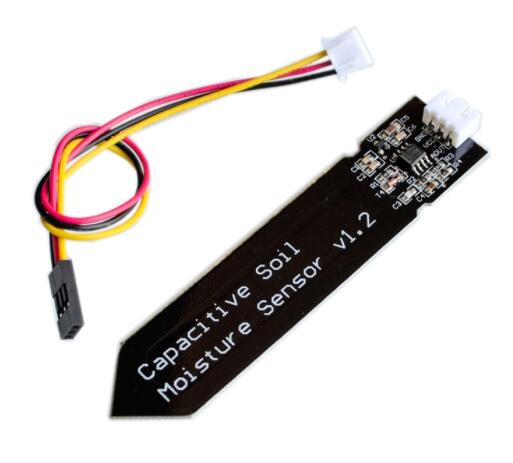

This product measures soil moisture levels by capacitive sensing, rather than resistive sensing like other types of moisture sensor. It is made of a corrosion resistant material giving it a long service life. Insert it into soil and impress your friends with the real-time soil moisture data! The product includes an on-board voltage regulator which gives it an operating voltage range of 3.3 to 5.5V. It is compatible with low-voltage MCUs (both 3.3V and 5V logic). To make it compatible with a Raspberry Pi, an ADC converter is required. This sensor is compatible with our 3-pin "Gravity" interface, which means it can be directly connected to the Gravity I/O Expansion Shield. APPLICATIONS Gardening & Farming Moisture Detection Intelligent Agriculture FEATURES Supports Gravity 3-Pin Interface Analog Output SPECIFICATION Operating Voltage: 3.3 to 5.5 VDC Output Voltage: 0 to 3.0VDC Interface: PH2.0-3P Dimension: 98mm * 23mm (3.86in x 0.905in) Weight: 15g PACK LIST Capacitive Soil Moisture Sensor *1 Analog Sensor Cable *1
