Cabinet light touch sensor switch/open and close light bar switch/intelligent touch switch
Input voltage: DC5V-24V
Output voltage: equal to input voltage
Load power: 72W (MAX)
Load current: Resistance 3A (MAX)
Standby current: 10-15mA
Standby power consumption: ≈ 0 01W
Working temperature: -25C -85C
Output frequency: 32KHZ
Product weight: 3 grams

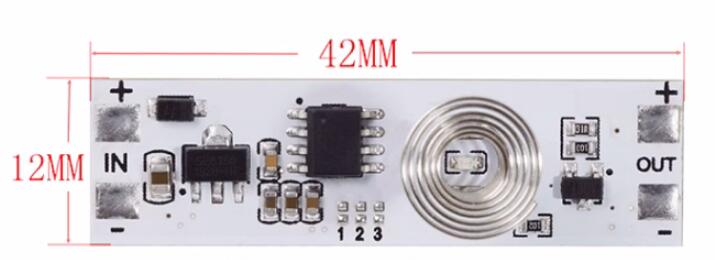

Product size: 42mm * 12mm * 14mm
Kind reminder:
1. The input voltage cannot be lower than 5V or higher than 24V, and 12V is optimal.
2. The load power cannot exceed 72W, otherwise there will be induction and the load will not act.
3. Do not connect the input and output in reverse. IN is the input and OUT is the output, otherwise it will burn out the circuit.
Application scenario:
Wardrobe cabinet light, display cabinet light, LED hard light strip, light strip, aluminum groove light, touch eye protection
Table lamps and so on. (Applicable materials for panels: insulation materials, such as organic glass, ordinary glass, steel)
Chemical glass, plastic, wood, paper, ceramics, stone, etc
