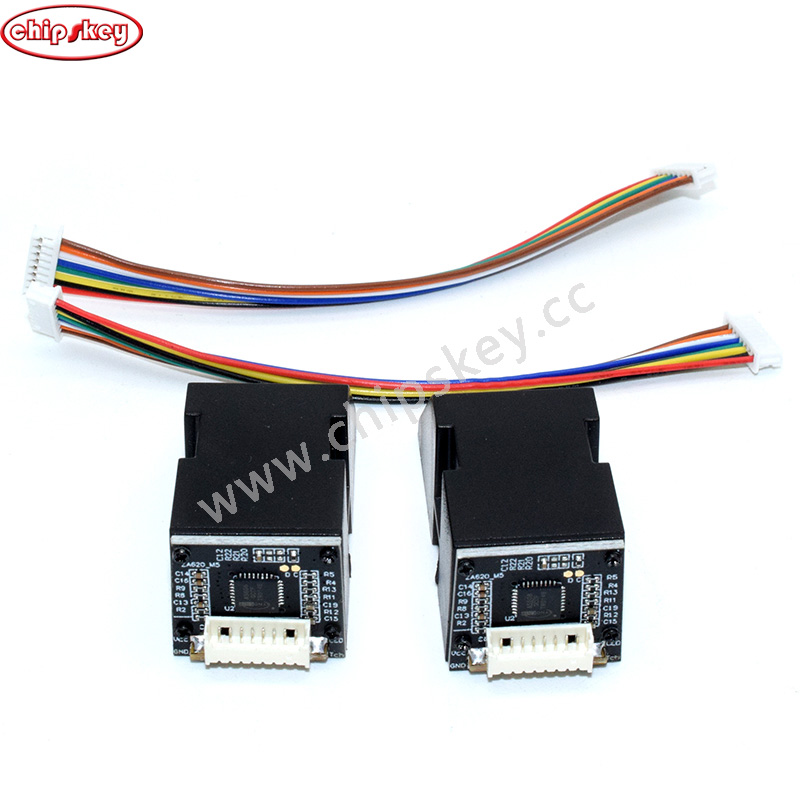

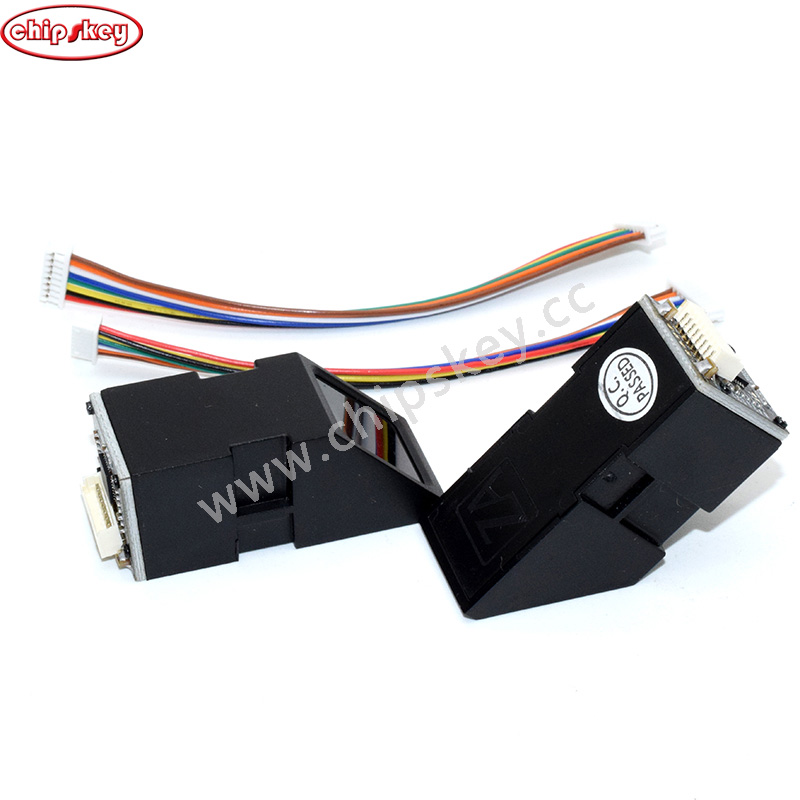

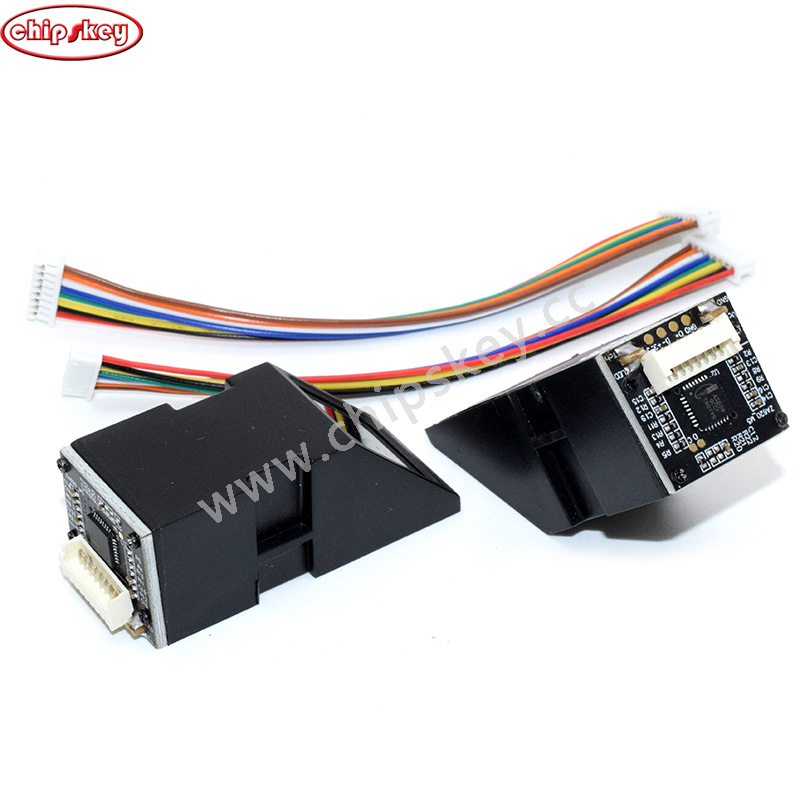

AS608 Optical Fingerprint Sensor Fingerprint Module
  • AS608 Optical Fingerprint Sensor Fingerprint Module
  • AS608 Optical Fingerprint Sensor Fingerprint Module

AS608 Optical Fingerprint Sensor Fingerprint Module

  • SKU: 39119
780:viewed
US$8.18
  (8972 Pieces available)
Hot Products
  • Description
  • Customer Reviews
  • Payment & Shipping

AS608 Optical Fingerprint Sensor Fingerprint Module



Specifications:



Resolution: 500dpi

Supply current: <60mA

Supply voltage: 3.3V

Fingerprint image entry time: <1.0 seconds

Peak current: <60mA

Window area: 15.3x18.2MM

Communication Interface: USB/UART



How the Module Works:



1. Fingerprint features

The fingerprint algorithm extracts features from the acquired fingerprint image and represents the fingerprint information. The storage, comparison and search of fingerprints are all done by operating fingerprint features.

2. Fingerprint processing includes two processes: fingerprint registration process and fingerprint matching process (in which fingerprint matching is divided into fingerprint comparison (1:1) and fingerprint search (1:N) two ways).

3. When the fingerprint is registered, two fingerprints are entered for each fingerprint, and the input image is processed twice. The synthesis module is stored in the module.

4. When the fingerprint is matched, the fingerprint sensor is used to input the fingerprint image to be verified and processed, and then it is compared with the fingerprint module in the module (if it is matched with a module specified in the module, it is called fingerprint comparison mode, ie, 1:1 mode. If matching with multiple modules is called fingerprint search, ie 1:N mode, the module gives the matching result (pass or fail).
