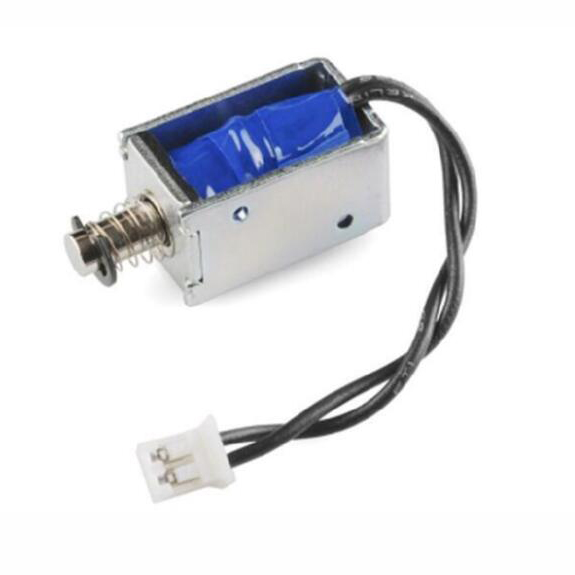

Pull Type Electric Solenoid Electromagnet 10mm 100g 12VDC HCNE1-1039

HCNE1-1039 frame type electromagnet 12V / 24V DC push-pull electromagnet Custom processing: yes Category: Soft Magnetic Materials Current characteristics: DC Uses: traction Size: 20x26x39.5 (mm) Working voltage: 24 V) First suction: 25 (N) Pull electromagnet electromagnet 10mm 100g 12VDC HCNE1-1039 application 1, game consoles Various options slot coin 2, vending machines Various Vending Machines Coin Change Vending Machine 3, office equipment Computer Equipment List Fax Machines Daka Copier Typewriter Cash Register Plotter Open Drink Machine 4, transport equipment Auto - lock car seat belt electromagnetic valve parking facilities 5, household appliances Recorder, VCR keyboard automatic knitting machine karaoke OK machine Other Robot packaging machine stamping equipment breeding equipment fire alarm water solenoid valve Features 1, easy to connect fixed load 2, good temperature stability, extend product life and ensure good performance 3, E button and rubber gasket silent solenoid valve operation 4, low friction to ensure high efficiency, extend the service life 5, the design is simple and reliable General specifications Operating conditions: 1, the working temperature: between the solenoid valve is not solidified -5 ℃ to 40 ℃ 2, working humidity: solenoid valve is not cured between 45% to 85% 3, storage temperature: solenoid valve does not coagulate ℃ to 75 ℃ 4, storage humidity: solenoid valve does not solidify 0% to 95% Performance is as follows: Temperature: 65 or lower (Class A) Life: Under load conditions, you can use more than one million cycles test environment: 1, the ambient temperature: 23 ± 2 ℃ 2, relative humidity: 50 ± 10% 3, atmospheric pressure: 1013MPa 4. Insulation resistance: insulation resistance measurement error of 500VDC, insulation resistance between the coil needs at least 100MΩ and yoke Dielectric strength between 5 and 5: Dielectric strength between coil and yoke should be able to withstand at least 600 VAC / 1 min
