Arduino Mini MP3 Player mini

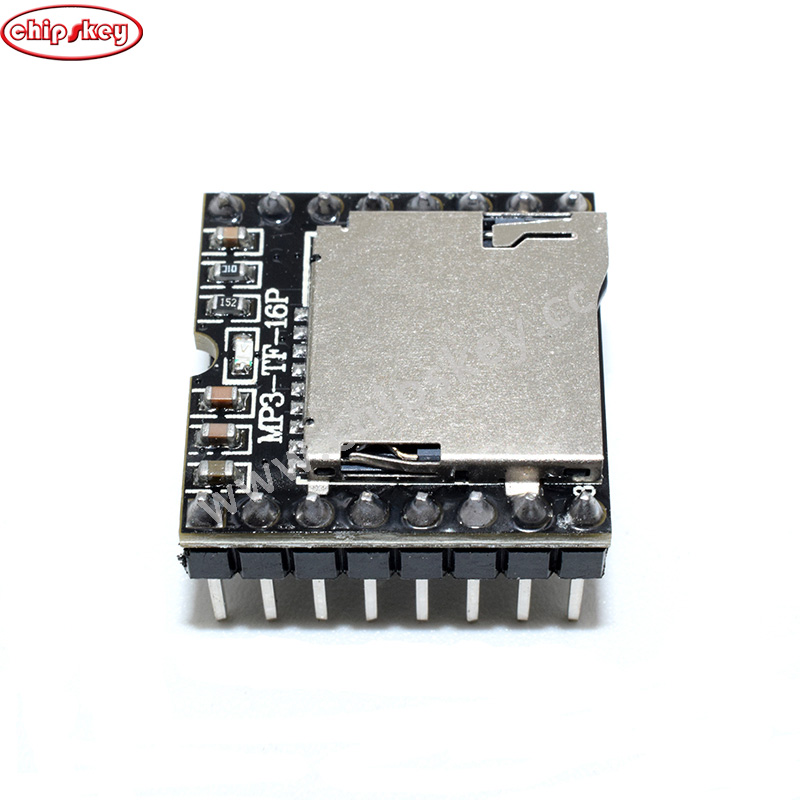

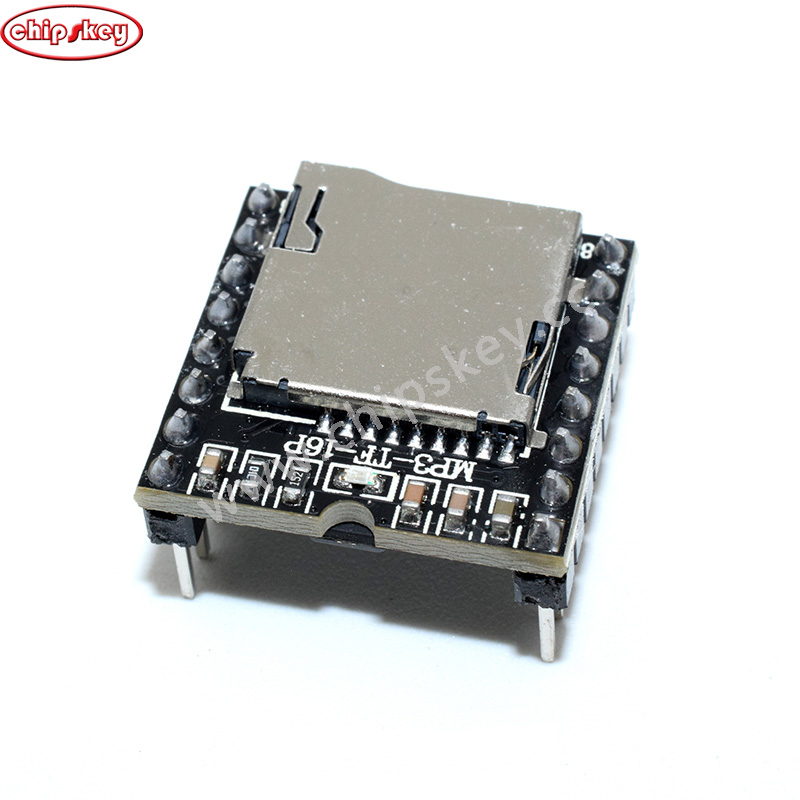

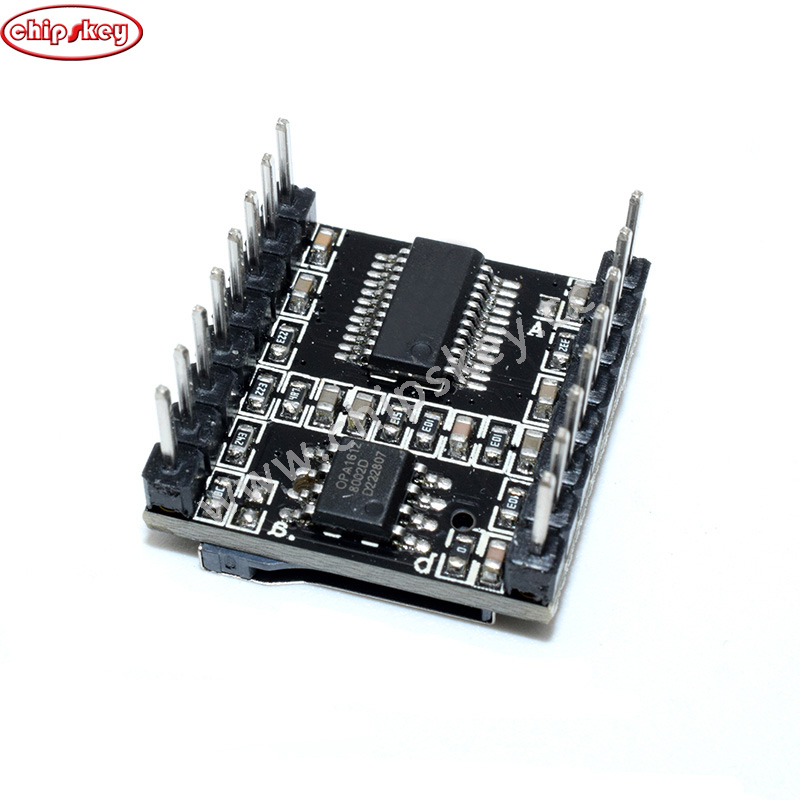

Product Features TF card U disk mini MP3 player audio voice module Supports sampling rate (KHz): 8 / 11.025 / 12/16 / 22.05 / 24/32 / 44.1 / 48 24-bit DAC output, dynamic range support: 90dB, SNR support: 85dB Full support for FAT16, FAT32 file system, maximum support 32G TF card, support U disk for 32G, 64M bytes for NORFLASH There are many control modes to choose from. IO control mode, serial mode, AD key control mode feature: TF card U disk mini MP3 player Arduino DFPlay audio voice module board Features: 100% new, high quality! This is a compact and cheap MP3 module that can be connected directly to the speakers. Modules with battery power, speakers and keyboards can be used individually or through a serial interface such as an Arduino UNO or any microcontroller with a serial port module. The module itself perfectly integrates hardware decoding of MP3, WAV, WMA. The software supports TF card drivers, support FAT16, FAT32 file system. You can play the specified music through a simple serial command, and how to play music and other functions, without the cumbersome low-level, easy to use, stable and reliable. Product Specifications: 1. Supports sampling rate (KHz): 8 / 11.025 / 12/16 / 22.05 / 24/32 / 44.1 / 48 2. 24-bit DAC output, dynamic range support: 90dB, SNR support: 85dB 3. Full support for FAT16, FAT32 file system, the maximum support 32G TF card, support U disk for 32G, 64M bytes for NORFLASH There are a variety of control modes to choose from. IO control mode, serial mode, AD key control mode 5. Broadcast language point function, you can pause the background music is playing. After playing the background of the ad to play the sound to continue playing 6. Audio data sorted by folder; supports up to 100 folders, each folder can be assigned 255 tracks 7. 30 adjustable volume, adjustable equalizer 6
