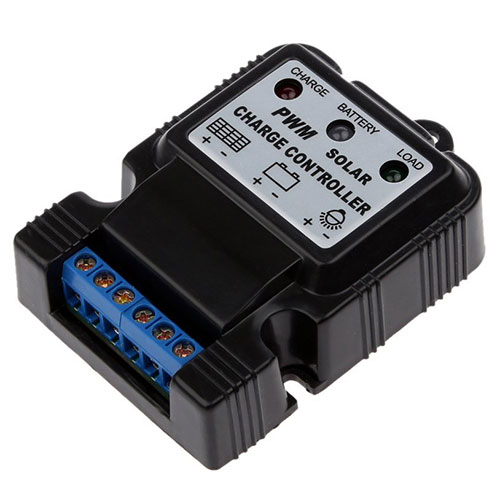

5A10A Solar Controller domestic. For example, LED lighting, compact lighting systems, emergency lighting,User instruction manual garden lighting, stair lighting, camouflage lights, street lighting, wireless Print version V3.1 communication, security alarm, border police, traffic warning lights, traffic lights, traffic yellow flashing lights, obstruction lights and so on.
Distinguished guests:
Thank you for selecting our product, please read the manual carefully before the usage.
Characteritics
1. Equipped with the MCU, artificially controlled.
2. Equipped with device to avoid the overcharge, over release, electronic short circuit, over loading, battery inversely connecting, solar battery inversely connecting.
3. Use the battery discharge rate characteristics to correct discharge control。
4.The series connection PWM circuit is implemented to form the major charging circuit,make the voltage loss half of or lower than the diode charging circuit, and the charging efficiency 3%-6% higher than the non-PWM.
5. The LED shows the batteries current situation to make the customer get the
Warnings for usage
1、The batteries has stored much energy,please keep the batteries from the information of the batteries. short circuit under any circumstances,we strongly recommend connecting the Three operating modes can be selected: normally open mode, the pure light
batteries with the fuse.control mode and light control plus timing mode.
2、Please avoid the short circuit wire and the terminal,for the wire and the The drawings of the controlling panel Cording diagram
terminal may generate voltage two times higher than the rated voltage of the controller.Please use the insulated tools while operating the controller.
3、Ensure the children keep away from the battery and the controller.
4、Please comply with the manufacturer`s safety advice.
5、Because of the equipment work may have a fever, please keep ventilation.
6、The device pay attention to water，moisture，in order to avoid damage to the equipment.
Suitable range
The controller is only applicable to solar power, rated voltage of11.1V
systems, battery of lithium battery cells..
Note: specifically how much battery charge, see the product model, product
can not be adapted to the va
The drawings of the controlling panel
 Cording diagram
Outline dimension and Installation dimension
