3.3V ADS1115 ADC Module for Raspberry Pi 3/2 / B + / I2C RPI ADS1115 ADC Analog to Digital Converter

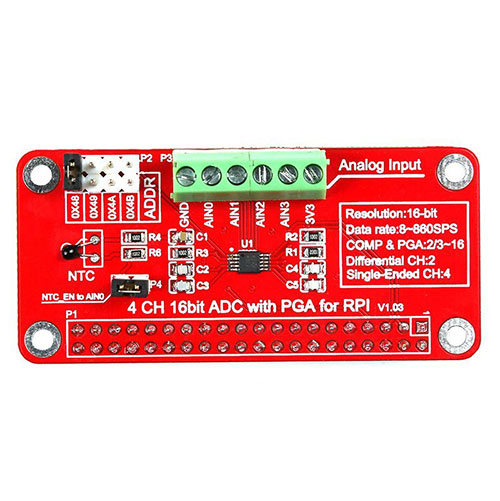

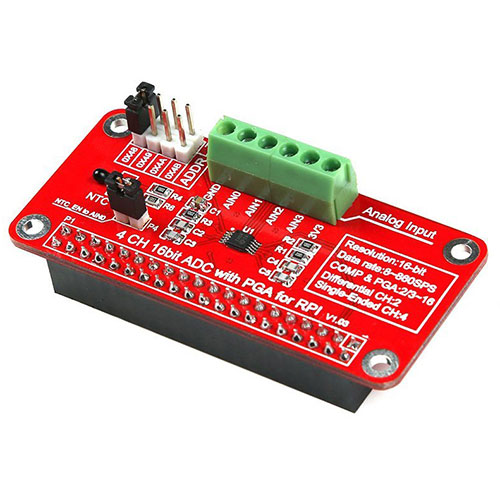

product description 16-bit I2C ADS1115 ADC module description The ADS1115 is a precision analog-to-digital converter (ADC) with 16-bit resolution in an ultra-small MSOP-10 package. The data is transmitted through the I2C-compatible serial interface and can select from four I2C slave addresses, using a single 3.3V power supply. It can be used to detect analog signals and convert them to digital signals. You can connect a handle or other analog sensors such as NTC, temperature, dust sensor and more. characteristic Size: 65.0 mm x 30.0 mm x 18.0 mm Analog input voltage: GND to VDD Programmable data rates: 8SPS to 860SPS Low internal drift: Voltage reference Internal PGA: Available Resolution of 16 bits I2C interface: Pin-selectable address Number of channels: 4 single-ended or 2 differential inputs Programmable comparators: 2/3 ~ 16 Internal NTC support: Available How to connect Just plug the module into GPIO. Note: Fit the pin of the first pin to your GPIO 1 pin. product information Package size 4.7 x 3 x 1.6 inches
