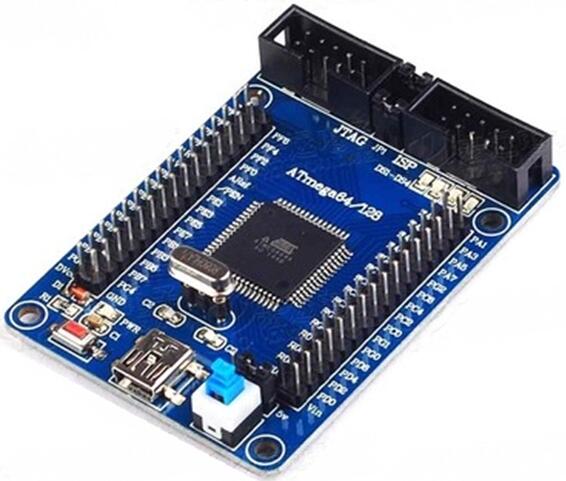

ATMEGA64 AVR Development Board
1. On board ATmega64A chip;
2. The reference voltage for AD conversion includes filtering inductors and capacitors;
3. Crystal oscillator holder, easy to replace the required crystal oscillator at will;
4. All 10 ports are led out and labeled;
5. Both ISP and JTAG interfaces are exported and labeled;
6. Reliable reset circuit;
7. Introduce up to four LED channels for simple testing;
8. MiniUSB power supply, onboard AMS1117-3.3 power chip, optional 5V or 3.3V operating voltage
9. PCB specification: 46.4 × 60.5 (mm)
