Product description

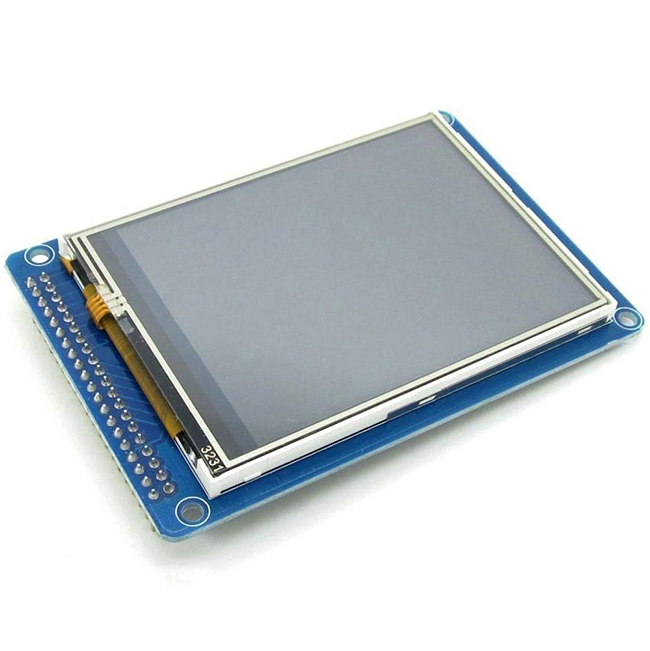

3.2" TFT LCD Screen Module.
Extensive bus interface.
Single chip solution for a liquid crystal QVGA TFT LCD display.
240RGB x 320-dot resolution capable with real 262,144 display color.
Support MVA (Multi-domain Vertical Alignment) wide view display.
Internal oscillator and hardware reset.
Partial drive function, enabling partially driving an LCD panel at positions specified by user.
Power saving functions: 8-color mode, standby mode, sleep mode.
Low -power consumption architecture.
Size: 94mm * 65mm.
TFT LCD Screen Module, 40pins interface, not just a LCD break but include the Touch , SD card and
Flash design. So it is a powerful extension module for your project.
The LCD in the TFT01 is 240374PQ . It is a 65K color , 320*240 (resolution),3.2 inch TFT LCD screen.
The LCD has a wide viewing angle , the contrast is also very suitable.
The Screen include a controller SSD1289, it is a support 16bit data interface , easy to drive by many
MCU like STM32 ,AVR and 8051.

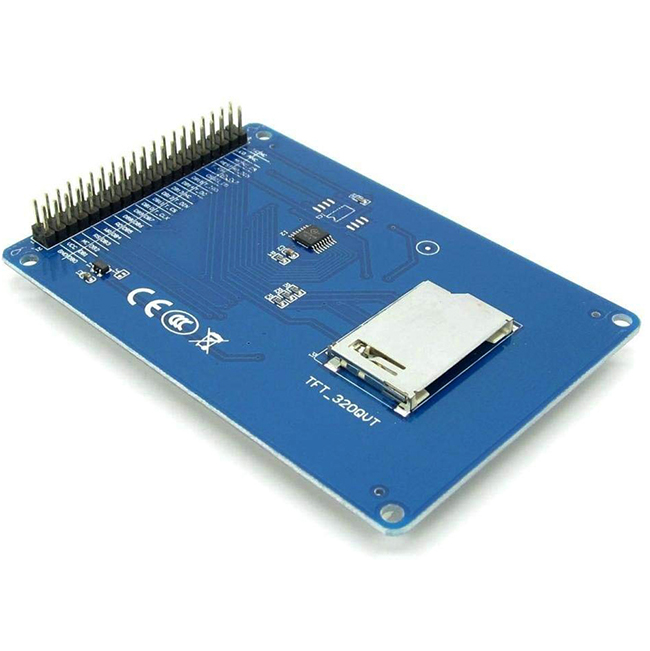

The TFT01_3.2 layout a 40 pins interface for your project , the interface include LCD bus, SD card bus,
Touch screen bus and the Flash bus.
