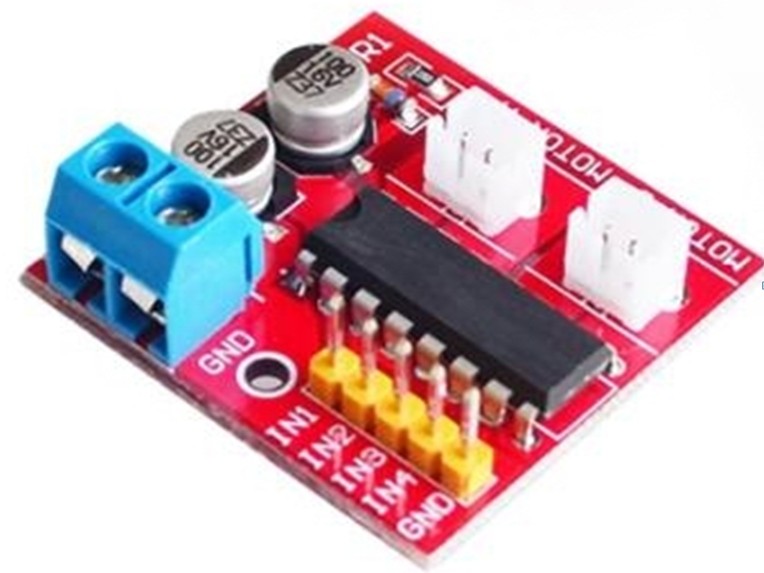

2.5A dual motor drive module forward and reverse PWM speed regulation double H bridge stepper motor super L298N

Description:



2.5A power-enhanced motor drive module with silicone wire, pin header, terminal. The power supply voltage is 2V~10V, which can drive two DC motors or one 4-wire 2-phase stepping motor at the same time. It can realize the function of forward and reverse and speed regulation, with thermal protection and automatic recovery.



1. Two-way H-bridge motor drive, can drive two DC motors or one 4-wire two-phase stepper motor at the same time

2. Module supply voltage 2V-10V

3. Signal input voltage is 1.8-7V

4. Single working current 2.5A, low standby current (less than 0.1uA)

5. Built-in anti-common state conduction circuit, when the input terminal is suspended, the motor will not malfunction

6. Built-in overheat protection circuit (TSD) with hysteresis effect, no need to worry about motor stall

7. Product size: 31 x 32 x 5mm (length, width and height), small size, suitable for assembly and vehicle

8. Mounting hole diameter: 2 mm.

9. Weight: 11g
