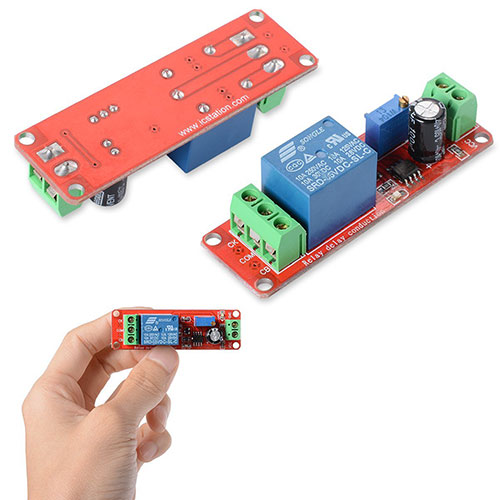

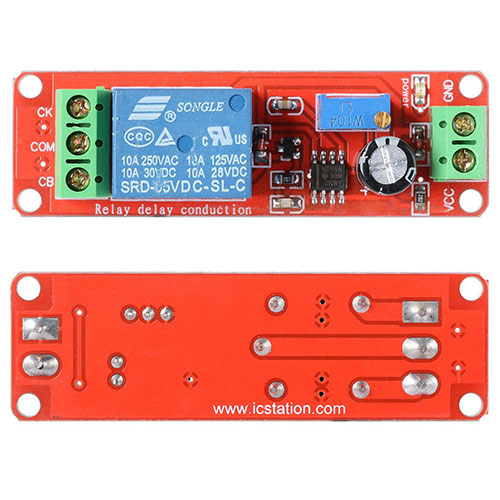

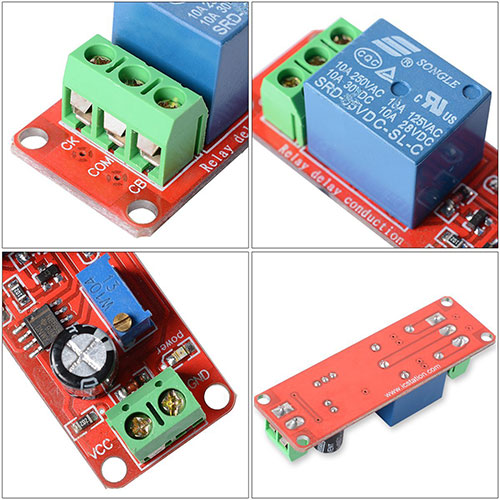

5V Delay Timer Monostable Switch Relay Module NE555

5V Delay Timer Monostable Switch Relay Module NE555

product description This is a 5V conduction delay relay module This is a high-quality, delayed-on module that uses a high-performance, timed CPU design. Power LED and switch trigger time indication LED; Output can be connected to AC 250V 10A DC 30V 10A load; There is a timing potentiometer adjustment time, the default can be adjusted from 0 to 10 seconds, or by changing the capacitance adjustment time Product Specifications: The module is based on: NE555 chip. Delay module: delay connection module Input voltage: DC12V Control voltage: AC 0 ~ 250V / max. 10A, DC 0 ~ 30V / maximum. 10A Operating voltage: 12 VDC; (otherwise 5V optional) maximum. Load: 2200W Main chip (NE555) Features: Time from microseconds to long time Simple circuit design Accurate pulse generation / timing, Adjustable duty cycle Numerous applications and sources of information Package Included: DC 12V delay relay shielded timer switch adjustable module 0 to 10 seconds
