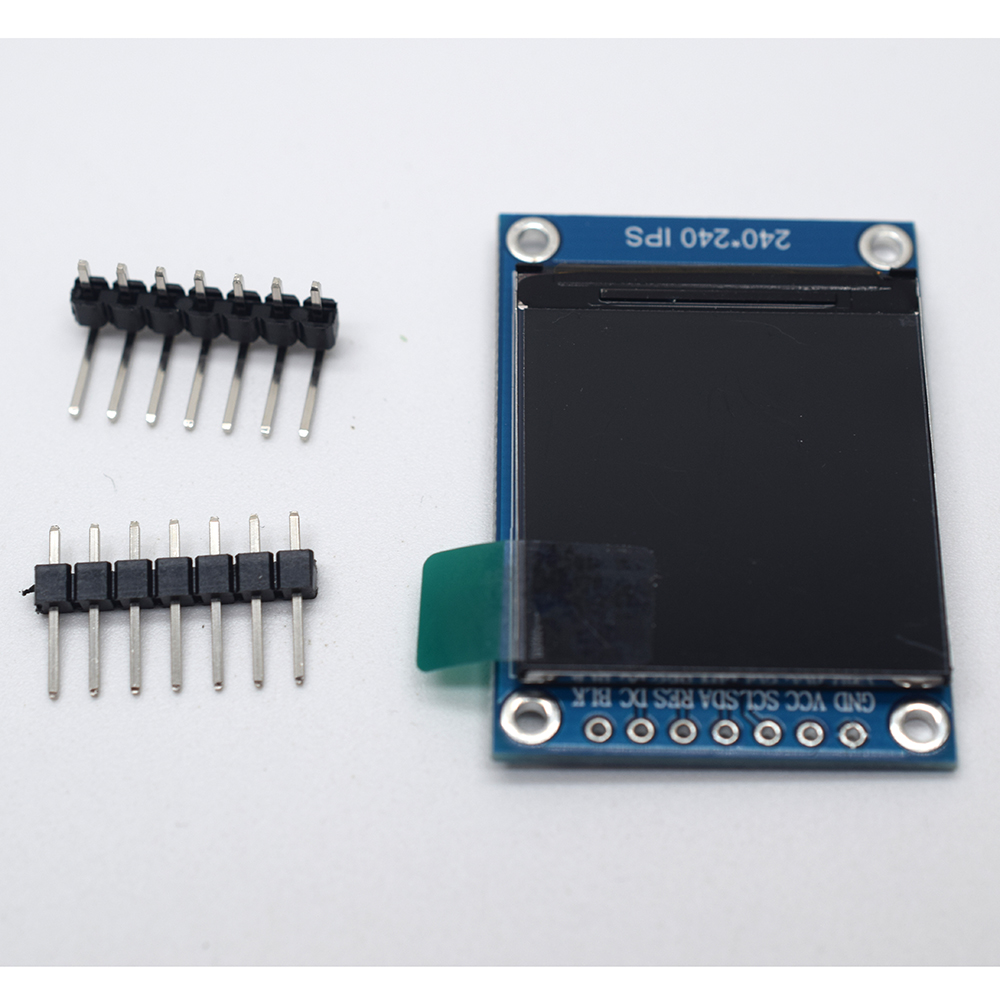

1.3 inch TFT OLED IPS LCD screen st7735 7pins 240*240
Feature:
Display Size： 1.3 inch
Material ： HD IPS color screen, the color is more vivid than ordinary TFT LCD
Resolution： 240*240 display, the direction can be adjusted, horizontal and vertical
Control chip：ST7735
Display area： 23.4x23.4mm
Physical size： 27.78x39.22mm
Interface type： 4-wire SPI interface
Number of pins： 7PIN
Viewing direction ：Full view
Working temperature： -20°C~70°C
Interface definition:
GND： Power ground
VCC： Power 3.3+
SCL： SPI clock line
SDA： SPI data line
RES： Reset
DC： Data/command selection foot
BLK： Backlight control, the default can be left floating, low level to turn off the backlight.
