CSR8635 Bluetooth Module Module 4.0 Bluetooth Stereo Audio Bluetooth Receiver Speaker Module

Brief description:

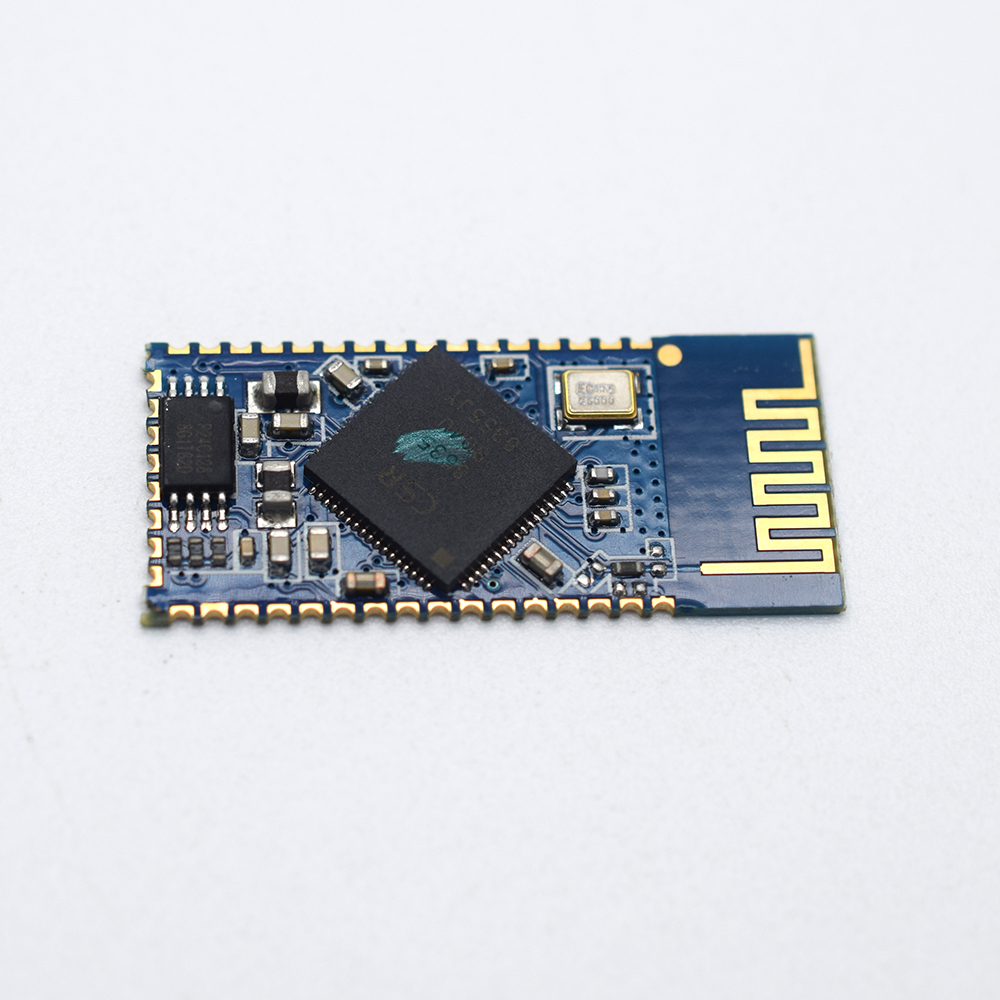

The BT835 is a Bluetooth module based on the CSR BC8 chip BC8635. It integrates almost all Bluetooth peripheral components and optimizes the RF and audio performance of the module, providing an easy-to-use solution for Bluetooth product design. Mainly targeted at Bluetooth stereo applications, such as Bluetooth speakers, Bluetooth car kits, Bluetooth headsets and more.

Size:28.4*13mm

  Features:

  High integration, cost-effective, low power consumption

  Support A2DP, AVRCP, HSP, HFP and other protocol frameworks

  Compliant with Bluetooth v4.0 specification

  Highly replaceable, fully compatible with the Bluetooth modules of our other Bluetooth chips, no need to change the design to directly replace

  3/5 button inputs (switching / pairing / answering / hanging, play / pause, volume +, volume -, previous song, next song)

  Echo cancellation, environmental noise elimination, EQ adjustment sound effects, etc. can be realized by using the built-in DSP of the chip.

  Module own antenna, good RF distance and consistency

  128K EEPROM

  USB sound card function

  AUX-IN input switching function

Application areas:

  Stereo Bluetooth headset

  Stereo body bluetooth speaker

  Bluetooth car handsfree
