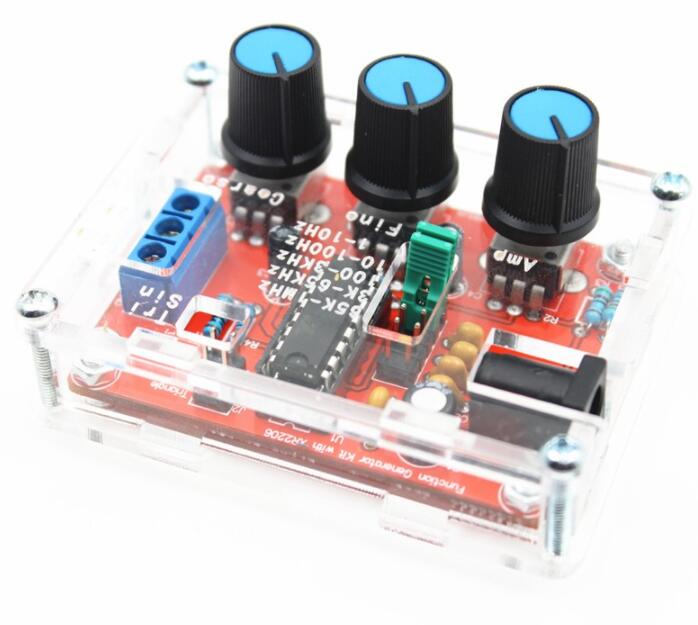

Circuit characteristics:
Can generate sine wave, triangle wave, square wave
Frequency can be from 1HZ-1MHZ
Adjustable frequency and amplitude;
Five-digit precision resolution;
The frequency adjustment has coarse and fine adjustment;
Wide power supply range, can use external power supply 9-12V or 9V battery;

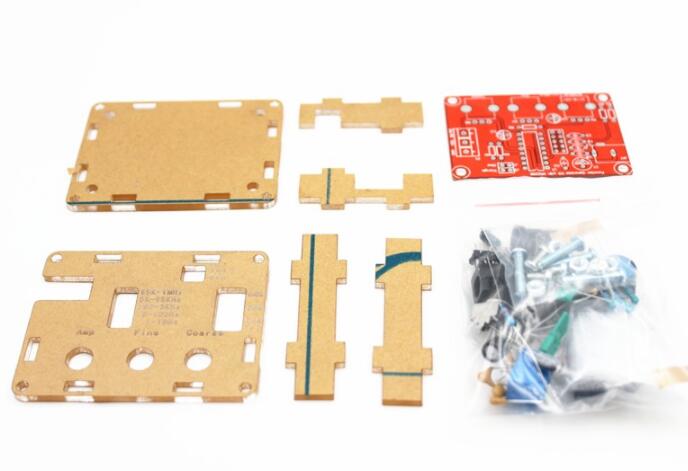

All in-line components, few components, simple installation and debugging.
Technical Specifications:
Voltage Supply: 9-12V DC Input
Waveforms: Square, Sine & Triangle
Impedance: 600 Ohm + 10%
Frequency: 1Hz - 1MHz
SINE WAVE
? Amplitude: 0 - 3V at 9V DC input
? Distortion: Less than 1% (at 1kHz)
? Flatness: +0.05dB 1Hz - 100kHz
SQUARE WAVE
? Amplitude: 8V (no load) at 9V DC input
? Rise Time: Less than 50ns (at 1kHz)
? Fall Time: Less than 30ns (at 1kHz)
? Symmetry: Less than 5% (at 1kHz)
TRIANGLE WAVE
? Amplitude: 0 - 3V at 9V DC input
? Linearity: Less than 1% (up to 100kHz) 10mA
