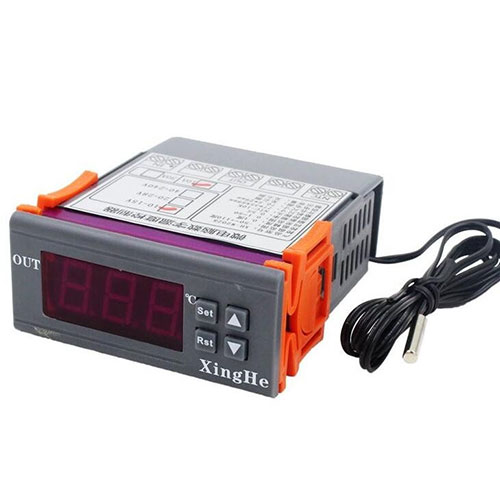

XH-W2028 refrigerator cabinet industrial digital temperature controller

1,Fast use 1,Connect the power supply and the load according to the specification, and pay attention to the use of the pressure and the overload! 2,By setting mode, press Set 5 Seconds will show P0 According to the Set Enter into Heating mode/C Refrigeration mode 3,Can set the desired temperature, according to a Set Screen flicker Press the up and down key to set the required temperature directly.4,RstIs to confirm the key, long press this button to achieve the function of the switch 2, technical parameters Temperature control range:-50~110 rate of:-9.9~99.9 time 0 .1C Other temperature segments 1C Temperature measurement accuracy:0.2% FS Temperature control precision:0.1C Refresh rate:0.5 S Input power:24V 220V 12V Optional Measurement input:NTC(B3950=10K 0.5%)1 Anti water meter sensor Output type: output switch, maximum capacity 10A Environmental requirements:-30~60 Chumidity 20%-85% Overall size:77*35*88mm Opening size:70.5*29mm 3.parameter function description Long press Set 5S econds to enter the internal parameter settings, press up and down switch P0... P8...Press Rst Confirm return
