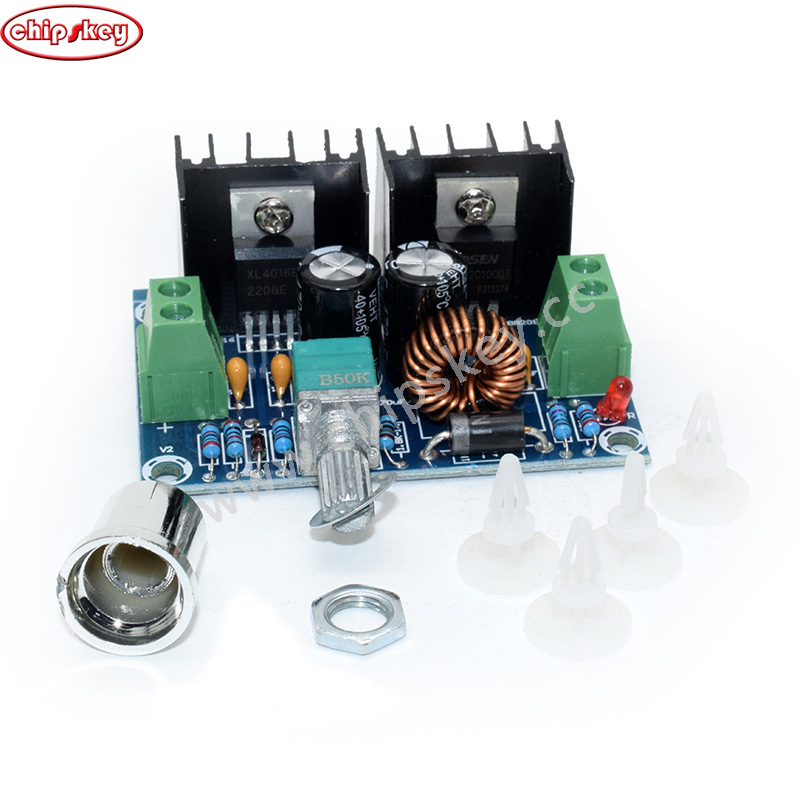

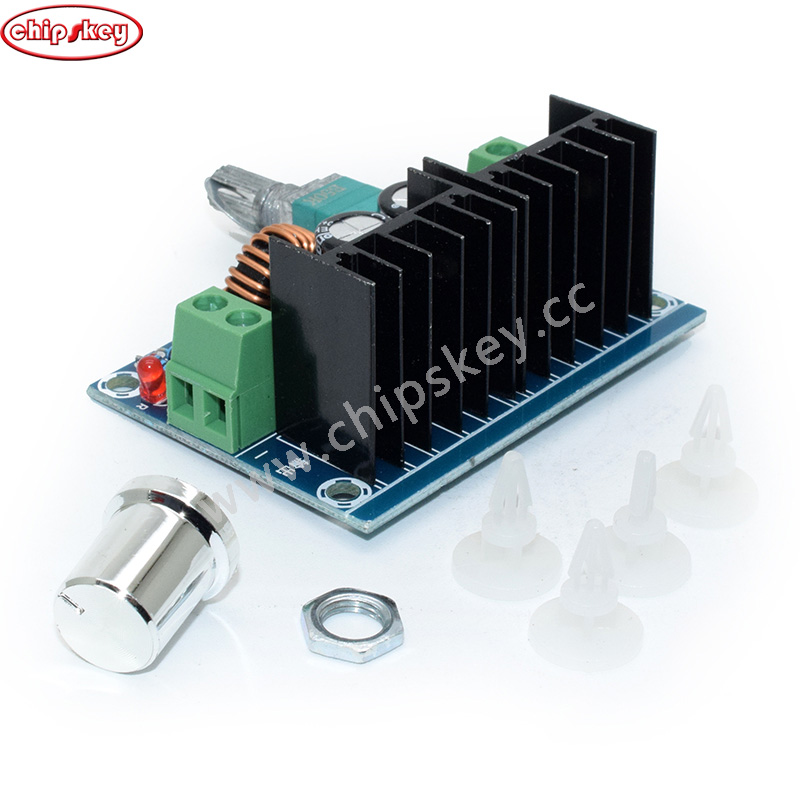

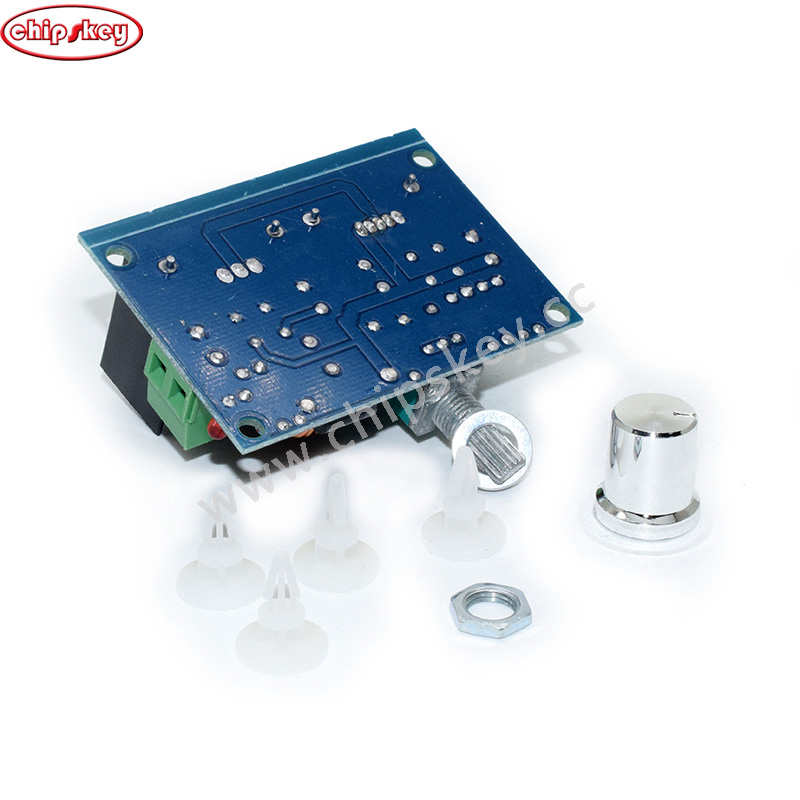

XH-M401 DC-DC XL4016E1 Voltage Regulator DC 4-40V to 1.25-36V 8A Buck Converter

product description: The product uses XL4016 switching regulator chip, with dual rectifier MBR10200, the maximum input up to 1.25-36V, 40V output continuously adjustable Product parameters: Product Name: DC Regulator Adjustment mode: PWM modulation Input voltage: DC4-40V Output range: DC1.25-36V Maximum current: 8A Maximum power: 200W Conversion efficiency: 94% Switching frequency: 180KHz Appearance size: 61 * 41 * 27mm Product weight: 51g The maximum output current up to 8A. Use the fan! Recommended long-term work in 5A!
