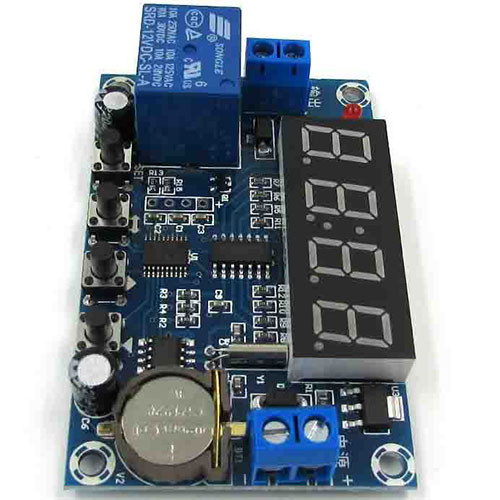

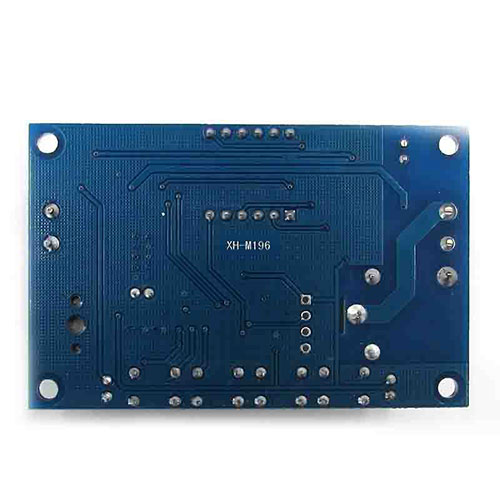

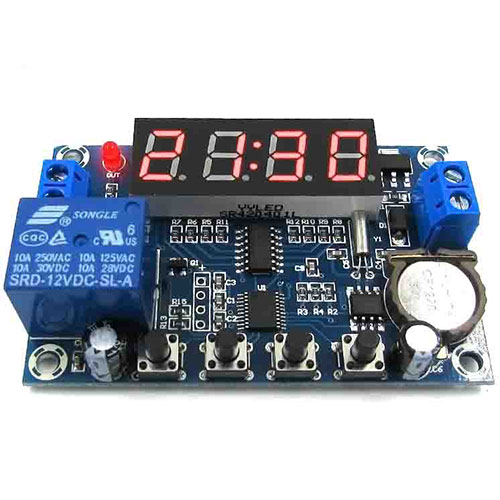

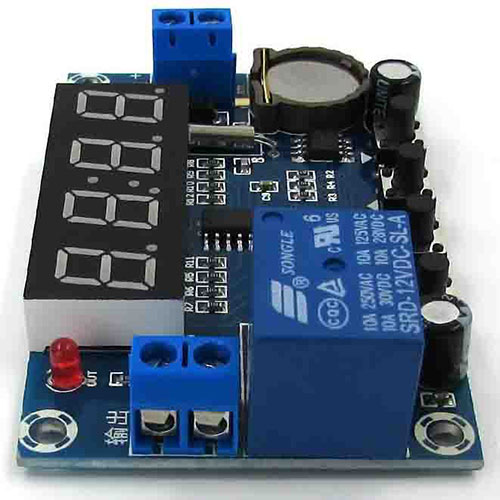

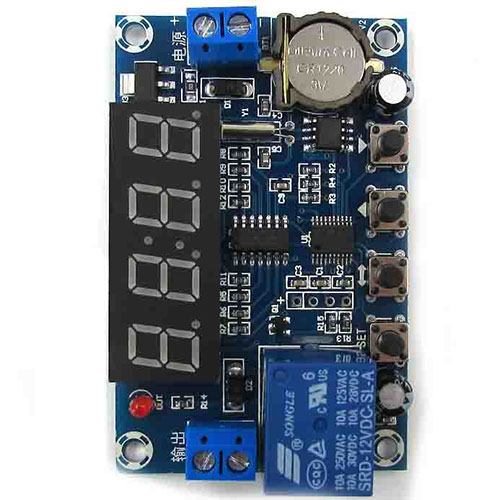

XH-M196 12V Clock Timer Controller 24H Timing Three Groups Time Memory Control Module

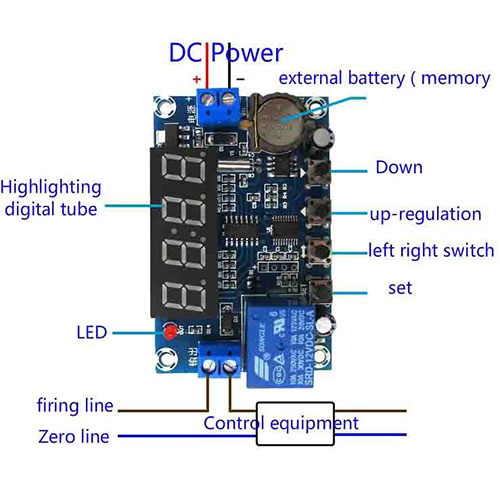

Title: Time control switch Working voltage: 12V Control current: 10A Timing error: <1S / 24H Number of switching units: three groups / day Memory: external battery (durable) Size: 70 * 45 * 17.5mm ? Setting method: code parameter list ? P0 set real-time P1-P2 Set the first time period P3-P4 set the second issue P5-P6 set the third issue P7 calibration time ? prompt: 1. In the installation process, no button automatically confirm 10 seconds back 2. Set the start time before the end time. If later than the end time setting, this setting will be invalid 3. This product is a set of three work day, if you only need to use a period of time, you can set the remaining period of time to start and stop the same value ? Case: How to enter the setup mode? Press SET button to enter setting mode ? Set the first time period ? I want to start cooking rice cooker at 17:00, 6:00 off, how to set? step: Press the SET key to enter the setting mode, display P0, press the raise key, display as P1, press the SET key P1 corresponding time flashing, switch key to select the appropriate time for a single number to adjust, down button to adjust the time after 17 clear, set to complete P1, press sET key, display P1, press increase key to select P2. Press sET button, set the time for 18:00 P2, the first paragraph of the setup is completed ? Features: Adjustable timing error Travel calibration more precise time control. Error correction can be set by P7, once set, long time no need to track settings, convenient and practical.
