XH-M194 time relay control module multi-channel timing module 5 way relay time control panel

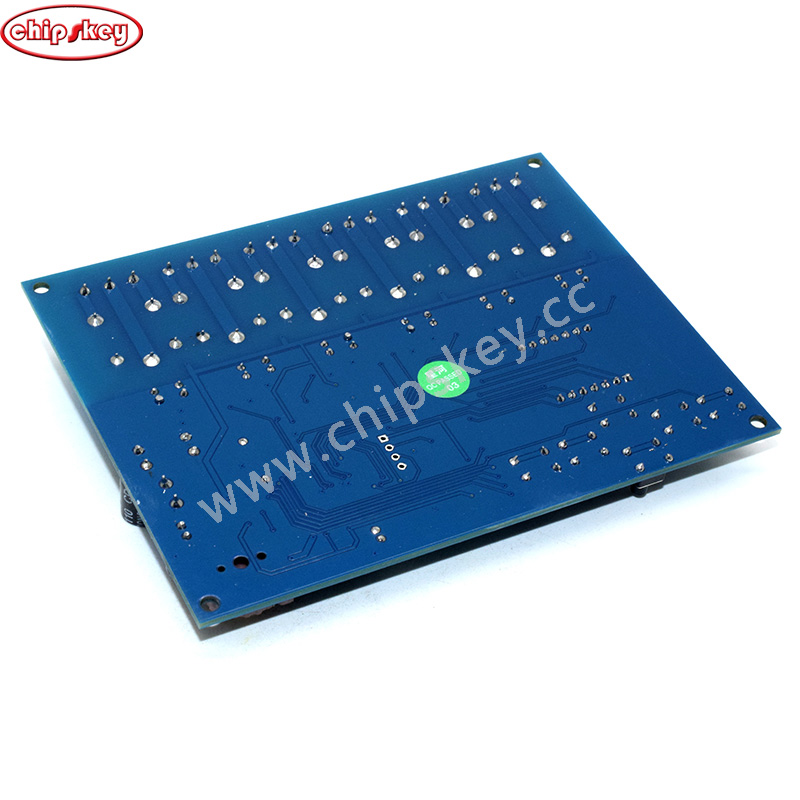

XH-M194 Time Relay Control Module Multi-channel timer module 5 relay time control board Motherboard power supply: AC / DC 12V Output Type: Relay output up to 250V10A Size: 120 * 93 * 19mm Screen size: 50 * 19mm Timing accuracy: 1 minute

One ,Performance summary

This module can control five independent relays and one general relay to output normally open or normally closed electric shock. Can be applied to each individually Set the working time of the relay. Within the set time range, the relay acts to output normally open and normally closed electric shock, so as to control the equipment.

This module can be widely used in motor control, water pump control, boiler control and other occasions. As long as it needs to be controlled during setting, it can be used almost!

Two, Product parameters

Product name; Five way timing

Relay output module

Main board power supply; ACDC 12V

Output type; Relay output max250v10a

Appearance dimension; 120 * 93 * 19 installation empty diagonal 113 * 83mm

Screen size; 50*19

Timing accuracy; 1 minute

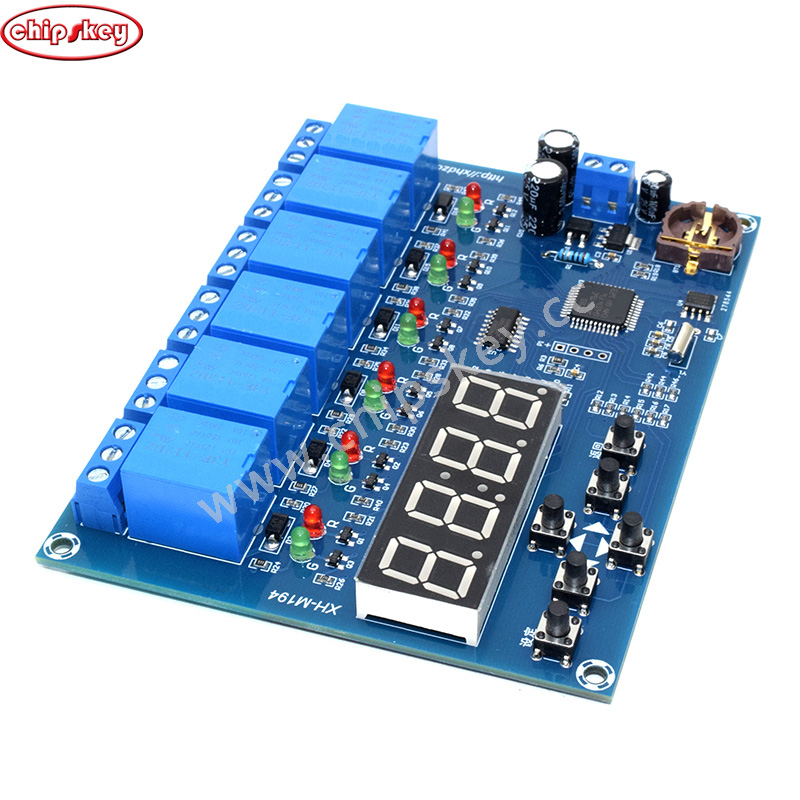

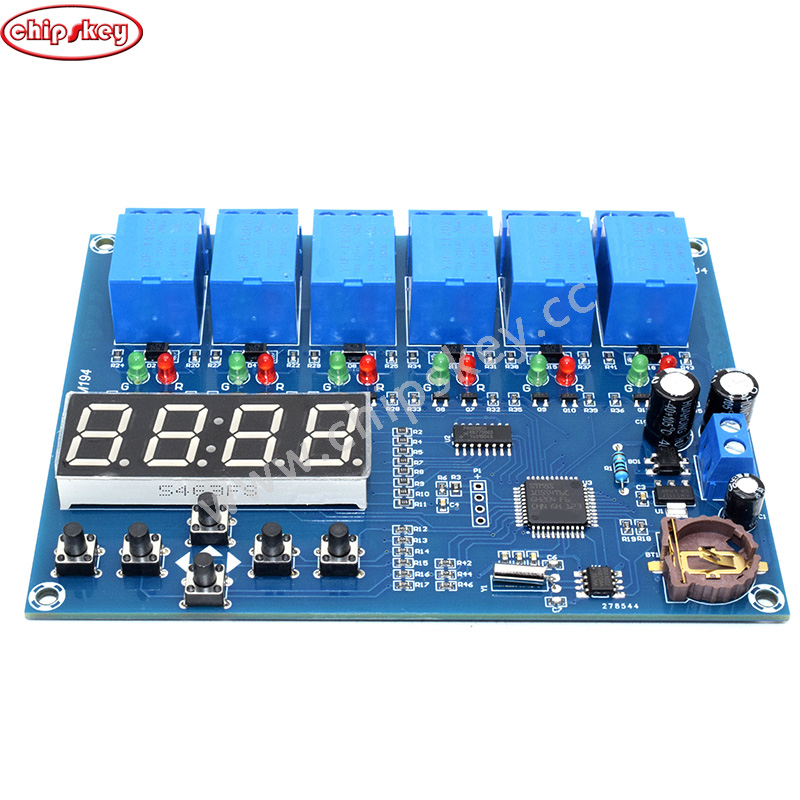

Three、 Key and indicator description

red light: Channel time control mode closing indicator

Green light: Channel time control mode on indicator

Set key: Press once to enter the menu p001-p007

Return key: Press once to return to the previous menu

Up key: Increase the current display value, set the time, and the menu is valid

Press the down key: Decrease the current display value, set the time, and it is effective when the menu is displayed

Left button: Move left, the set time is valid

Right click: Move right, the set time is valid

Four、 Internal setting description

0f / 0ff: open / close the corresponding channel (i.e. p1-p5)

H1-h2: relay on time / relay off time

1. Enter the menu: press the "set" key once to enter the main menu p001-p007

2. Turn on the channel switch: when any value of p001-p007 is displayed on the panel, press the set key once,The internal setting of p01-p007 is entered. At this time, press the up and down keys to set to 0ff or on.(set to on, that is, turn on the switch of the corresponding channel)

3. Set the on and off time: when the TV is 0n, press the set key once, and the panel will display H1(press the up key to change to H2), and press the set key again to set the time of H1, that isElectric appliance on time. After setting H1, set H2 (relay off time)

4. P001-p005 is 0ff by default. If the corresponding relay needs to be turned on, it is now changed to 0n and thenSetting h1-h2

5. Restore factory settings: press and hold down the up and down keys at the same time to power up the main board, perform system self-test, and perform digital ,The tube is displayed from 0000-9999, and the 6 groups of indicator lights are lit from the left in turn, accompanied by each group of relaysSound absorption. Thus, the factory settings are restored.

Six、 Usage:
