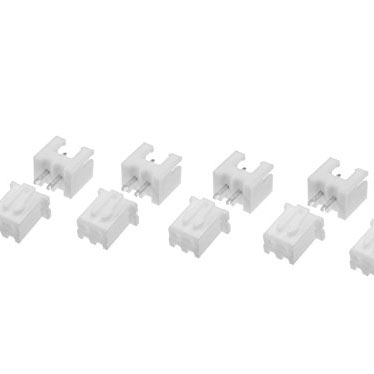

XH2.54-2P 2.54 Terminal Socket 5000pcs/Bag

XH2.54 2P with connector， plug + straight + terminal of a needle holder (including plug 10PCS, 10PCS straight needle holder, 20PCS terminals) Pitch: 2.5mm.

Line Number: 2P

Applicable wire: AWG # 30 ~ # 22

Applicable print thickness: 1.6mm

Current Rating: 3A AC / DC

Rated voltage: 250V AC / DC

Withstanding Voltage: 1000V/min

Contact resistance: <=0.02ohm

Insulation resistance: >=1000Mohm

Operating temperature: -25~+85'C

Material:

Hole Block: Nylon (PA66) UL94V-2 (0)

HEADER: Nylon (PA66) UL94V-2 (0)
