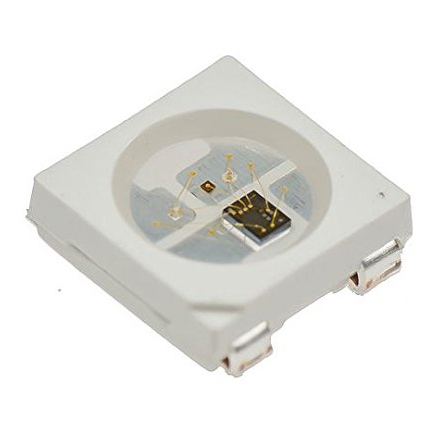

WS2812B,4Pin,5050 SMD RGB LED

Product description
Features and Benefits
l Intelligent reverse connect protection, the power supply reverse connection does not damage the IC.
l The control circuit and the LED share the only power source.
l Control circuit and RGB chip are integrated in a package of 5050 components, form a complete control of pixel point.
l Built-in signal reshaping circuit, after wave reshaping to the next driver, ensure wave-form distortion not accumulate.
l Built-in electric reset circuit and power lost reset circuit.
l Each pixel of the three primary color can achieve 256 brightness display, completed 16777216 color full color display, and scan frequency not less than 400Hz/s.
l Cascading port transmission signal by single line.
l Any two point the distance more than 5m transmission signal without any increase circuit.
l When the refresh rate is 30fps, cascade number are not less than1024 points.
l Send data at speeds of 800Kbps.
l The color of the light were highly consistent, cost-effective..
Applications
l Full-color module, Full color soft lights a lamp strip.
l LED decorative lighting, Indoor/outdoor LED video irregular screen.
